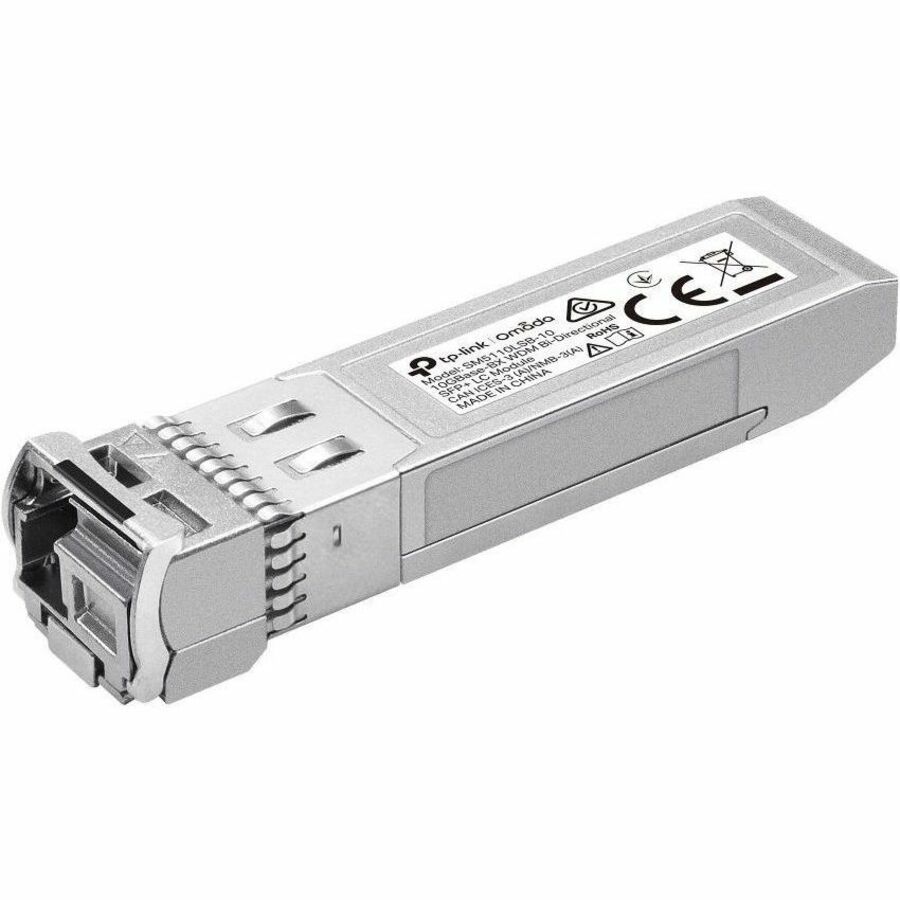

TP-Link Omada 10GBase-BX WDM Bi-Directional SFP+ LC Module
For Data Networking, Optical Network - 1 x LC/UPC 10GBase-BX BiDi Simplex Network - Optical Fiber - 9/125 µm - 1270 nm, 1370 nm Wavelength - Single-mode - 10 Gigabit Ethernet - 10GBase-BX BiDi - 10.31 Gbit/s - 10 km (6.21 Mile) Maximum Distance - Hot-swappable, Hot-pluggable
$50.99
On back-order, will ship once in-stock
- All Locations: (0+)
General Information
| Manufacturer | TP-LINK Technologies Co., Ltd |
| Manufacturer Part Number | SM5110LSB-10 |
| Brand Name | TP-Link |
| Product Line | Omada |
| Product Model | SM5110LSB-10 |
| Product Name | Omada 10GBase-BX WDM Bi-Directional SFP+ LC Module |
| Marketing Information | What This Product Does The SM5110LSB-10 is designed to extend transmission distance up to 10km with a maximum rate of 10Gbps. It is a single-mode SFP+ transceiver that supports bi-directional data transmission, which is cost-saving. |
| Product Type | SFP+ |
Technical Information
| Application/Usage |
|
| Features | Digital Diagnostics Monitoring Interface (DDMI) |
Interfaces/Ports
| Total Number of Ports | 1 |
| Connector Type | LC/UPC |
| Interfaces/Ports Details | 1 x LC/UPC 10GBase-BX BiDi Simplex Network |
Media & Performance
| Media Type Supported | Optical Fiber |
| Fiber Optic Cable Core/Cladding Specification | 9/125 µm |
| Fiber Optic Cable Wavelength |
|
| Fiber Mode Supported | Single-mode |
| Ethernet Technology | 10 Gigabit Ethernet |
| Network Technology | 10GBase-BX BiDi |
| Maximum Distance Supported | 10 km (6.21 Mile) |
| Maximum Data Transfer Rate | 10.31 Gbit/s |
Environmental Conditions
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Operating Temperature | 158°F (70°C) |
Physical Characteristics
| Form Factor |
|
| Height | 0.47" (11.94 mm) |
| Width | 2.24" (56.90 mm) |
| Depth | 0.55" (13.97 mm) |
Miscellaneous
| Compatibility | MSA Compliant TP-LINK Switches:
|
| Country of Origin | China |
| Environmental Compliance |
|
| Condition | No |
| UPC | 0810142821674 |
