Tripp Lite series KVM Extender with VGA and USB Connections, Up to 330 ft.

Part No. B013-330-USB

by Eaton Corporation

Tripp Lite series KVM Extender with VGA and USB Connections, Up to 330 ft.

330 ft (100584 mm) Range - 1920 x 1200 Maximum Video Resolution - 2 x Network (RJ-45) - 6 x USB - 4 x VGA - 240 V AC Input Voltage - For Windows, Mac

Part No. B013-330-USB

by Eaton Corporation

$600.99
General Information
ManufacturerEaton Corporation
Manufacturer Part NumberB013-330-USB
Brand NameTripp Lite series
Product ModelB013-330-USB
Product NameKVM Extender with VGA and USB Connections, Up to 330 ft.
Marketing Information

Extends Console up to 330 ft. from Computer, KVM or Server

This KVM extender lets you control a computer, server or KVM switch from up to 330 feet (100 meters) away. Just connect the included transmitter and receiver with a Cat5 UTP cable (sold separately). Console ports on both the transmitter and receiver allow local or remote control of the connected device. Plus, the receiver doubles as a two-port KVM, allowing the connection of a local computer.

Recommended for Small to Medium-Sized Businesses (SMBs)

Being able to extend VGA video and USB signals up to 330 feet is ideal in commercial office spaces where the computers are not close to your workstation, as well as SMB applications needed KVM switches without requiring an IP network for long-distance control. The B013-330-USB supports VGA video resolutions up to 1920 x 1200.

Pure Hardware Solution Is Easy to Install and Operate

The B013-330-USB supports all major operating systems, including Windows and macOS. All necessary cables are included as a convenient off-the-shelf package, making the KVM Extender simple to maintain. As a pure hardware solution, you don't have to worry about software/network conflicts. This KVM Extender is compatible with any computers using VGA and USB connections.


Packaged QuantityBox
Product TypeKVM Extender
Technical Information
Connectivity TechnologyWired
Maximum Operating Distance330 ft (100584 mm)
Device TypeKVM Extender
Video
Maximum Video Resolution1920 x 1200
Interfaces/Ports
Network (RJ-45)Yes
USBYes
VGAYes
Number of VGA Ports4
Number of Network (RJ-45) Ports2
Number of USB Ports6
Power Description
Input Voltage240 V AC
Input Voltage Range100-240V
Frequency
  • 50 Hz
  • 60 Hz
Physical Characteristics
Color FamilyBlack
Product ColorBlack
Transmitter Height1.02" (25.91 mm)
Transmitter Width5.15" (130.81 mm)
Transmitter Depth2.55" (64.77 mm)
Receiver Height1.02" (25.91 mm)
Receiver Width5.15" (130.81 mm)
Receiver Depth2.55" (64.77 mm)
Transmitter Weight (Approximate)10.22 oz (289.85 g)
Receiver Weight (Approximate)10.22 oz (289.85 g)
Miscellaneous

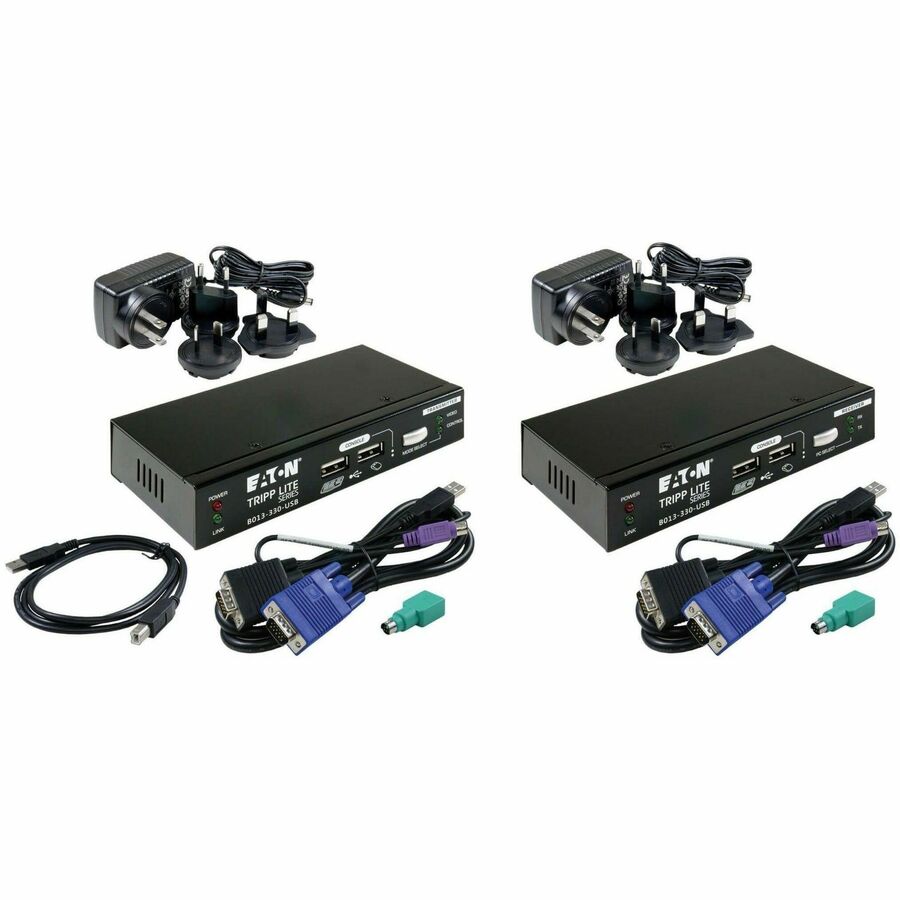

Package Contents
  • KVM Extender with VGA and USB Connections, Up to 330 ft.
  • (2) USB KVM combo cables
  • USB-A to USB-B upgrade cable (M/M)
  • (2) External power supplies (Input: 100-240V, 50/60 Hz, 0.6A; Output: 5V 2A) with 6 ft. (1.8 m) cord
  • (8) International plug adapters
  • Quick Start Guide


Platform Supported
  • Windows
  • Mac
Environmental Compliance
  • Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
  • Restriction of Hazardous Substances (RoHS)
  • Waste Electrical and Electronic Equipment Directive (WEEE)
Country of OriginChina
ConditionNo
UPC0037332288875
Warranty
Limited Warranty3 Year
