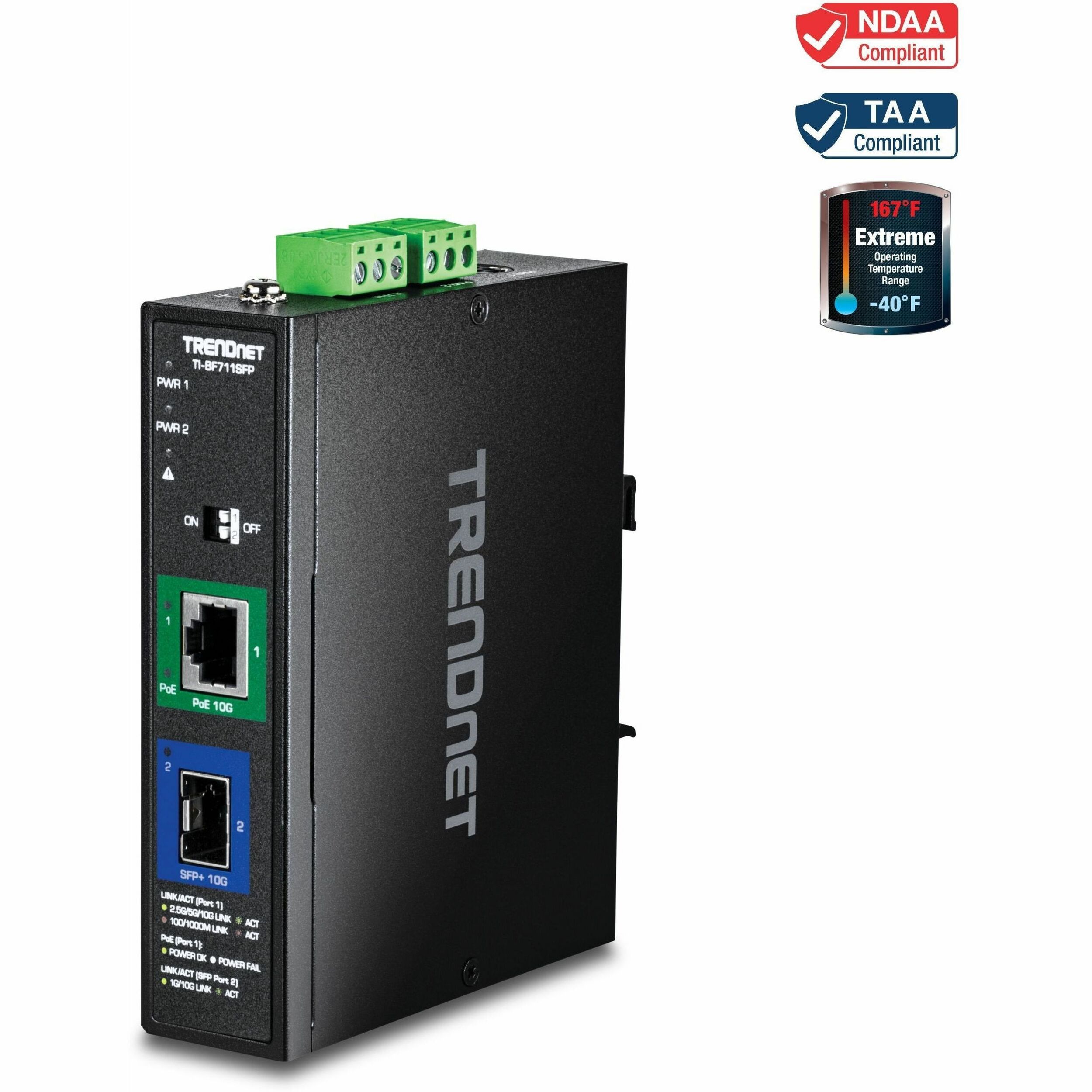

TRENDnet's Industrial 10G SFP+ to 10G PoE++ Media Converter, model TI-BF711SFP, converts a long-distance fiber connection to a copper connection, while providing power to PoE, PoE+, and PoE++ compliant devices, such as IP cameras, VoIP phones, and wireless access points. With an operating temperature range of -40°- 75° C (-40° - 167° F), the industrial PoE++ media converter features a hardened IP50 rated metal housing suitable for tough, industrial environments. The industrial PoE++ media converter's rugged design also provides protection from shock, freefall, and vibration.

Industrial Applications

Networks devices for manufacturing, general industrial, logistics, surveillance, transportation, and corporate applications.

PoE++ Output

Converts long-distance fiber to copper while providing power to PoE, PoE+, and PoE++ compliant devices, such as IP cameras and wireless APs.

Industrial Environments

Hardened IP50 converter for industrial networking environments within a - 40°- 75° C (-40° - 167° F) operating temperature range.

FEATURES | 10G PoE++ Port

One 10G PoE++ Ethernet port for high-power and high-speed devices

Link Fault Pass Through

Easily enable the LFPT (Link Fault Pass Through) feature on the industrial multi-mode media converter using the front panel DIP switch to identify a link fault to the remote LFPT enabled media converter

Surge Protection

Provides up to 6kV RJ45 Ethernet surge protection

Electro Magnetic Compliance

Complies with industrial EMS certifications ESD (IEC 61000-4-2): Contact: 6kV, Air: 8kV; EFT (IEC 61000-4-4): Power: 2kV, Signal: 1kV; Surge (IEC 61000-4-5): Power: 2kV, Signal: 2kV

10G SFP+ Port

One 10G SFP+ port for long distance applications

Dust Protected

This industrial switch is IP50 rated for ingress dust protection

Extreme Temperature Range

An extreme operating temperature range of -40° - 75° C (-40° - 167°F) allows for installations in industrial environments with intense hot or cold conditions

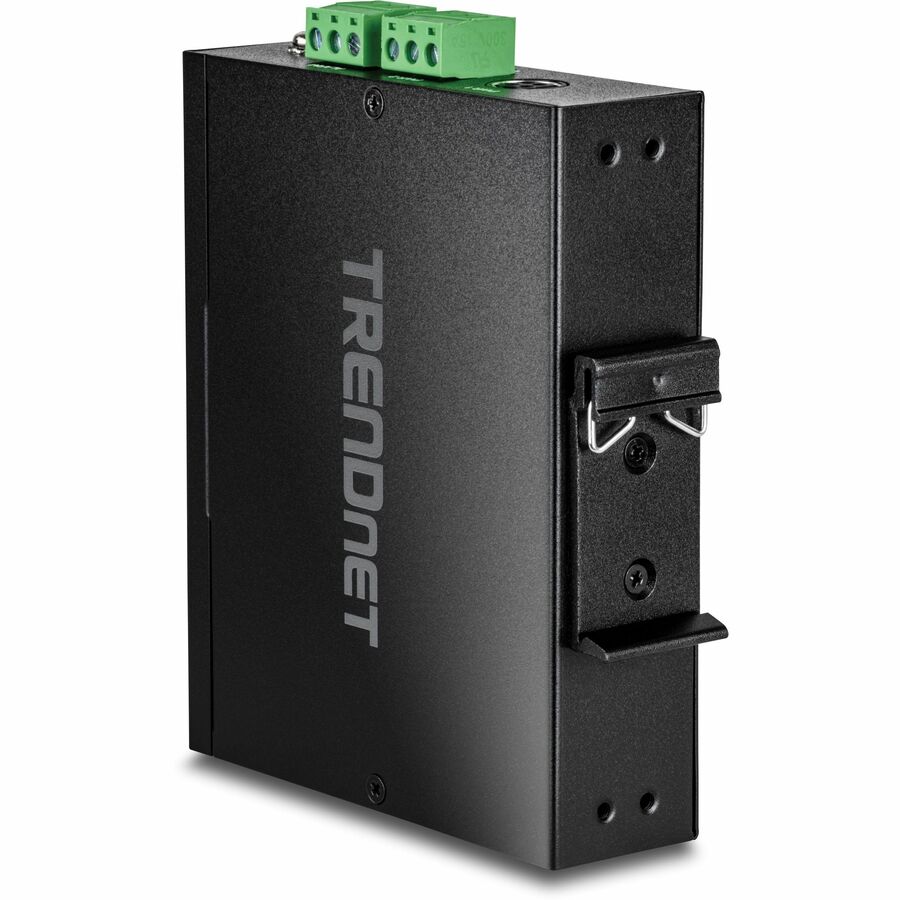

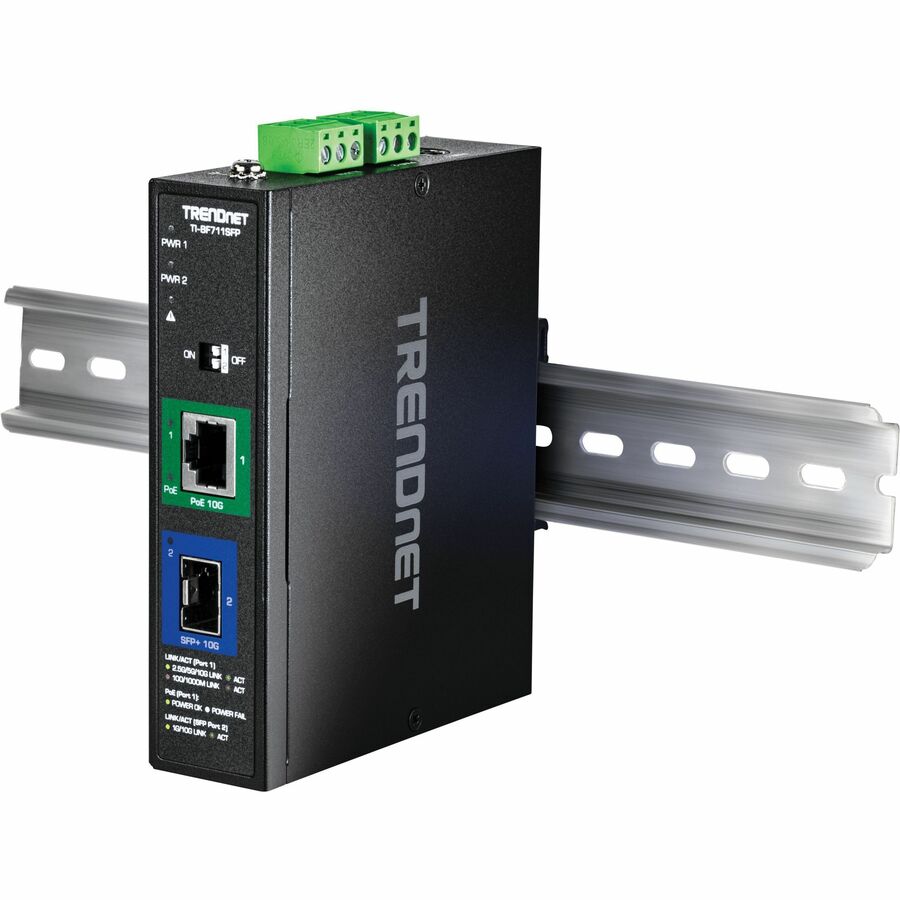

DIN-Rail / Wall Mounts

The rugged PoE+ switch includes DIN-Rail mount and wall mount hardware

Dip Switches

1: LFPT (Link Fault Pass Through) on/off (default ON) 2: EEE (Energy Efficient Ethernet, IEEE 802.3az) on/off (default OFF)

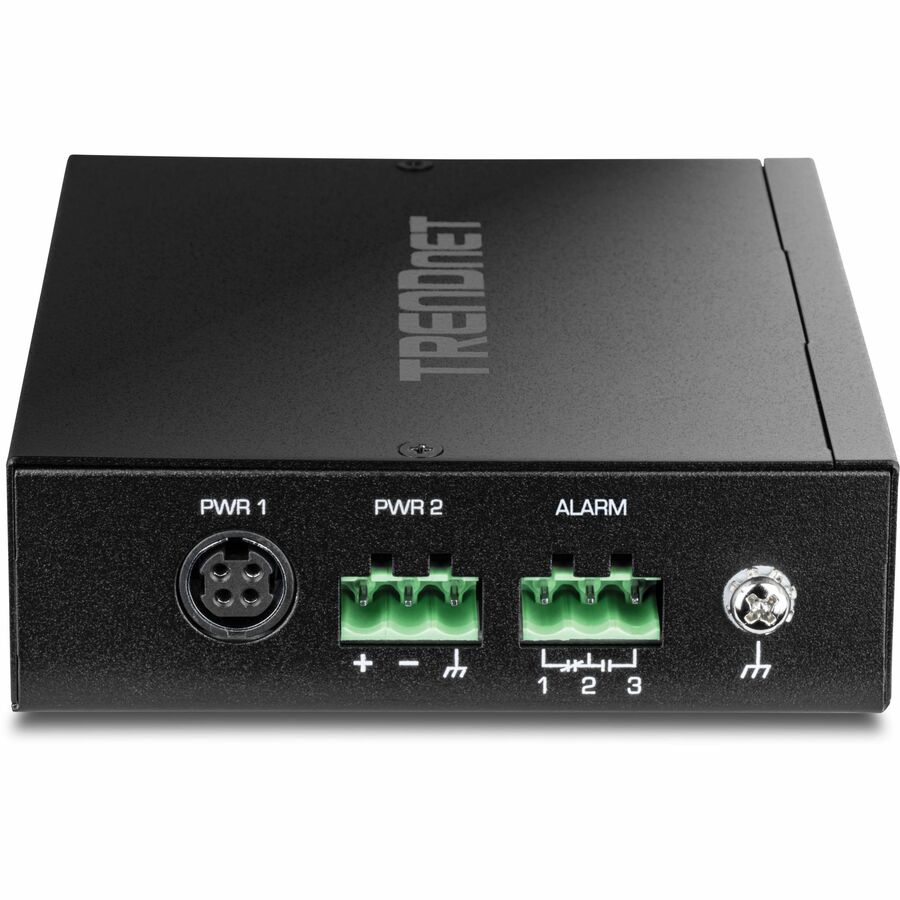

Fault Tolerance

Features an output alarm relay to indicate an input power failure

Shock and Vibration Resistant

Rated for shock (EN 60068-2-27), freefall (EN 60068-2-31), and vibration (EN 60068-2-6)

Grounding Point

The industrial unmanaged PoE+ switch features a grounding point to protect equipment from external electrical surges

• Twisted Pair
• Optical Fiber

• 10GBase-T
• 10GBase-X

• 50 Hz
• 60 Hz

• DIN Rail Mountable
• Wall Mountable

• Industrial 10G SFP+ Media Converter
• Removable Terminal Blocks
• DIN-Rail and Wall Mount kit

• Industrial
• Network
• Camera
• VoIP Phone
• Wireless Access Point

• IEEE 802.3
• IEEE 802.3u
• IEEE 802.3ab
• IEEE 802.3an
• IEEE 802.3ae
• IEEE 802.3bz
• IEEE 802.3x
• IEEE 802.3af
• IEEE 802.3at
• IEEE 802.3bt
• CE
• FCC
• LVD
• Shock (IEC 60068-2-27)
• Freefall (IEC 60068-2-31)
• Vibration (IEC 60068-2-6)
• IEC 61000-4-2
• IEC 61000-4-4
• IEC 61000-4-5
• NDAA

• Restriction of Hazardous Substances (RoHS)
• Waste Electrical and Electronic Equipment Directive (WEEE)
