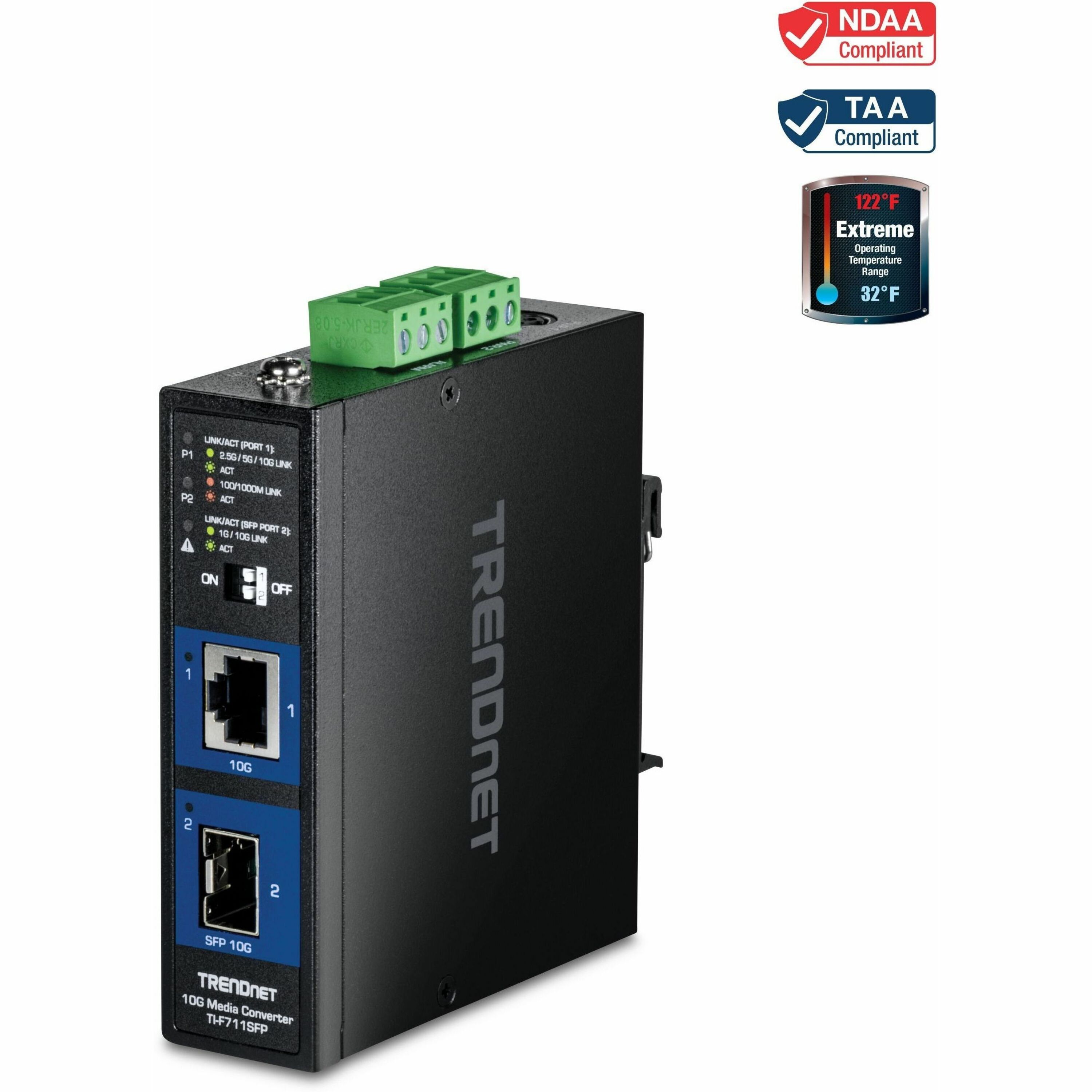

TRENDnet Industrial 10G SFP+ Media Converter

1 x Network (RJ-45) - 10 Gigabit Ethernet - 10GBase-T, 10GBase-X - 20 Gbit/s - 1 x Expansion Slots - SFP+ - 1 x SFP+ Slots - Power Adapter - DIN Rail Mountable, Wall Mountable

Part No. TI-F711SFP

by TRENDnet

$209.99

User Manual

Specifications
Options & Accessories (2)

General Information

Manufacturer	TRENDnet
Manufacturer Part Number	TI-F711SFP
Brand Name	TRENDnet
Product Name	Industrial 10G SFP+ Media Converter
Marketing Information	TRENDnet's Industrial 10G SFP+ Media Converter, model TI-F711SFP, is a reliable IP50-rated 10G SFP+ to 10G Ethernet media converter with hardened components rated for extreme industrial environments. Set 100Mbps to 10G Ethernet throughput speeds, toggle energy efficiency, and Link Fault Pass Through (LFPT) using the front panel DIP switches. This industrial media converter features 9 - 60V DC power input with overload current protection, and an alarm relay in case of power failure. (Power supply sold separately: TI-M6024 and 48VDC3000). DEVICE INTERFACE: 1 x 10G Ethernet Port (100Mbps/1G/2.5G/10G); 1 x 10G SFP+ Port (1G/10G); 3-Pin Power Terminal Block; 3-Pin Alarm Relay Terminal Block; LED Indicators; DIP Switch NDAA + TAA COMPLIANT: With NDAA and TAA compliant network products, you can plan and install the networking solutions that government customers demand today. (U.S. and Canada only) RELIABLE TECH SUPPORT: Our team of advisors, support and tech experts are English speaking, and available for all your needs during normal business hours. We take pride in being there for our customers. INDUSTRIAL HARDENED DESIGN: Equipped with a rugged IP50 rated housing, designed to withstand a high degree of vibration and shock, and operate within an extreme temperature range of -40° - 75° C (-40° - 167° F). POWER SUPPLY SOLD SEPARATELY: Dual 48V 9 - 60V DC power input with overload current protection. Compatible power supplies models: TI-M6024, 48VDC3000 (Sold Separately) SWITCH MODE TO CONVERTER MODE: This device can be set to be used in switch mode or converter mode. DIP SWITCHES: 1: Turns LFPT (Link Fault Pass Through) on/off 2: Converter mode / switch mode LINK FAULT PASS THROUGH: Easily enable the LFPT (Link Fault Pass Through) feature using the front panel DIP switch to identify a link fault to the remote LFPT enabled media converter SURGE PROTECTION: 6kV Ethernet surge protection DIN RAIL + WALL MOUNTS: The rugged media converter includes DIN-Rail mount and wall mount hardware
Product Type	Transceiver/Media Converter

Interfaces/Ports

Total Number of Ports	1
Network (RJ-45)	Yes
Number of Network (RJ-45) Ports	1

Media & Performance

Media Type Supported	Twisted Pair Optical Fiber
Maximum Data Transfer Rate	20 Gbit/s

I/O Expansions

Total Number of Expansion Slots	1
Expansion Slot Type	SFP+
Number of SFP+ Slots	1

Network & Communication

Ethernet Technology	10 Gigabit Ethernet
Network Technology	10GBase-T 10GBase-X

Power Description

Power Source	Power Adapter
Power Consumption	7.20 W
Plug/Connector Type	Terminal Block
Frequency	50 Hz 60 Hz

Physical Characteristics

Form Factor	DIN Rail Mountable Wall Mountable
Height	4.72" (120 mm)
Width	1.18" (30 mm)
Depth	3.86" (98 mm)
Weight (Approximate)	11.78 oz (334 g)

Miscellaneous

Package Contents	Industrial 10G SFP+ Media Converter Removable terminal blocks DIN-Rail / Wall Mount Kit
Application/Usage	Industrial Network
Certifications & Standards	IEEE 802.3 IEEE 802.3u IEEE 802.3ab IEEE 802.3bz IEEE 802.3an IEEE 802.3ae IEEE 802.3x IEEE 802.3az CE FCC LVD Shock (IEC 60068-2-27) Freefall (IEC 60068-2-31) Vibration (IEC 60068-2-6) IEC 61000-4-2 IEC 61000-4-4 IEC 61000-4-5 NDAA
Environmentally Friendly	Yes
Environmental Certification	China Environmental United Certification Center (CEC)
Environmental Compliance	Restriction of Hazardous Substances (RoHS) Waste Electrical and Electronic Equipment Directive (WEEE)
Country of Origin	Taiwan
TAA Compliant	Yes
Condition	No

Warranty

Limited Warranty	3 Year
