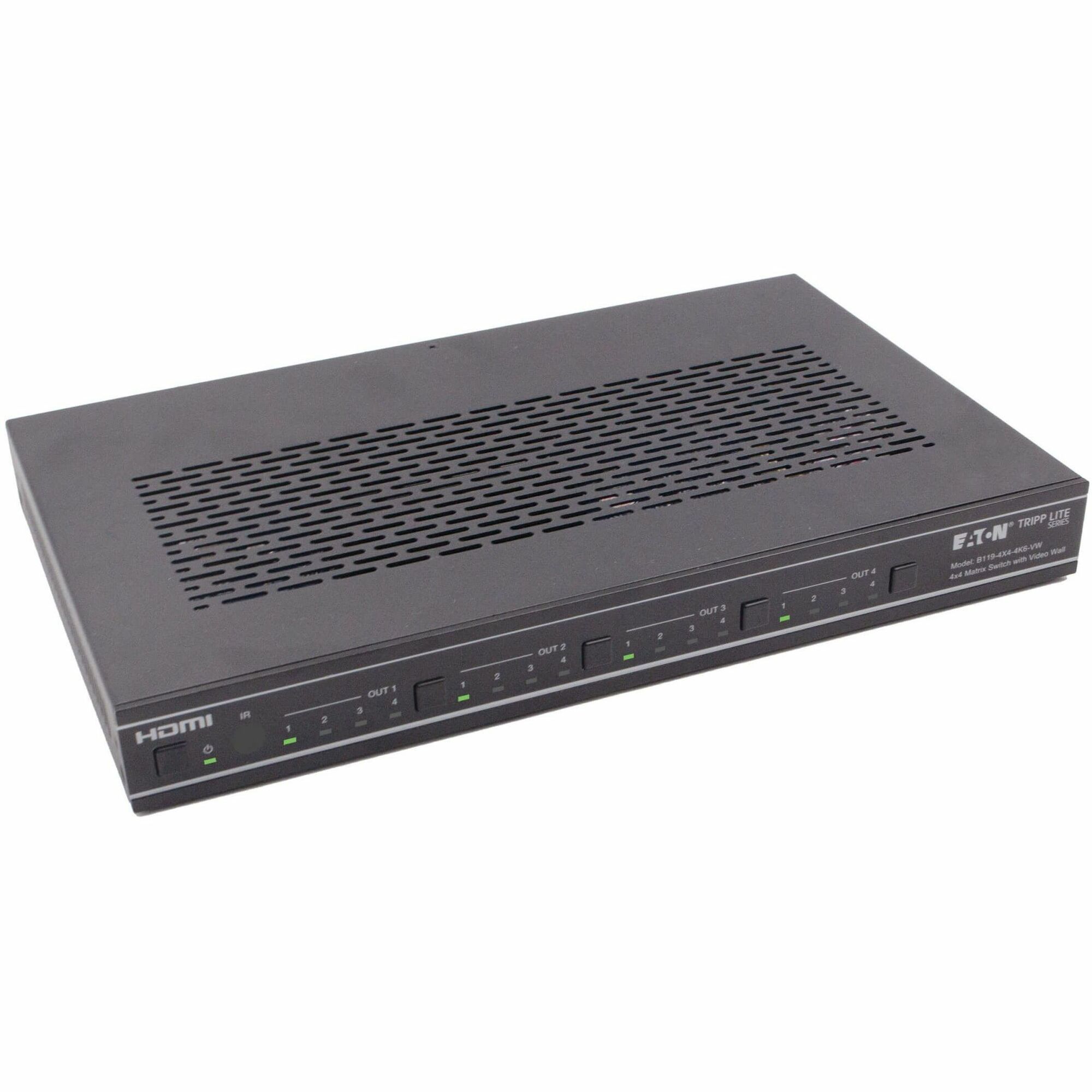

Tripp Lite series 4x4 HDMI Matrix Switch with Video Wall Controller - 4K 60 Hz, 4 HDMI Inputs, 4 HDMI Outputs, HDR, 4:4:4, Multi-Resolution Support
On back-order, will ship once in-stock
- All Locations: (0+)
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | B119-4X4-4K6-VW |
| Brand Name | Tripp Lite series |
| Product Model | B119-4X4-4K6-VW |
| Product Name | 4x4 HDMI Matrix Switch with Video Wall Controller - 4K 60 Hz, 4 HDMI Inputs, 4 HDMI Outputs, HDR, 4:4:4, Multi-Resolution Support |
| Marketing Information | Extends 4K Video in 2 Operational Modes: 4x4 Matrix and Video Wall This Matrix Switch is a multi-purpose high-speed video processing system that you can configure for two different output modes: 4x4 matrix (with seamless switching) and video wall. It features four HDMI inputs with resolution up to 4K at 60 Hz and four HDMI outputs to create 10 video wall modes: 2x2, 1x2-2, 1x2, 2x1-2, 2x1, 1x3, 1x4, 3x1, and 4x1. You can set display modes via front-panel buttons, the included IR remote, RS-232 commands or TCP/IP. Access the web GUI to visualize content shared over multiple displays. Transmits 4K Video with HDR and 4:4:4 Color The B119-4X4-4K6-VW supports Ultra HD 4K resolutions at 60 Hz with LPCM, Dolby Digital/Plus/EX and DTS audio. It supports HDR (High Dynamic Range), providing a wide range of vibrant colors with richer contrast, brighter whites and deeper blacks that pop on your 4K display. HDCP 2.2 encryption allows you to stream 4K content with no loss in resolution. This switch also supports uncompressed 4:4:4 chroma subsampling for top-level PC gaming or using your HDTV as a PC monitor. Multi-Resolution Support Allows Mixing and Matching of Displays of Different Resolutions Say you have a brand new 4K/60 Hz HDTV in the living room, but want to also connect your Blu-ray player or media server to the older 1080p TV in the kitchen and the 4K/30 Hz monitor in your home office. The B119-4X4-4K6-VW is backward compatible with 4K/30 Hz and 1080p resolutions via automatic switching, allowing each connected television to display video at its maximum resolution without affecting the other outputs. Plug-and-Play Operation for Quick Setup and Immediate Use The unit works right out of the box with no software required. Mounting hardware is included for installing the units on a wall, under a desk or in a 19-inch rack. Connect up to four 4K source devices to the HDMI inputs and up to four 4K displays to the HDMI outputs with user-supplied cables. The external power supply comes with four international plug adapters to ensure an AC connection anywhere. |
| Product Type | Audio/Video Switchbox |
| Connectivity Technology | Cable |
| Number of Input Devices Supported | 4 |
| Device Supported |
|
| Number of Displays Supported | 4 |
| Data Link Protocols | TCP/IP |
| Graphics Modes |
|
| Maximum Video Resolution | 3840 x 2160 |
| Scan Format | 1080p |
| HDMI In | Yes |
| HDMI Out | Yes |
| Connectivity (RJ-45) | Yes |
| Number of Connectivity (RJ-45) Ports | 1 |
| Number of HDMI Inputs | 4 |
| Number of HDMI Outputs | 4 |
| Form Factor |
|
| Height | 1.20" (30.48 mm) |
| Width | 10.60" (269.24 mm) |
| Depth | 6.50" (165.10 mm) |
| Package Contents |
|
| Application/Usage |
|
| Environmental Compliance |
|
| Country of Origin | China |
| Condition | No |
| UPC | 0037332291134 |
| Limited Warranty | 3 Year |
