Extend, Ensure, and Secure Your Network

FortiExtender indoor 5G/LTE gateways offer scalable, secure, and resilient connectivity for enterprise networks. Driven by Fortinet's unique approach of Secure Networking, FortiExtender allows organizations business continuity, improved network availability while securing connectivity with wired broadband and cellular networks

From secure point of sale (POS) systems, to factories, healthcare facilities, microbranches, and kiosks- FortiExtender provides reliable broadband access to the internet and extends the value of the Fortinet Security Fabric to support fluid business operations dependent on remote device connectivity.

Hardware and Interfaces | FortiExtender 511F

The FortiExtender 511F Interface offers an SFP port for fiber cabling deployments greater than 100 meters away from the FortiGate or network switch, as well as console and USB 2.0 ports for out of band management (OOB).

Hardware and Interfaces | FortiExtender 511G

The FortiExtender 511G Interface offers an SFP port for fiber cabling deployments greater than 100 meters away from the FortiGate or network switch, as well as console and USB 2.0 ports for out of band management (OOB).

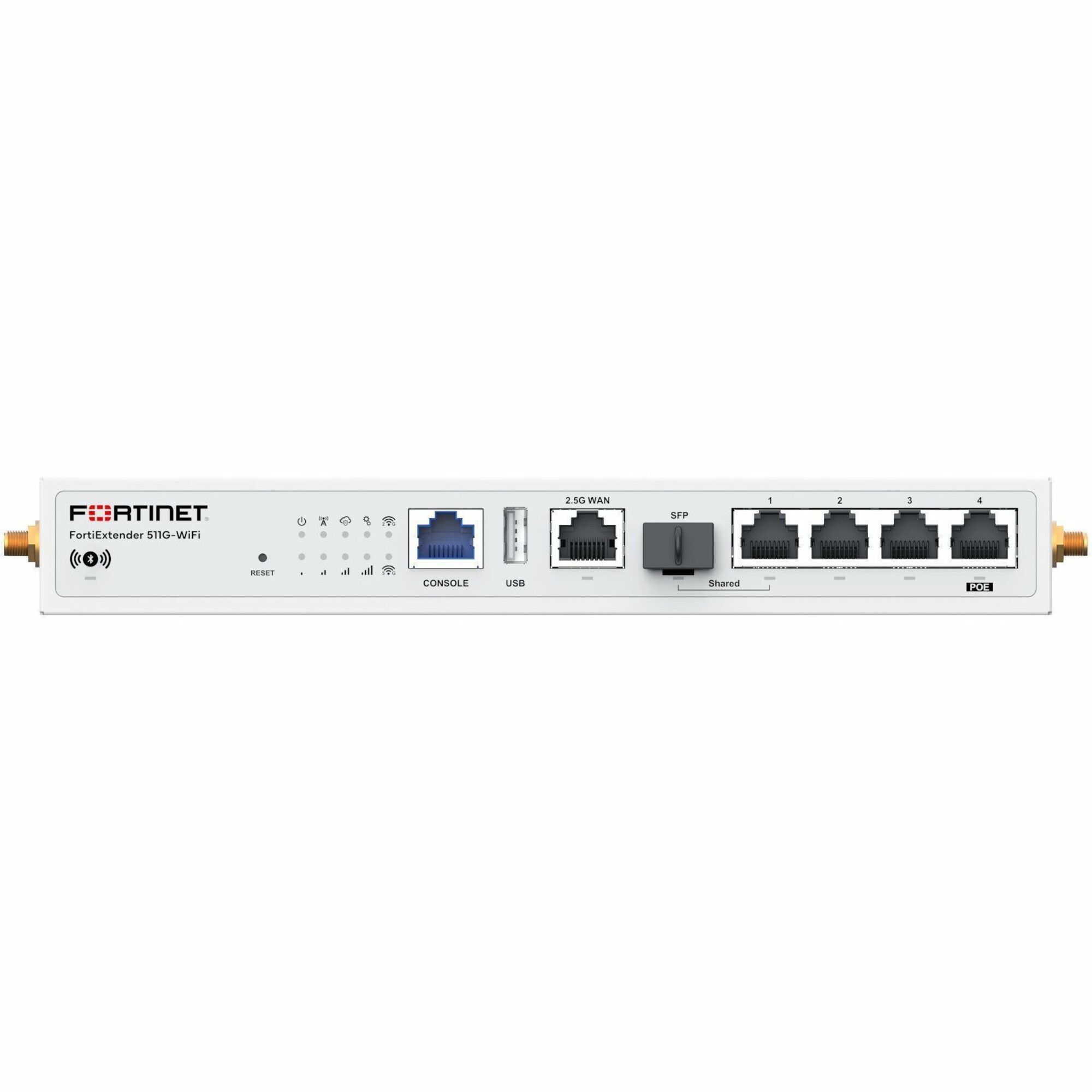

FortiExtender 511G-WiFi

The FortiExtender 511G-WiFi Interface offers an SFP port for fiber cabling deployments greater than 100 meters away from the FortiGate or network switch, as well as console and USB 2.0 ports for out of band management (OOB).

Features | Superior Management, Security, and Control

FortiExtender is a plug-and-play device. Once connected to a FortiGate, either directly or remotely over VxLAN, FortiExtender appears as a regular network interface in FortiOS management. IT administrators can manage the connection and implement advanced protection from FortiGuard, just like any other FortiGate interface.

Flexible Deployment for Optimal Signal Strength

FortiExtender devices removed the need for lengthy, expensive, and lossy antenna cables. FortiExtender utilizes Power over Ethernet (PoE) so you can run a high-quality Ethernet cable up to 100 meters away from the FortiGate or network switch where there is optimal 5G/LTE signal. Certain FortiExtender models also support SFP ports, so that you can deploy the device over 100 meters away from the FortiGate or network switch.

5G/LTE Wireless WAN

FortiExtender supports dual-SIM and dual-modem options, enabling up to four different ISPs for ultra-reliable connectivity. Dual-SIM models enable active/passive cellular for failover based on data plan, disconnects, signal strength, and link health, allowing you to balance connectivity quality and cost. Dual-Modem provides active/active cellular links for high-availability, traffic isolation, and load-balancing use cases. Failover configuration options for Dual-SIM FortiExtender include.

Wired WAN Connectivity

FortiExtender offers WAN connectivity options with an Ethernet WAN port, in addition to 5G/LTE Wireless WAN links. With this wired WAN port, you can connect a DSL, cable, or another modem for additional WAN connectivity. Load-balancing and failover options enable your FortiExtender to manage your WAN connections across several options to ensure optimal connectivity and cost.

• Ethernet
• Cellular

• HSPA+
• LTE
• UMTS
• WCDMA
• 5G NR

• Desktop
• Wall Mountable
• Vehicle Mount

• FCC Part 15B
• FCC Part 15C
• FCC Part 15E
• FCC Part 2.1091
• ICES-003
• RSS-247
• RSS-102
• UL/CSA 62368-1
• IEC/EN 62368-1
• EMC 2014/30/EU EN 55032
• EMC 2014/30/EU EN 55035
• EMC 2014/30/EU EN 61000-3-2/-3-3
• EMC 2014/30/EU EN 301 489-1/-17/-19/-52
• RED 2014/53/EU EN 300 328
• RED 2014/53/EU EN 301 893
• RED 2014/53/EU EN 300 440
• RED 2014/53/EU EN 303 413
• RED 2014/53/EU EN 301 908-1/-2/-13/-25
• RED 2014/53/EU EN IEC 62311
• LVD 2014/35/EU (EN 62368-1)
