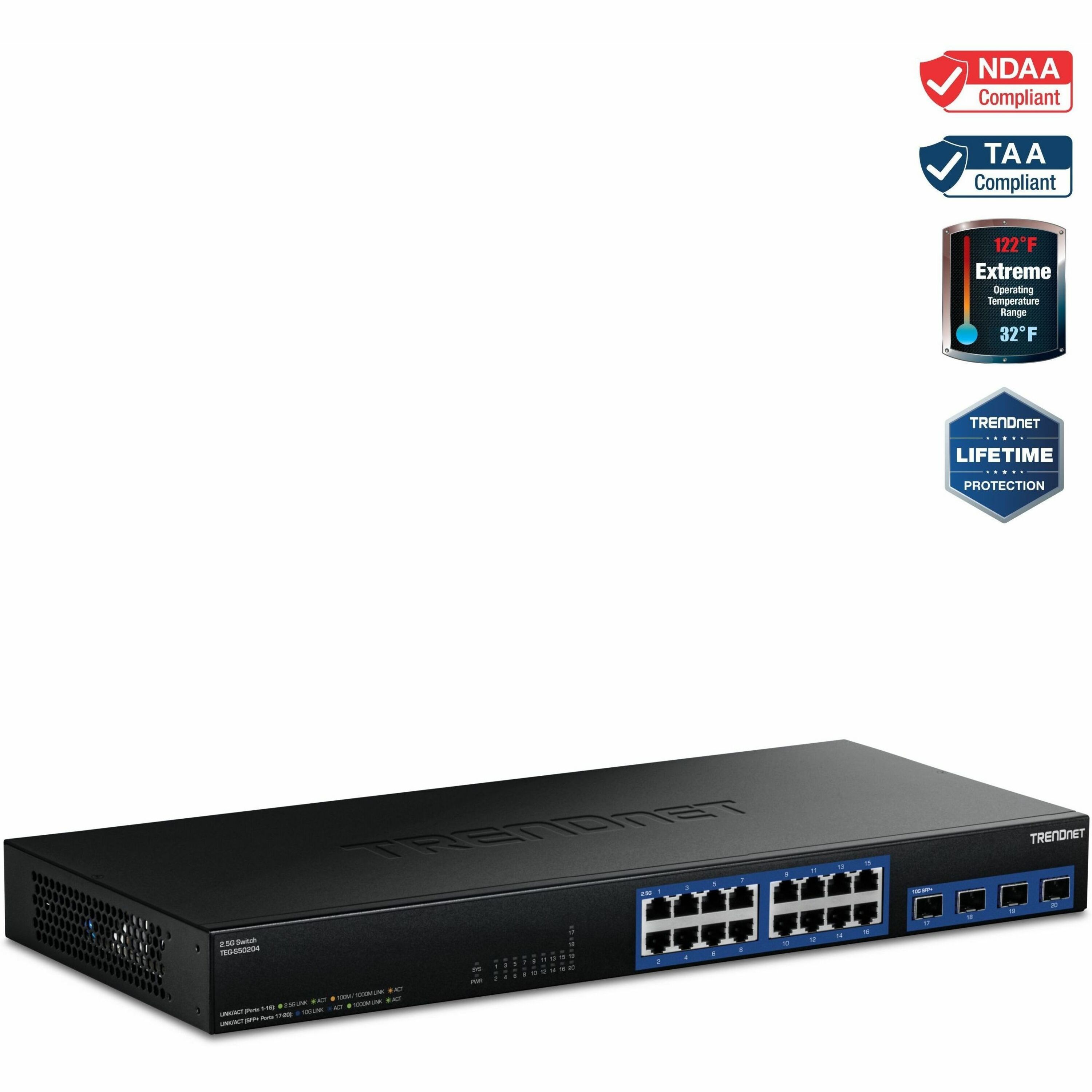

TRENDnet 20-Port 2.5G Switch with 10G SFP+ Ports

16 Ports - 2.5 Gigabit Ethernet, 10 Gigabit Ethernet - 2.5GBase-T, 10GBase-X - 2 Layer Supported - 38.88 W Power Consumption - Twisted Pair, Optical Fiber - 1U - Rack-mountable, Wall Mountable - Lifetime Limited Warranty

Part No. TEG-S50204

by TRENDnet

$429.99

Specifications

General Information

Manufacturer	TRENDnet
Manufacturer Part Number	TEG-S50204
Brand Name	TRENDnet
Product Model	TEG-S50204
Product Name	20-Port 2.5G Switch with 10G SFP+ Ports
Marketing Information	Expand your network's bandwidth and reduce digital bottlenecks with TRENDnet's 20-Port 2.5G Switch with 10G SFP+ Ports, model TEG-S50204. This multi-gigabit network switch comes equipped with 2.5GBASE-T RJ-45 and 10G fiber SFP+ ports that provide ultrafast speeds capable of up to 2.5Gbps over your existing Cat5e cabling or 10Gbps over fiber cabling. This high-speed switch features a durable metal enclosure, and the fanless design lowers energy consumption and eliminates operating noise. The included rackmount brackets are well-suited for 19" 1U rack installations. TRENDnet's reliable 2.5G switches are cost-effective solutions to increase your network's throughput. DEVICE INTERFACE: 16 x 2.5G RJ-45 Ports; 4 x 10G SFP+ Ports; 160Gbps Switching Capacity; LED Indicators TRENDnet LIFETIME PROTECTION: We stand by our products. The TEG-S50204 2.5G Multi-Gig Switch is secured with Lifetime Manufacturer Protection from TRENDnet. NDAA + TAA COMPLIANT: With NDAA and TAA compliant network switches, you can plan and install the networking solutions that government customers demand today. (U.S. and Canada only) 2.5 GIGABIT SPEEDS: Equipped with 16 high-speed 2.5G RJ-45 ports that provide multi-gigabit speeds capable of up to 2.5Gbps over existing Cat5e or better cabling. HIGH SPEED 10G SFP+: Offers four ultra-fast 10G SFP+ ports for high-speed network connections, providing a cost-effective solution in adding 10G link capability. FANLESS DESIGN: Fanless design on the 20-port 2.5G switch lowers energy consumption and eliminates operating noise RACKMOUNT READY: The network switch is equipped with 1U 19" rack mountable metal housing with mounting kit included VLAN PASSTHROUGH: Supports VLAN tag passthrough traffic LED INDICATORS: LED indicators on this 20-port 2.5G switch conveniently convey port status
Product Type	Ethernet Switch

Technical Information

Features	Fanless

Interfaces/Ports

Total Number of Network Ports	16
Network (RJ-45)	Yes
Port/Expansion Slot Details	16 x 2.5 Gigabit Ethernet Network 4 x 10 Gigabit Ethernet Expansion Slot

Media & Performance

Media Type Supported	Twisted Pair Optical Fiber
Ethernet Technology	2.5 Gigabit Ethernet 10 Gigabit Ethernet
Network Technology	2.5GBase-T 10GBase-X

I/O Expansions

Total Number of Expansion Slots	4
Expansion Slot Type	SFP+
Number of SFP+ Slots	4

Network & Communication

Layer Supported	2
Networking Standards	IEEE 802.1Q IEEE 802.3 IEEE 802.3u IEEE 802.3x IEEE 802.3z IEEE 802.3ab IEEE 802.3ae IEEE 802.3az IEEE 802.3bz

Management & Protocols

Manageable	No

Reliability

MTBF	394000 Hour

Power Description

Input Voltage	120 V AC 230 V AC
Frequency	47 Hz 63 Hz
Power Source	AC Power Supply
Power Consumption	38.88 W

Physical Characteristics

Product Material	Metal
Compatible Rack Unit	1U
Form Factor	Rack-mountable Wall Mountable
Height	1.73" (44 mm)
Width	7.72" (196 mm)
Length	17.32" (440 mm)
Weight (Approximate)	6.37 lb (2890 g)

Miscellaneous

Package Contents	20-Port 2.5G Switch with 10G SFP+ Ports Rackmount Kit Power Cord (1.5m / 5 ft.)
Application/Usage	Wireless Access Point Outdoor Camera Network
Country of Origin	Taiwan
TAA Compliant	Yes
Condition	No
UPC	0710931141269

Warranty

Limited Warranty	Lifetime
