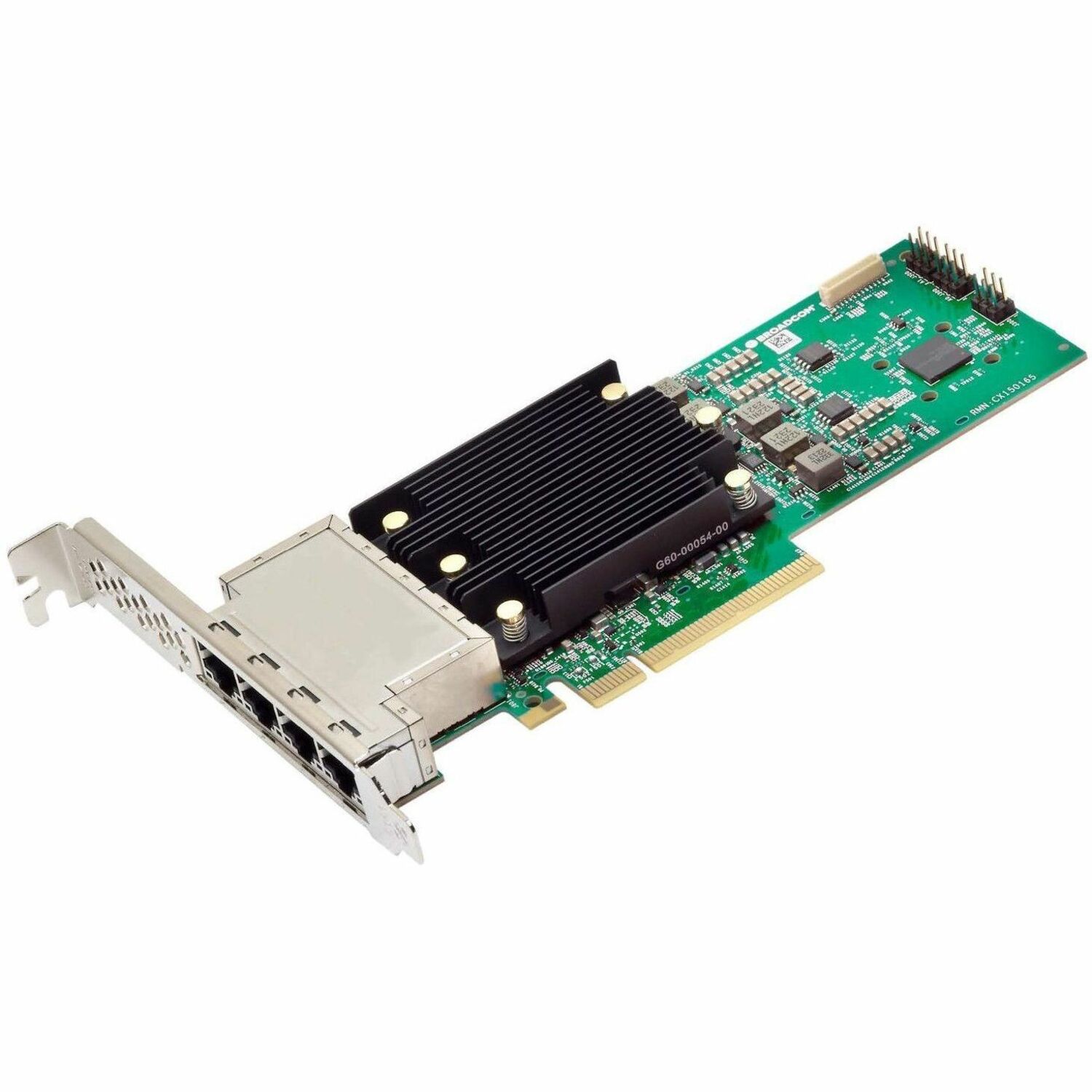

Lenovo Broadcom 10Gigabit Ethernet Card

PCI Express 3.0 x8 - Broadcom BCM57412 - 4 Port(s) - 4 - Twisted Pair - full-height, low-profile Bracket Height - 10GBase-T, 1000Base-T - Plug-in Card

Part No. 4XC7A95697

by Lenovo Group Limited

$1987.99

Specifications

General Information

Manufacturer	Lenovo Group Limited
Manufacturer Part Number	4XC7A95697
Brand Name	Lenovo
Product Name	Broadcom 10Gigabit Ethernet Card
Marketing Information	The ThinkSystem Broadcom 57412 10GBASE-T Ethernet Adapters are four port 10 Gb Ethernet adapters that supports 10GBASE-T and 1000BASE-T Ethernet on Category 6 twisted-pair cables. They support networking virtualization technologies such as SR-IOV, VXLAN, and NVGRE. The 57412 10GBASE-T adapters are available in PCIe and OCP form factors.
Packaged Quantity	1
Product Type	10Gigabit Ethernet Card

Technical Information

Chipset Manufacturer	Broadcom
Chipset Model	BCM57412
Features	Single Root I/O Virtualization (SR-IOV) Virtual Extensible LAN (VXLAN) Network Virtualization using Generic Routing Encapsulation (NVGRE) Transmit Side Scaling (TSS) Receive Side Scaling (RSS) TCP Segmentation Offload (TSO) Large Receive Offload (LRO) Large Send Offload (LSO) User Datagram Protocol (UDP) IPv4 IPv6 VLAN Support UEFI Support PXE Support Extended Message-Signaled Interrupts (MSI-X)

Interfaces/Ports

Host Interface	PCI Express 3.0 x8
Total Number of Ports	4
Number of Network (RJ-45) Ports	4

Media & Performance

Media Type Supported	Twisted Pair

Network & Communication

Network Technology	10GBase-T 1000Base-T

Environmental Conditions

Minimum Operating Humidity (Non-condensing)	5%
Maximum Operating Humidity (Non-condensing)	95%

Physical Characteristics

Form Factor	Plug-in Card
Bracket Height	full-height, low-profile
Height	2.72" (69 mm)

Miscellaneous

Package Contents	Broadcom 10Gigabit Ethernet Card PCIe Adapter Documentation Flyer
Application/Usage	Network
Device Supported	Server
Condition	No

Warranty

Limited Warranty	1 Year
