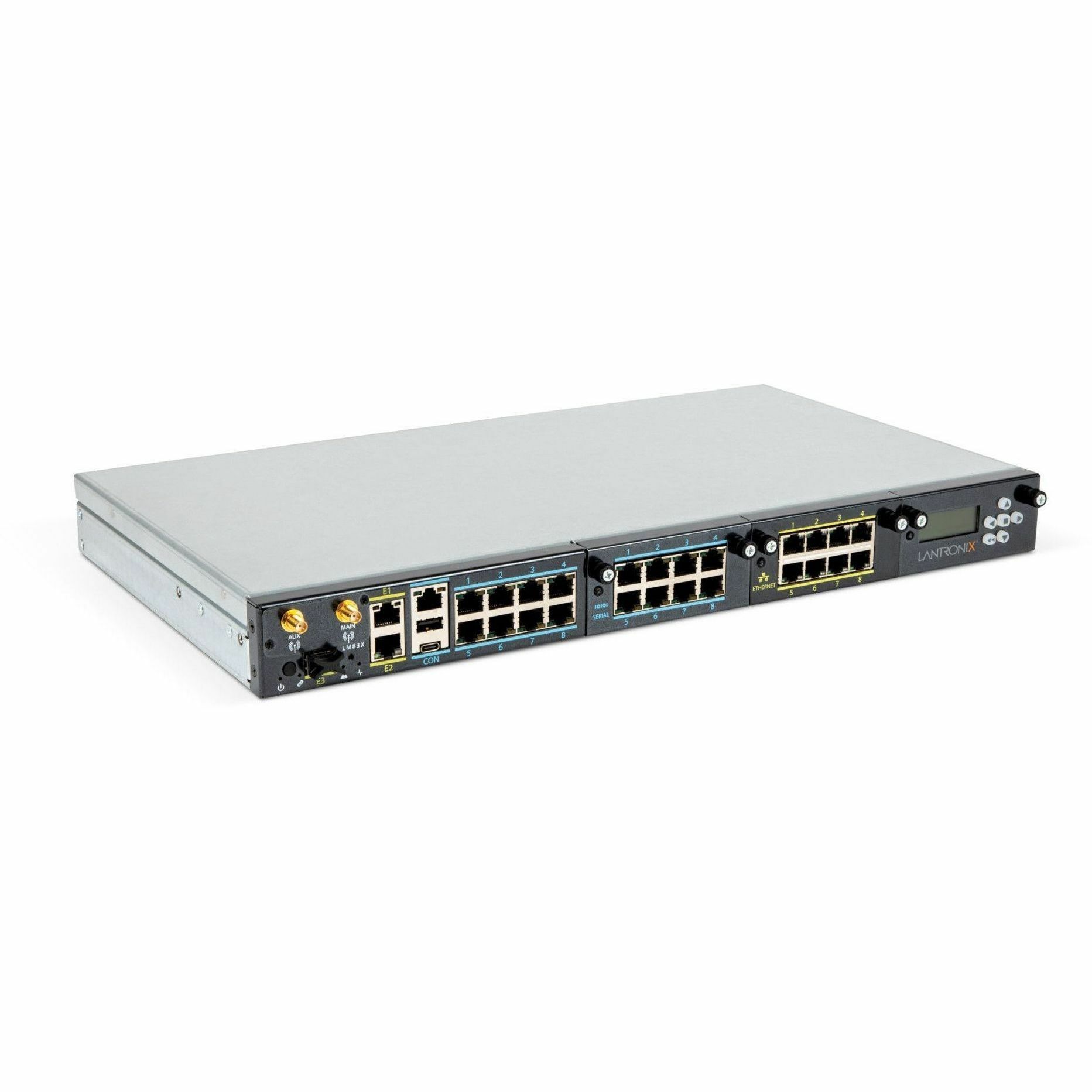

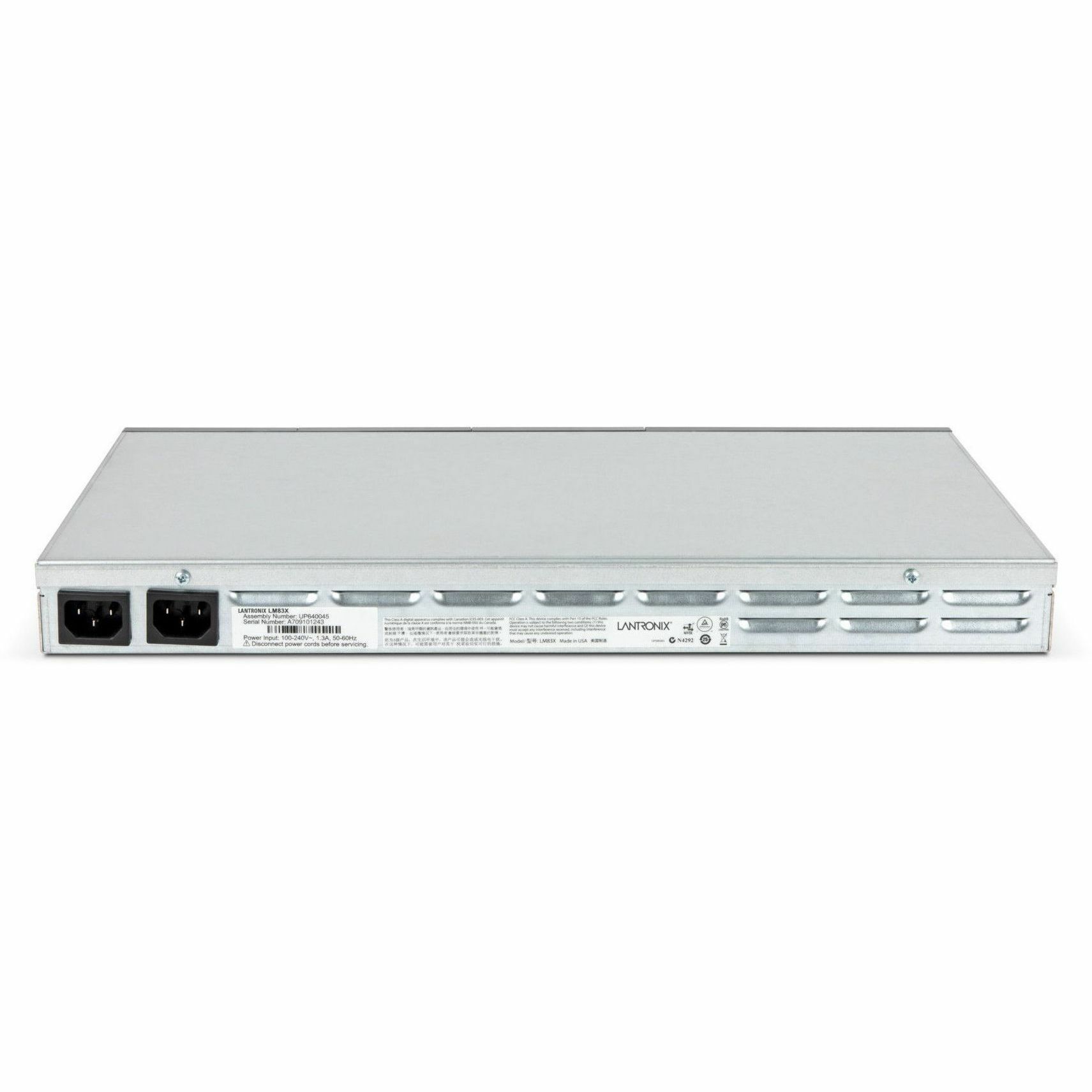

Lantronix LM83X Console Server
On back-order, will ship once in-stock
- All Locations: (0+)
| Manufacturer | Lantronix, Inc |
| Manufacturer Part Number | 83X-40S-224-NDA |
| Brand Name | Lantronix |
| Product Series | LM |
| Product Model | LM83X |
| Product Name | LM83X Console Server |
| Marketing Information | AI-Driven Out-of-Band Management for Enterprise Scalability & Performance The Lantronix LM83X is a modular platform designed to act independently from the network to remotely monitor, manage and control up to 104 devices including a managed power supply. The LM Series An advanced out-of-band solution that provides access, monitoring and control of network infrastructure that operates whether the network is up or down.
Zero Touch Deployment New, factory fresh LM Series appliances can use DHCP and/or DNS to automatically find and register themselves with the Lantronix Control Center (LCC), allowing network engineers to easily provision them via the LCC, eliminating the need to stage configurations or send technical personal to remote sites for deployment purposes. Automatic Configuration of NTP and DNS Servers via DHCP Primary and secondary NTP and DNS servers are automatically set per those delivered in a DHCP Offer if NTP and DNS servers are not already configured. Any NTP and DNS servers configured via the CLI or the UCC will override server information delivered via DHCP. Automatically Detect and Configure Internal Modems An internal modem is automatically detected and configured if one is present - this includes setting the modem make, model and serial bit rate for all internal modems. PPP settings will be automatically configured for the case of a cellular modem. Lantronix Software Services Control Center - enables advanced out-of-band management by providing a centralized point of control for all LM Series appliances and managed devices deployed throughout your distributed IT environment. Connectivity Services - North American and global cellular data plans and VPN security with an easy-to-use cloud platform to manage your SIMs and services. |
| Product Type | Device Server |
| Device Type | Console Server |
| Connectivity Technology | Wired |
| Media Type Supported |
|
| Total Number of Expansion Slots | 1 |
| Expansion Slot Type | SFP |
| Ethernet Technology | Gigabit Ethernet |
| Network Standard | 10/100/1000Base-T |
| Network (RJ-45) | Yes |
| USB | Yes |
| Serial Port | Yes |
| Management Port | Yes |
| Total Number of Network Ports | 3 |
| Number of Network (RJ-45) Ports | 2 |
| Number of USB Ports | 2 |
| Number of Serial Ports | 40 |
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Operating Temperature | 113°F (45°C) |
| Input Voltage |
|
| Input Voltage Range | -20 V DC to -72 V DC |
| Form Factor | Rack-mountable |
| Height | 1.70" (43.20 mm) |
| Width | 17.52" (445 mm) |
| Depth | 10.39" (264 mm) |
| Weight (Approximate) | 8.20 lb (3720 g) |
| Certifications & Standards |
|
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| TAA Compliant | Yes |
| Condition | No |
| UPC | 783384259492 |
