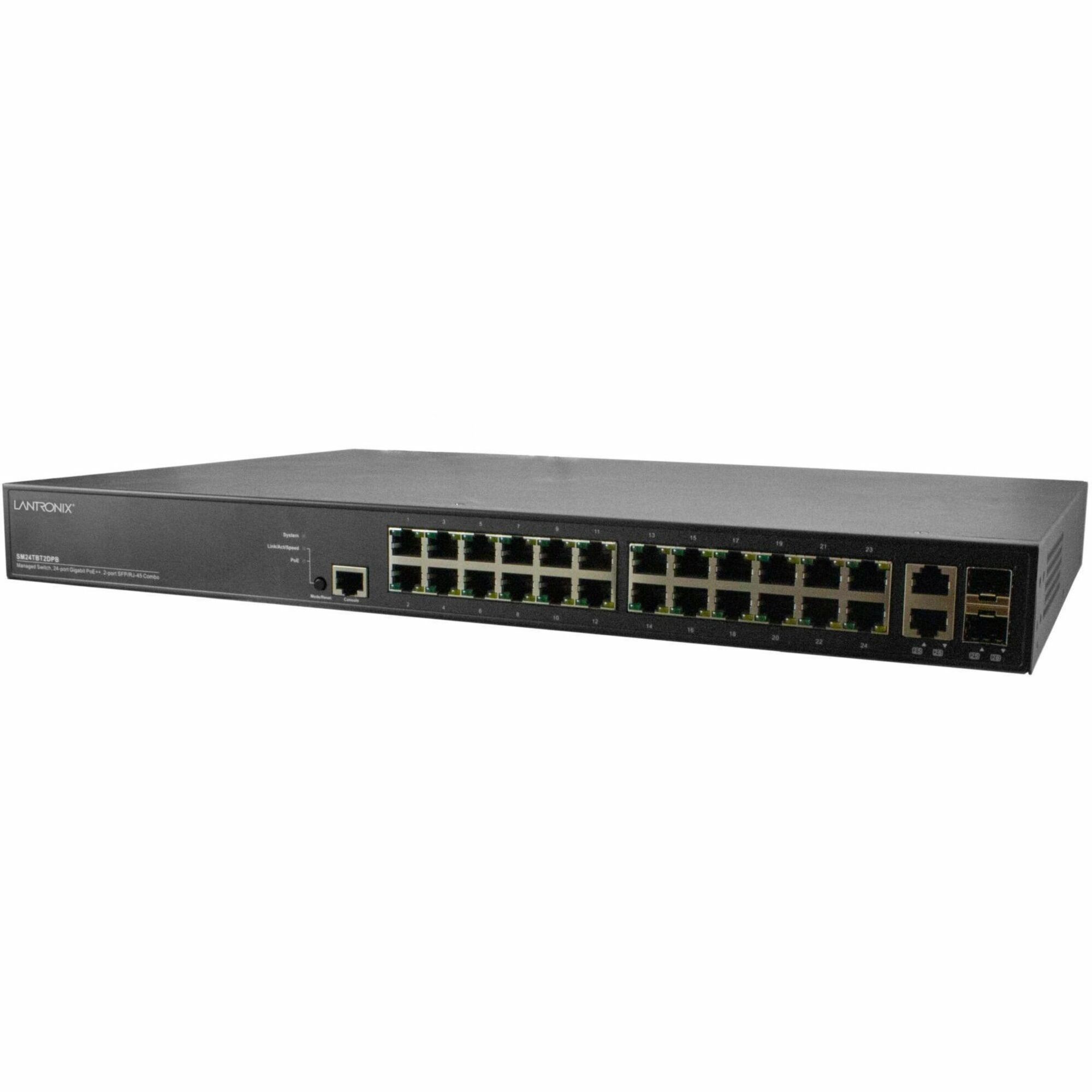

Lantronix SM24TBT2DPB Ethernet Switch

26 Ports - Manageable - Gigabit Ethernet - 10/100/1000Base-T, 1000Base-X - 4 Layer Supported - 2 SFP Slots - 52 W Power Consumption - Twisted Pair, Optical Fiber - PoE Ports - Rack-mountable - 5 Year Limited Warranty

Part No. SM24TBT2DPB-920

by Lantronix, Inc

$2533.99

Specifications
Options & Accessories (1)

General Information

Manufacturer	Lantronix, Inc
Manufacturer Part Number	SM24TBT2DPB-920
Brand Name	Lantronix
Product Series	SM24TBT2DPB
Product Name	SM24TBT2DPB Ethernet Switch

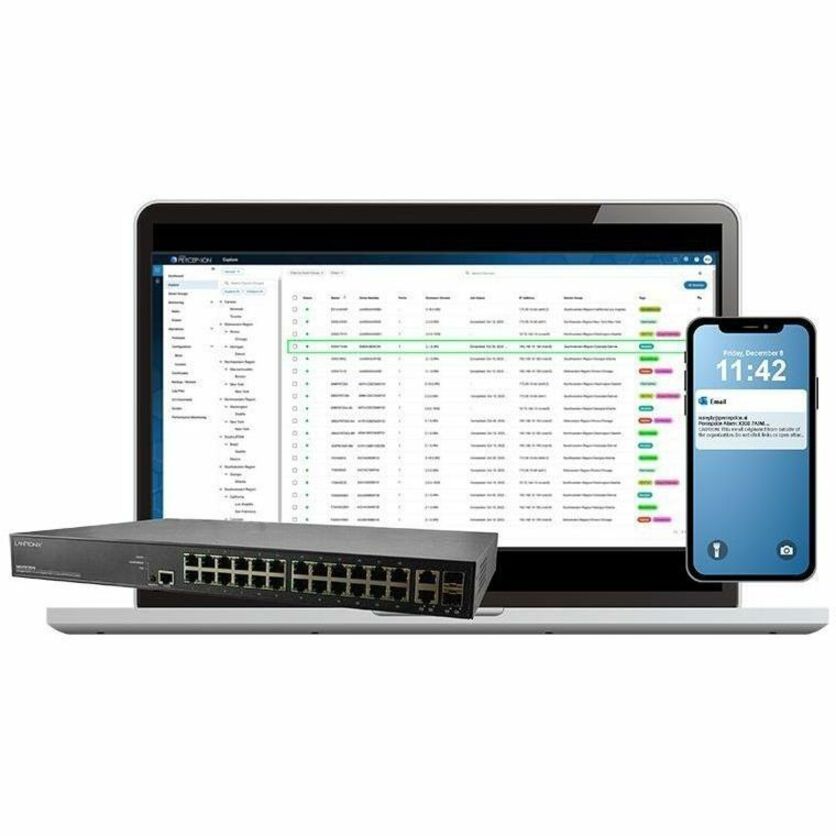

Marketing Information	This switch is a high-performance Layer 2 managed switch with 52 Gbps switching capacity. It provides 24 10/100/1000Mbps copper ports with IEEE 802.3bt PoE++ capability and 2 additional 100/1000Mbps dual speed SFP/RJ-45 combo ports.Integrated with Lantronix's Percepxion cloud based IoT edge solutions platform. NDAA Compliant, TAA Compliant
Product Type	Ethernet Switch

Technical Information

Features	Hot-swappable VLAN Segmentation DHCP Relay Access Control List Energy Efficient Strict Priority Queuing (SPQ)

Interfaces/Ports

Total Number of Network Ports	26
Network (RJ-45)	Yes
Port/Expansion Slot Details	24 x Gigabit Ethernet PoE++ 2 x Gigabit Ethernet TP/SFP Combo

Media & Performance

Media Type Supported	Twisted Pair Optical Fiber
Ethernet Technology	Gigabit Ethernet
Network Technology	10/100/1000Base-T 1000Base-X
Maximum Data Transfer Rate	128 MB/s

I/O Expansions

Total Number of Expansion Slots	2
Expansion Slot Type	SFP (mini-GBIC)
Shared SFP Slot	Yes
Number of SFP Slots	2

Network & Communication

Layer Supported	4
Networking Standards	IEEE 802.3 IEEE 802.3x IEEE 802.1s IEEE 802.1ab IEEE 802.3az IEEE 802.3u IEEE 802.3ad IEEE 802.1Q IEEE 802.3af IEEE 802.3z IEEE 802.1D IEEE 802.1p IEEE 802.3at IEEE 802.3ae IEEE 802.1w IEEE 802.1ad IEEE 802.3bt

Management & Protocols

Manageable	Yes

Power Description

PoE (RJ-45) Port	Yes
Input Voltage	120 V AC 230 V AC
Power Source	Power Supply
Redundant Power Supply Supported	Yes
Number of Power Supplies Supported	2
Power Consumption	52 W

Physical Characteristics

Form Factor	Rack-mountable
Height	1.73" (43.94 mm)
Width	17.40" (441.96 mm)
Depth	11.80" (299.72 mm)
Weight (Approximate)	11.29 lb (5120 g)

Miscellaneous

Package Contents	SM24TBT2DPB Ethernet Switch 19" Rack Mount Bracket 1 x Secondary AC Modular Power Supply
Application/Usage	Network Digitial Signage Security Surveillance POS System Thin Client PoE Lighting Enterprise IP Surveillance Network Wireless Access Point Traffic IoT Devices Building IP Camera
Certifications & Standards	FCC Class A CE UL62368-1
TAA Compliant	Yes
Condition	No
UPC	783384257337

Warranty

Limited Warranty	5 Year
