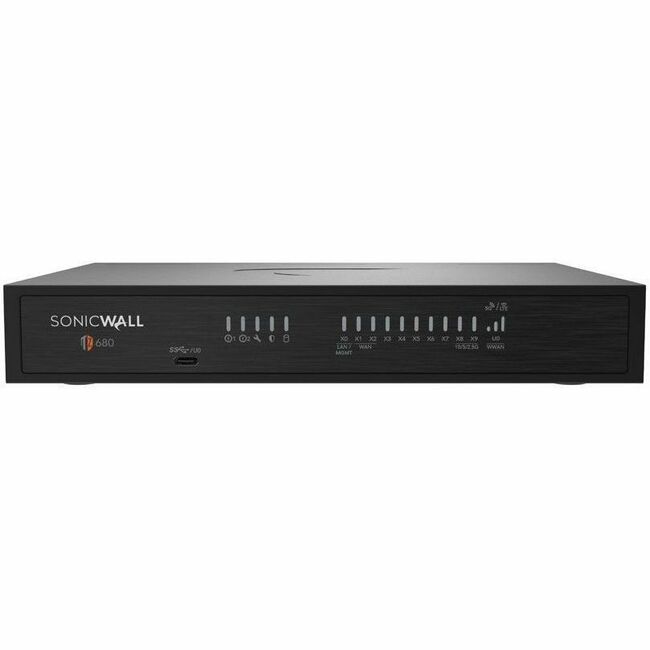

SonicWall TZ680

Intrusion Prevention - 8 Port - Gigabit Ethernet, 5 Gigabit Ethernet, 2.5 Gigabit Ethernet, 10 Gigabit Ethernet - 5 Gbit/s Firewall Throughput - MD5, AES (128-bit), AES (192-bit), AES (256-bit), SHA-256, SHA-384, TLS 1.3, SSL, TLS - 500 VPN - 8 x RJ-45 - 2 Total Expansion Slots - 50 Hz, 60 Hz - Desktop

Part No. 03-SSC-1839

by SonicWall Inc.

$1619.99

Specifications

General Information

Manufacturer	SonicWall Inc.
Manufacturer Part Number	03-SSC-1839
Brand Name	SonicWall
Product Series	TZ
Product Model	TZ680
Product Name	TZ680 Network Security/Firewall Appliance
Marketing Information	Designed for mid-sized organizations and distributed enterprise with SD-Branch locations, the TZ 680 Series delivers industry-validated security effectiveness with best-in-class price-performance.
Product Type	Network Security/Firewall Appliance

Technical Information

Functionality	Intrusion Prevention
Firewall Protection Supported	Intrusion Prevention Malware Protection Application Control Content Filtering Anti-spyware URL Filtering Denial of Service (DoS) Stateful Packet Filtering Signature-based Intrusion Prevention Distributed Denial of Service (DDoS) Threat Protection Secure IPsec VPN Connectivity Deep Inspection Firewall Real-Time Deep Memory Inspection (RTDMI) Gateway Antivirus Reassembly-free Deep Packet Inspection TLS Decryption TLS Inspection SSL Decryption SSL Inspection
Firewall Throughput	5 Gbit/s
Encryption Standard	MD5 AES (128-bit) AES (192-bit) AES (256-bit) SHA-256 SHA-384 TLS 1.3 SSL TLS
Number of VPN Supported	500
Data Link Protocols	HTTP HTTPS L2TP PPTP TCP/IP
Connectivity Technology	Wired
New Connections Per Second	26000
AI-powered	Yes

Interfaces/Ports

Total Number of Ports	8
USB	Yes
Number of Network (RJ-45) Ports	8

Media & Performance

VPN Throughput	320 MB/s
IPS Throughput	384 MB/s

Network & Communication

Ethernet Technology	Gigabit Ethernet 5 Gigabit Ethernet 2.5 Gigabit Ethernet 10 Gigabit Ethernet

I/O Expansions

Total Number of Expansion Slots	2
Expansion Slot Type	SFP+
Number of SFP+ Slots	2

Management & Protocols

Manageable	Yes

Power Description

Frequency	50 Hz 60 Hz
Power Consumption	16.99 W

Physical Characteristics

Form Factor	Desktop
Height	1.38" (35 mm)
Width	7.48" (190 mm)
Depth	5.12" (130 mm)
Weight (Approximate)	2.14 lb (970 g)

Miscellaneous

Application/Usage	Enterprise Business Network Security
Additional Information	Operating system - SonicOS 8 Interfaces - 8x1GbE, 2x 10/5/2.5/1G SFP+, 1 USB (type-C), 1 console (Micro-USB) Storage /(expansion) - (Optional: Up to 512 GB) Centralized Management - Network Security Manager (NSM) 3.0 and above, CLI, SSH, Web UI, REST APIs Logical VLAN and tunnel interfaces (maximum) - 256 SAML Single Sign-On (SSO) Users - 2,500 Access points supported (maximum) - 32 Firewall inspection throughput - 5 Gbps Threat prevention throughput - 2.5 Gbps Application inspection throughput - 3 Gbps IPS throughput - 3 Gbps Anti-malware inspection throughput - 2.5 Gbps TLS/SSL inspection and decryption throughput - 800 Mbps IPSEC VPN throughput - 2.5 Gbps Connections per second - 26,000 Maximum connections (SPI) - 1,600,000 Maximum connections (DPI) - 600,000 Maximum connections (TLS) - 75,000 Site-to-site VPN tunnels - 250 IPSec VPN clients (maximum) - 10 (500) SSL-VPN licenses (maximum) - 2 (250) Encryption/authentication - AES (128, 192, 256-bit)/MD5, SHA-256, SHA-384, Suite B Cryptography Key exchange: Diffie Hellman Groups 1, 2, 5, 14v Route-based: VPN RIP, OSPF, BGP Certificate support - Verisign, Thawte, Cybertrust, RSA Keon, Entrust and Microsoft CA for SonicWall-to- SonicWall VPN, SCEP VPN features - Dead Peer Detection, DHCP Over VPN, IPSec NAT Traversal, Redundant VPN Gateway, Route-based VPN Global VPN client platforms supported - Microsoft® Windows 7, Windows 8, Windows 8.1 and Windows 10 NetExtender - Microsoft® Windows 10, Windows 10/11 and Linux Mobile Connect - Apple® iOS, Mac OS X, Google® Android™ Chrome OS, Windows IP address assignment - Static (DHCP, PPPoE, L2TP and PPTP client), Internal DHCP server, DHCP relay NAT modes - 1:1, 1:many, many:1, many:many, flexible NAT (overlapping IPs), PAT, transparent mode Routing protocols - BGP, OSPF, RIPv1/v2, static routes, policy-based routing QoS - Bandwidth priority, max bandwidth, guaranteed bandwidth, DSCP marking, 802.1e (WMM) Authentication - LDAP (multiple domains), XAUTH/RADIUS,TACACS+, SAML SSO1, Radius accounting NTLM, internal user database, 2FA, Terminal Services, Citrix, Common Access Card (CAC) VoIP - Full H3230v1.5 SIP Standards - TCP/IP, UDP, ICMP, HTTP, HTTPS, IPSec, ISAKMP/IKE, SNMP, DHCP, PPPoE, L2TP, PPTP, RADIUS, IEEE 802.3 Certifications - IPv6 High availability - Active/Standby with stateful synchronization Power supply (W) - 60 Input power - 100-240 VAC, 50-60Hz Total heat dissipation (BTU) - 57.93 WEEE weight (kg) - 1.42 MTBF @25oC in years - 29.9 Environment (Operating/Storage): 0°C to +40°C / -40°C to +70°C Humidity - 5-95% non-condensing
Certifications & Standards	FCC Class B ICES Class B CE (EMC, LVD) UL cUL Mexico DGN Notice by UL ANATEL SCIP RCM MIC Terminal VCCI Class B KCC/MSIP BSMI MTCTE/TEC CB
Environmental Compliance	Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) Restriction of Hazardous Substances (RoHS) Waste Electrical and Electronic Equipment Directive (WEEE)
Condition	No
UPC	0758479318392
