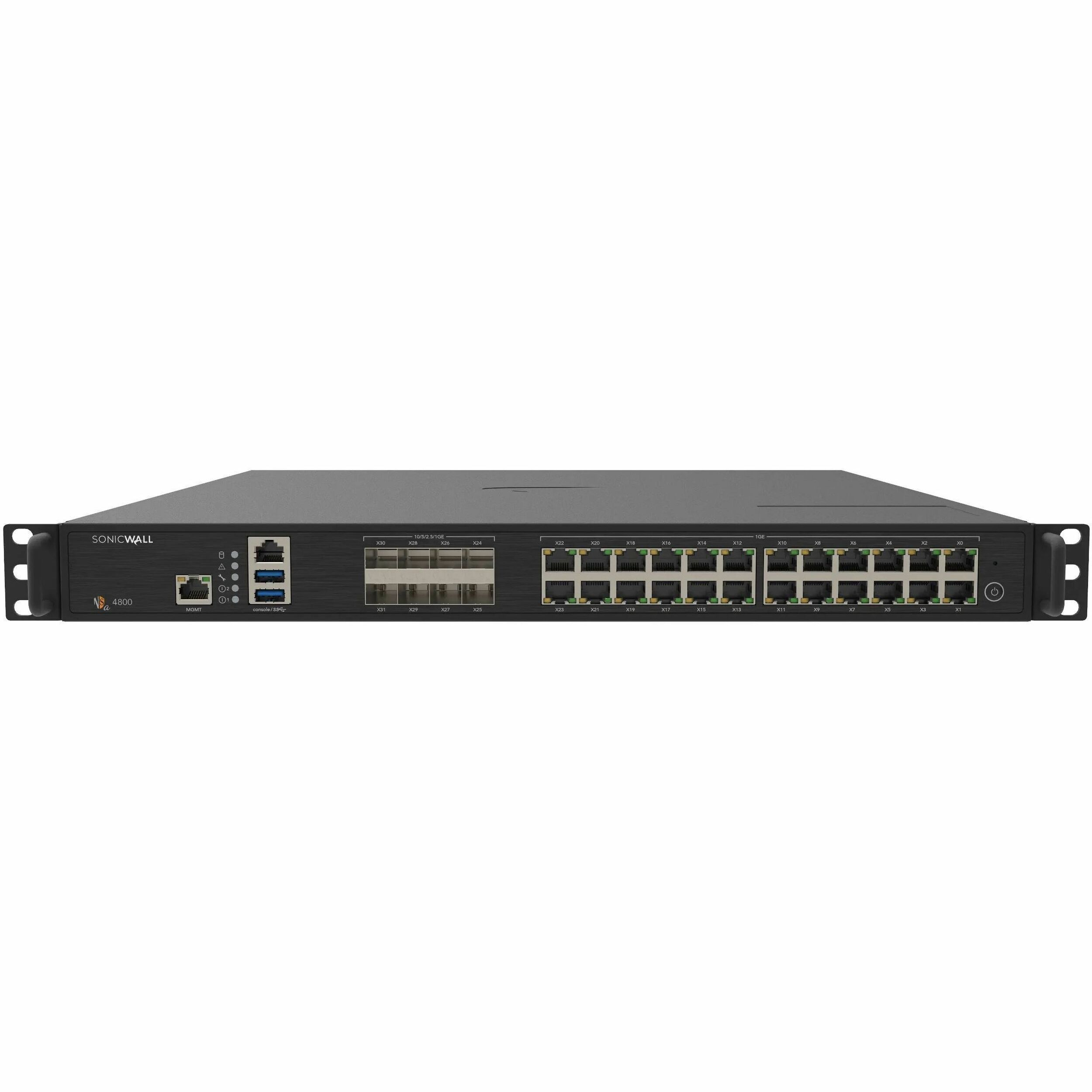

SonicWall NSa 4800 Network Security/Firewall Appliance

Intrusion Prevention - 24 Port - Gigabit Ethernet, 10 Gigabit Ethernet - 20 Gbit/s Firewall Throughput - MD5, AES (128-bit), AES (192-bit), AES (256-bit), TLS 1.3, SHA-1 - 3000 VPN - 24 x RJ-45 - 8 Total Expansion Slots - 50 Hz, 60 Hz - 1U - Rack-mountable

Part No. 03-SSC-7045

by SonicWall Inc.

$6340.99

Specifications

General Information

Manufacturer	SonicWall Inc.
Manufacturer Part Number	03-SSC-7045
Brand Name	SonicWall
Product Series	NSa
Product Model	NSa 4800
Product Name	NSa 4800 Network Security/Firewall Appliance
Marketing Information	SonicWall latest mid-range next-gen firewalls, Network Security Appliance (NSa) Series offer medium and large enterprises industry-leading threat prevention performance at the lowest total cost of ownership in their class. The firewalls are the cornerstones of the threat protection solution that includes simplified centralized firewall management, Zero Trust enablement, flexible licensing with an option of managed firewall services, and an embedded cyber warranty for risk mitigation. The Gen 8 firewalls deliver comprehensive security features such as intrusion prevention, VPN, application control, malware analysis, URL filtering, DNS Security, Geo-IP and Bot-net services, protecting the perimeter from advanced threats without becoming a bottleneck.
Product Type	Network Security/Firewall Appliance

Technical Information

Functionality	Intrusion Prevention
Firewall Protection Supported	Intrusion Prevention Malware Protection Application Control Content Filtering Anti-spyware URL Filtering Stateful Packet Filtering Signature-based Intrusion Prevention Distributed Denial of Service (DDoS) Threat Protection Secure IPsec VPN Connectivity Deep Inspection Firewall Real-Time Deep Memory Inspection (RTDMI) Gateway Antivirus Reassembly-free Deep Packet Inspection TLS Decryption TLS Inspection SSL Decryption SSL Inspection
Firewall Throughput	20 Gbit/s
Encryption Standard	MD5 AES (128-bit) AES (192-bit) AES (256-bit) TLS 1.3 SHA-1
Number of VPN Supported	3000
Data Link Protocols	HTTP HTTPS L2TP PPTP TCP/IP
Connectivity Technology	Wired
New Connections Per Second	140000

Interfaces/Ports

Total Number of Ports	24
USB	Yes
Number of Network (RJ-45) Ports	24

Media & Performance

VPN Throughput	1.38 GB/s
IPS Throughput	1.63 GB/s

Network & Communication

Ethernet Technology	Gigabit Ethernet 10 Gigabit Ethernet

I/O Expansions

Total Number of Expansion Slots	8
Expansion Slot Type	SFP+ Expansion Slot
Number of SFP Slots	8

Management & Protocols

Manageable	Yes

Power Description

Frequency	50 Hz 60 Hz
Power Consumption	110.40 W

Physical Characteristics

Compatible Rack Unit	1U
Form Factor	Rack-mountable
Height	1.77" (45 mm)
Width	18.11" (460 mm)
Depth	16.93" (430 mm)
Weight (Approximate)	16.31 lb (7400 g)

Miscellaneous

Application/Usage	Enterprise Network Security
Certifications & Standards	CC Class A ICES Class A CE (EMC, LVD) UL cUL Mexico DGN Notice by UL ANATEL SCIP RCM VCCI Class A KCC/ MSIP BSMI MTCTE/TEC CB
Environmental Compliance	Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) Restriction of Hazardous Substances (RoHS) Waste Electrical and Electronic Equipment Directive (WEEE)
Condition	No
UPC	0758479370451
