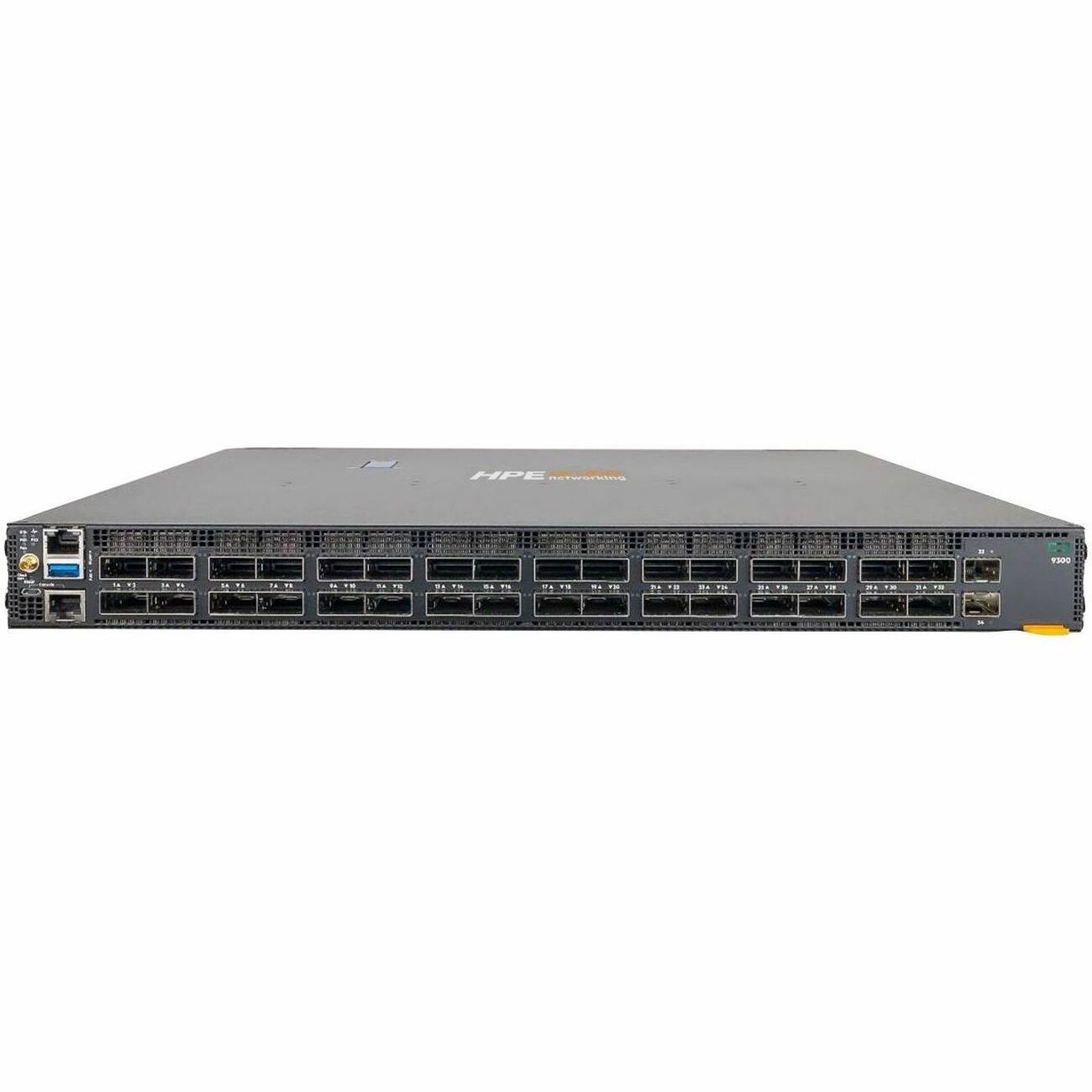

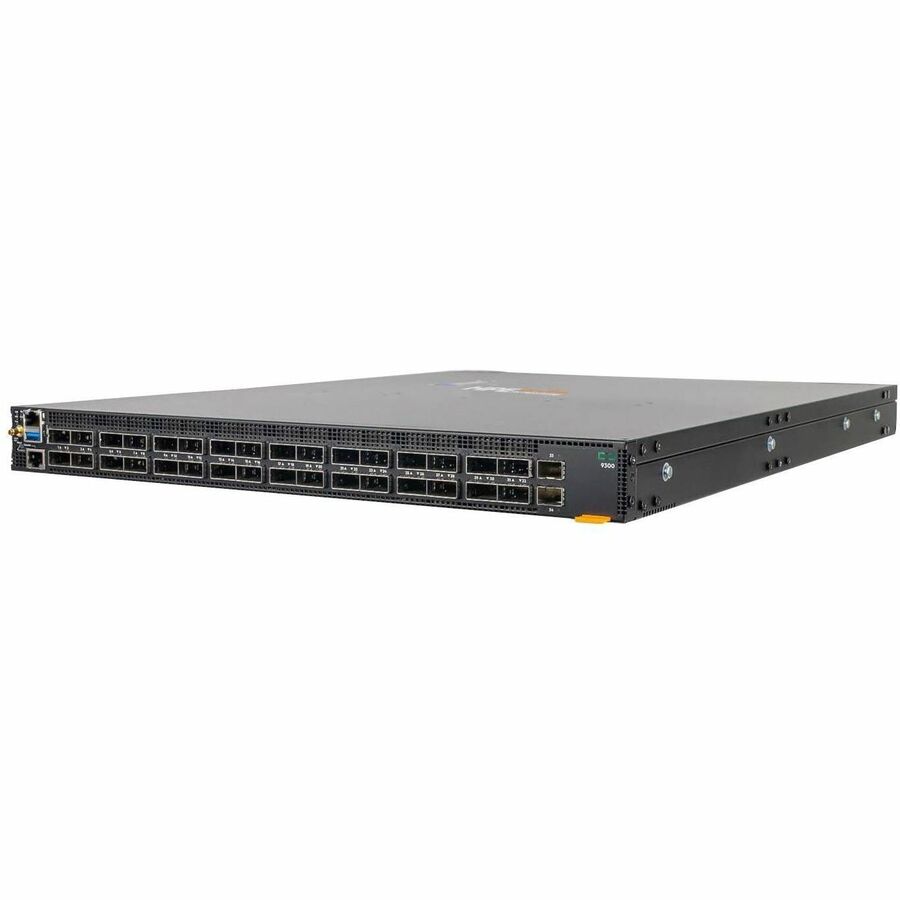

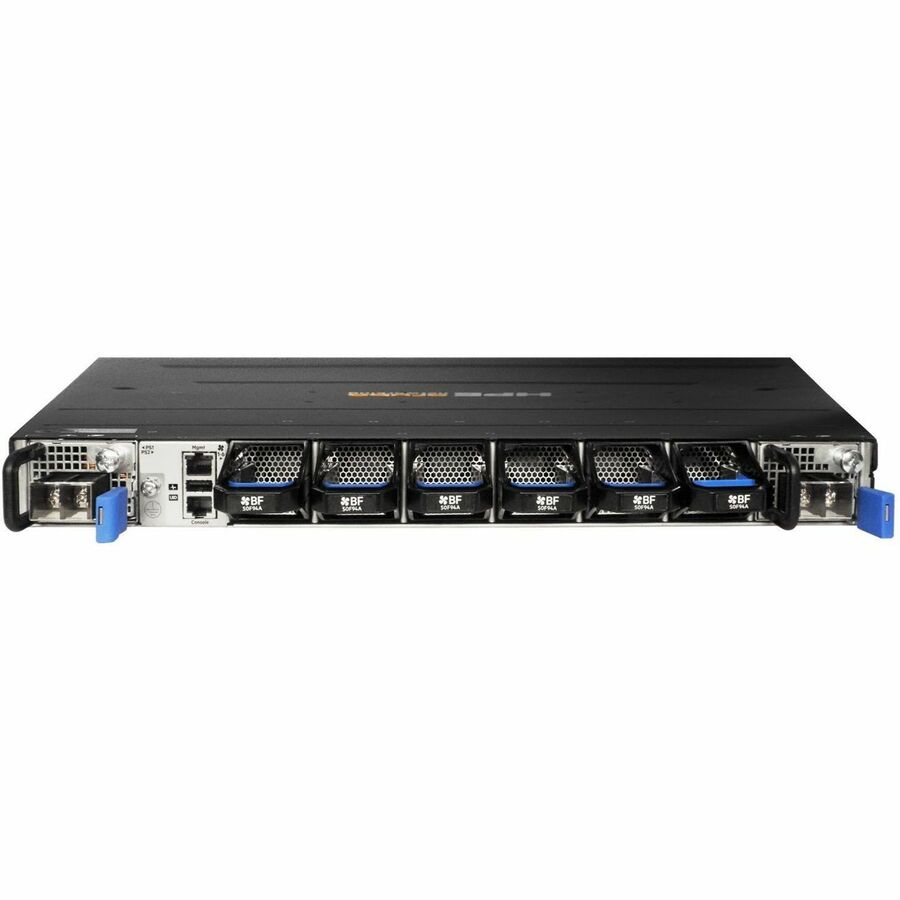

The HPE Aruba Networking CX 9300SwitchSeries provides 25.6Tbps, 1U fixed configuration that supports 32 ports of 100/400GbE. This series is designed to provide flexible, cost-effective, high-density 400GbE for servers, storage, and intra-fabric connectivity.

The HPE Aruba Networking CX 9300SwitchSeries protects enterprises' investment as they as they transition server farms from 10GbE and 25GbE to 100GbE/400GbE EVPN-VXLAN spine configurations, with reduced power and a smaller footprint. It supports large data center pods of up to 6,000 x 25G servers or up to 2,000 x 100G servers. This is an significant jump in scaling/density over current HPE Aruba Networking CX 8325-32C, which scales to 700 x 25G servers.

• 25.6Tbps, 1U fixed configuration supporting 32 ports of 100/400GbE. Designed to provide flexible, cost-effective, high-density 10-400GbE for servers, storage, and intra-fabric connectivity.
• Protects enterprises' investment as they as they transition server farms from 10GbE and 25GbE to 100GbE/400GbE EVPN-VXLAN spine configurations, with reduced power and a smaller footprint.
• Support large data center pods connecting up to 6,000 x 25G servers or up to 2,000 x 100G servers.
• Support large data center pods and increased density by connecting up to 6,000 x 25G servers or up to 2,000 x 100G servers.
• HPE Aruba Networking Aruba Fabric Composer greatly simplifies the automation, orchestration, and end-end visibility of the network fabric underlay and virtualized overlay.
• Introducing new HPE Aruba Networking 9300S 32p QSFP28 100G 8p QSFP-DD 400G Back-to-Front and Front-to-Back Bundles along with new compatible transceivers and power supply options.

High Performance and Scale

• The HPE Aruba Networking CX 9300 Switch Series meets the modern demands of large scale virtualized and cloud networks.
• Provide flexible, cost-effective, high-density 100/400GbE for servers, storage, and intra-fabric connectivity.
• The HPE Aruba Networking CX 9300 Switch Series with breakout cabling scalability allows a single 200GbE split into two 100GbE links.
• 100GbE ports can breakout to four 25GbE ports linking one switch port, and accommodating up to four adapter cards in servers or other subsystems.
• 400 Gbps port can be configured as 4x100GbE, 2x200GbE, or 1x400GbE.

Ethernet Storage Fabric

• The HPE Aruba Networking CX 9300 Switch Series enables low-latency and "lossless" network QoS and connectivity characteristics that storage requires.
• Ideal for software-defined storage and HCI solutions, where multiple servers share captive (SSD/flash-based) storage resources.

Investment Protection

• The HPE Aruba Networking CX 9300 Switch Series eases transition from 10GbE and 25GbE to 100GbE/400GbE.
• Provides higher scaling with reduced power and a smaller footprint.

Intelligent Analytics

• The HPE Aruba Networking CX 9300 Switch Series features real-time monitoring and troubleshooting with HPE Aruba Networking Network Analytics Engine (NAE).
• Intelligent pre-processing of data turns raw telemetry into actionable insights.

• 32 x 100 Gigabit Ethernet QSFP28 Expansion Slot
• 8 x 400 Gigabit Ethernet QSFP-DD Expansion Slot
• 1 x RJ-45 Console Port
• 1 x Micro USB Console Port
• 1 x RJ-45 OOBM Ethernet Port

• Twisted Pair
• Optical Fiber

• 100 Gigabit Ethernet
• 400 Gigabit Ethernet

• QSFP28
• QSFP-DD

• IEEE 802.1Q
• IEEE 802.1p
• IEEE 802.3x
• IEEE 802.3ad
• IEEE 802.1w
• IEEE 802.1s
• IEEE 802.1t
• IEEE 802.1ab
• IEEE 802.1ak
• IEEE 802.3ba
• IEEE 802.1AX
• IEEE 802.3by
• IEEE 802.3cd

• 120 V AC
• 230 V AC

• Power Supply
• AC

• Server
• Enterprise
• Data Center
• Network
