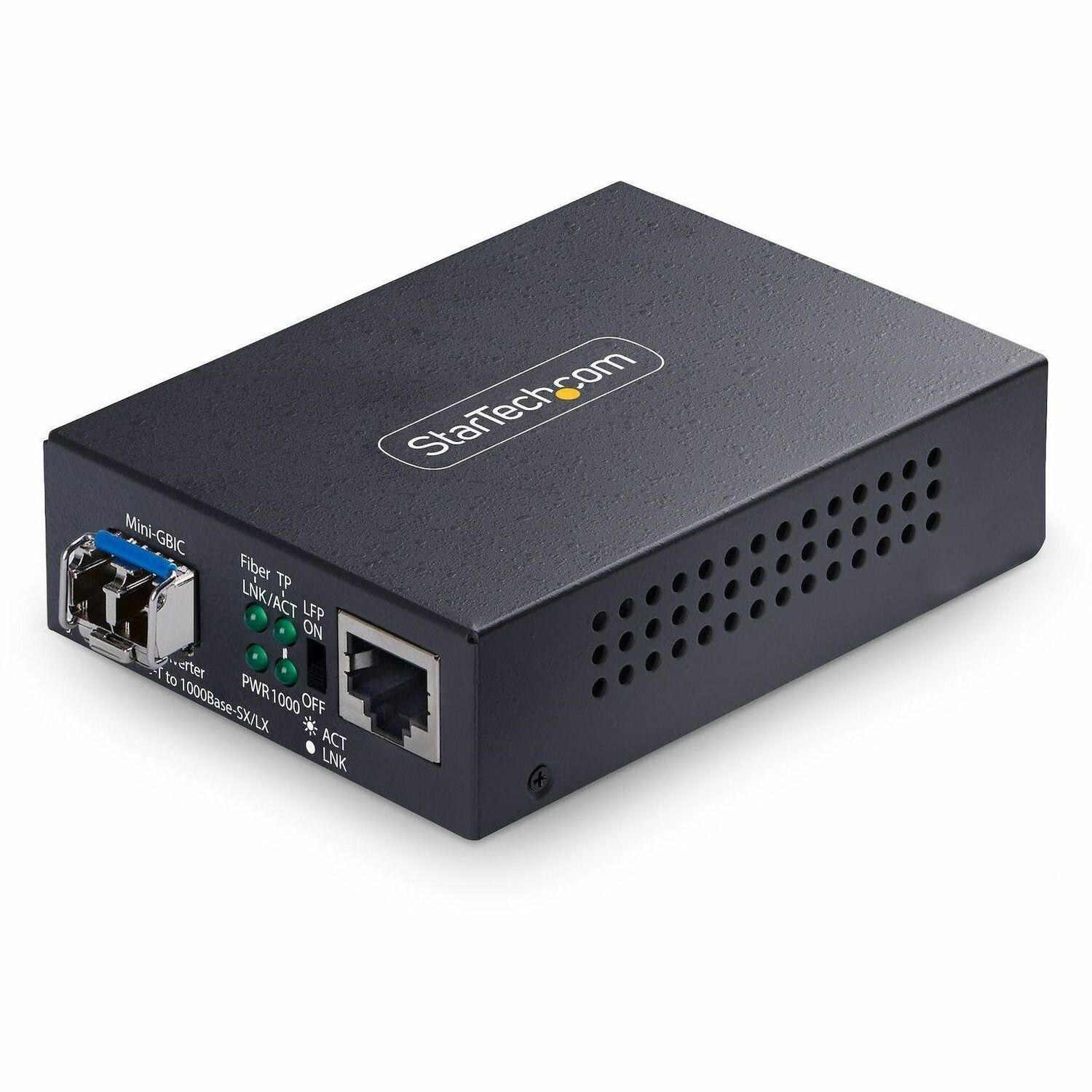

StarTech.com Gigabit Ethernet Copper-to-Fiber Media Converter, SM LC, 20km, 10/100/1000 Mbps, RJ45 to LC, 9K Jumbo Frames, TAA Compliant
In Stock Availability
- All Locations: (148+)
- Calgary, AB (4+)
- Other_SY (139+)
- Richmond, BC (5+)
| Manufacturer | StarTech.com |
| Manufacturer Part Number | MCM1110SMLC20 |
| Brand Name | StarTech.com |
| Product Name | Transceiver/Media Converter |

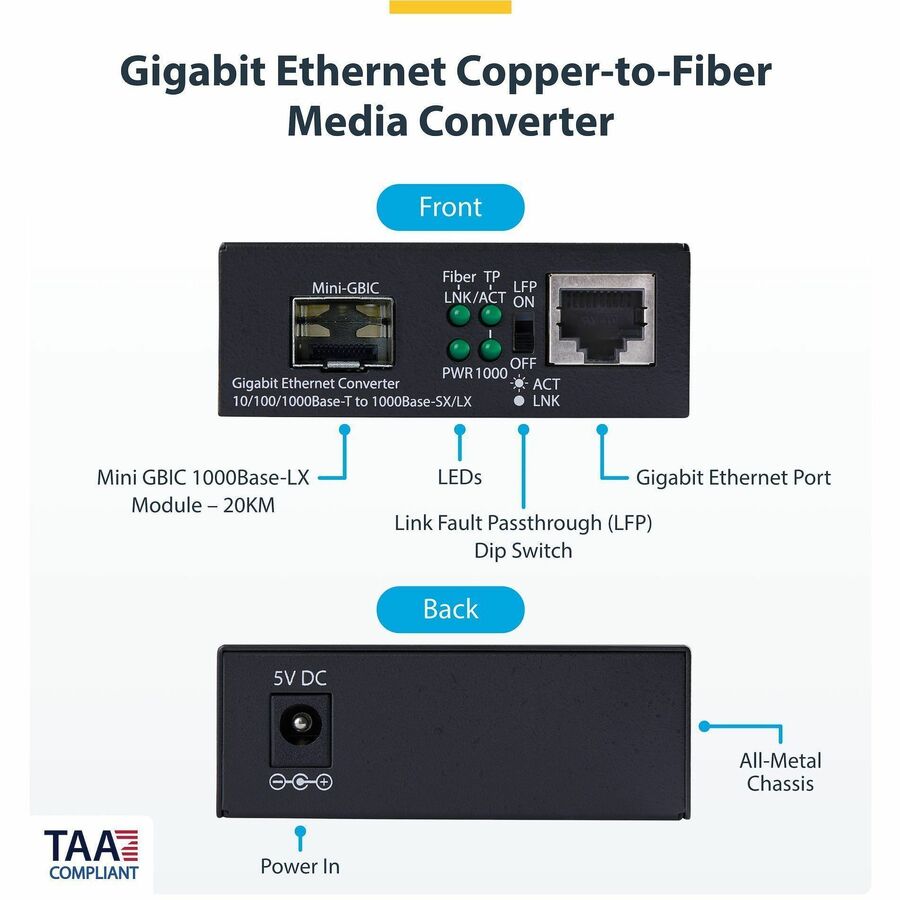

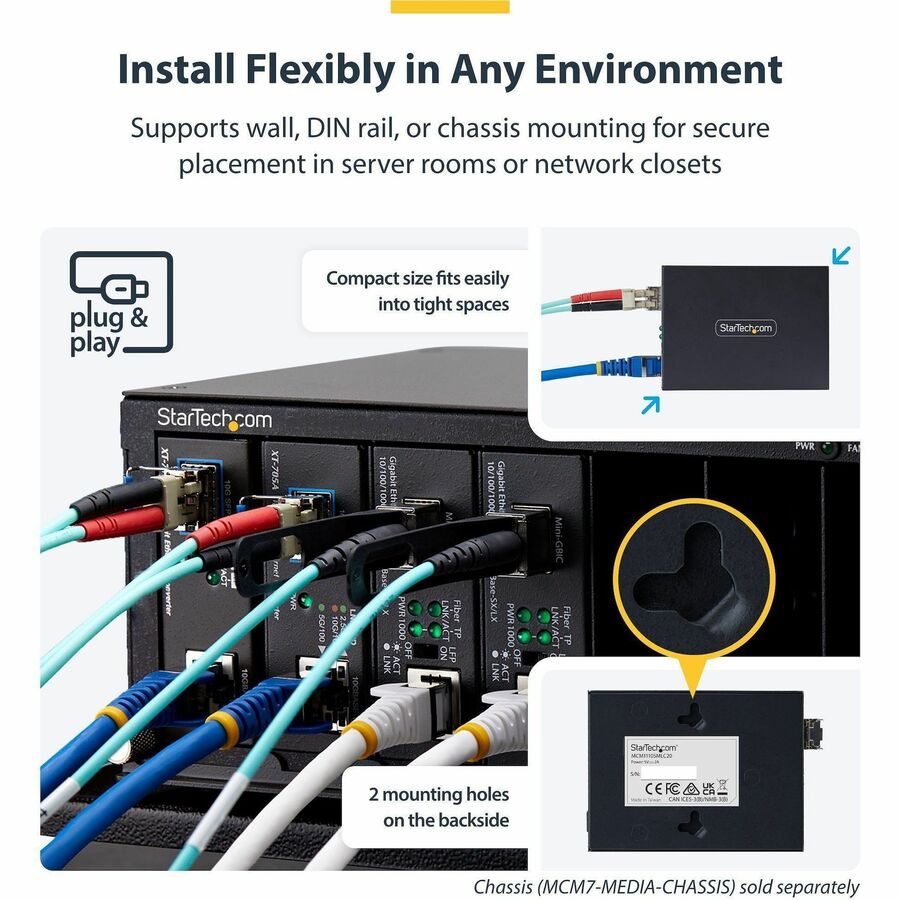

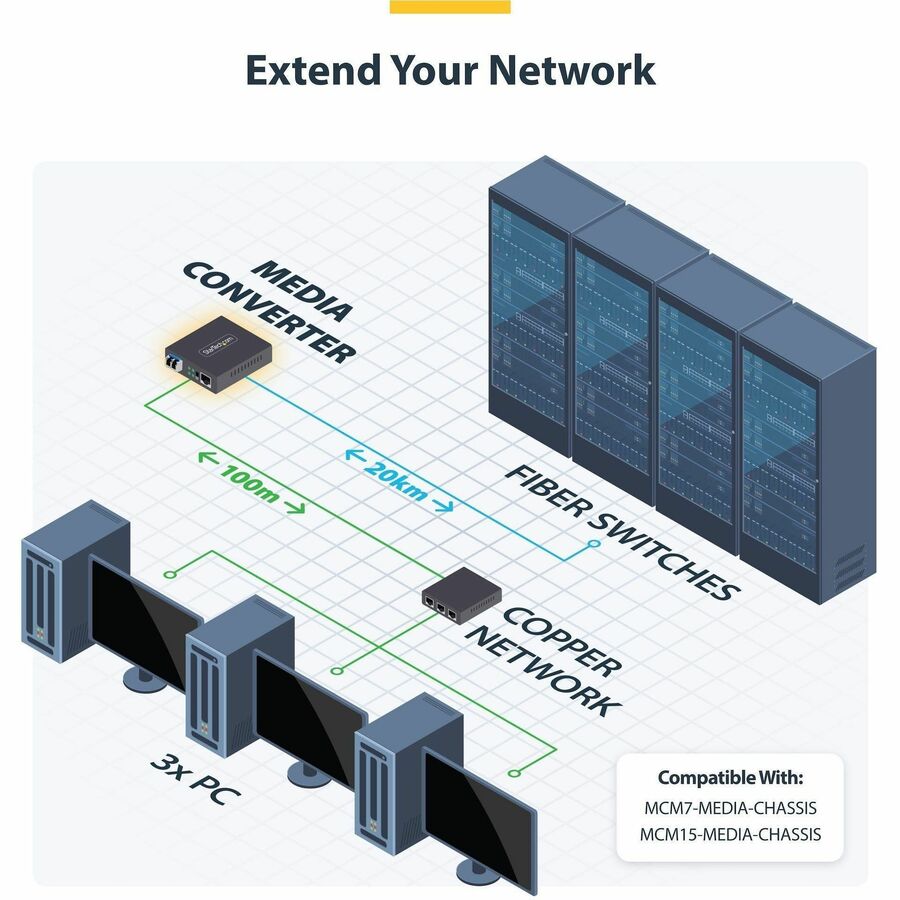

| Marketing Information | This Gigabit Ethernet to fiber media converter offers a reliable way to extend your network up to 20 km (12.4 mi) using single-mode LC fiber, providing increased range, enhanced security, and reduced interference compared to copper-based connections. It's TAA compliant and designed for government and commercial applications where long-distance and rack-mountable fiber access is needed. Built for Versatility and Performance Convert 10/100/1000 Mbps RJ-45 to Gigabit LC fiber using a media converter that complies with IEEE 802.3 standards. It supports full/half duplex, auto-negotiation, MDI/MDI-X, and 9K jumbo frames for high-performance networking in mixed copper-fiber environments. Smart Diagnostics and Rugged Design Built with a compact full metal chassis, this converter includes LED indicators for power and link activity, plus a DIP switch to enable Link Fault Passthrough (LFP) with LLCF/LLR for easier network troubleshooting and reliability. Flexible Installation for Any Network Setup Deploy in minutes with plug-and-play setup and multiple mounting options including wall-mount, DIN-rail, or media chassis installation. It includes a 5V DC, 2A power adapter, making it ideal for server rooms or network closets. |
| Packaged Quantity | 1 |
| Product Type | Transceiver/Media Converter |
| Total Number of Ports | 2 |
| Network (RJ-45) | Yes |
| Number of LC Ports | 1 |
| LC Port Type | Duplex |
| Number of Network (RJ-45) Ports | 1 |
| Media Type Supported |
|
| Fiber Mode Supported | Single-mode |
| Fiber Optic Cable Wavelength | 1310 nm |
| Maximum Data Transfer Rate | 2 Gbit/s |
| Maximum Distance Supported | 20 km (12.43 Mile) |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology |
|
| Power Source | Power Adapter |
| Power Consumption | 4.60 W |
| Plug/Connector Type | DC Jack |
| Form Factor |
|
| Height | 3.70" (93.98 mm) |
| Width | 3.70" (93.98 mm) |
| Depth | 2.80" (71.12 mm) |
| Weight (Approximate) | 0.16 oz (4.54 g) |

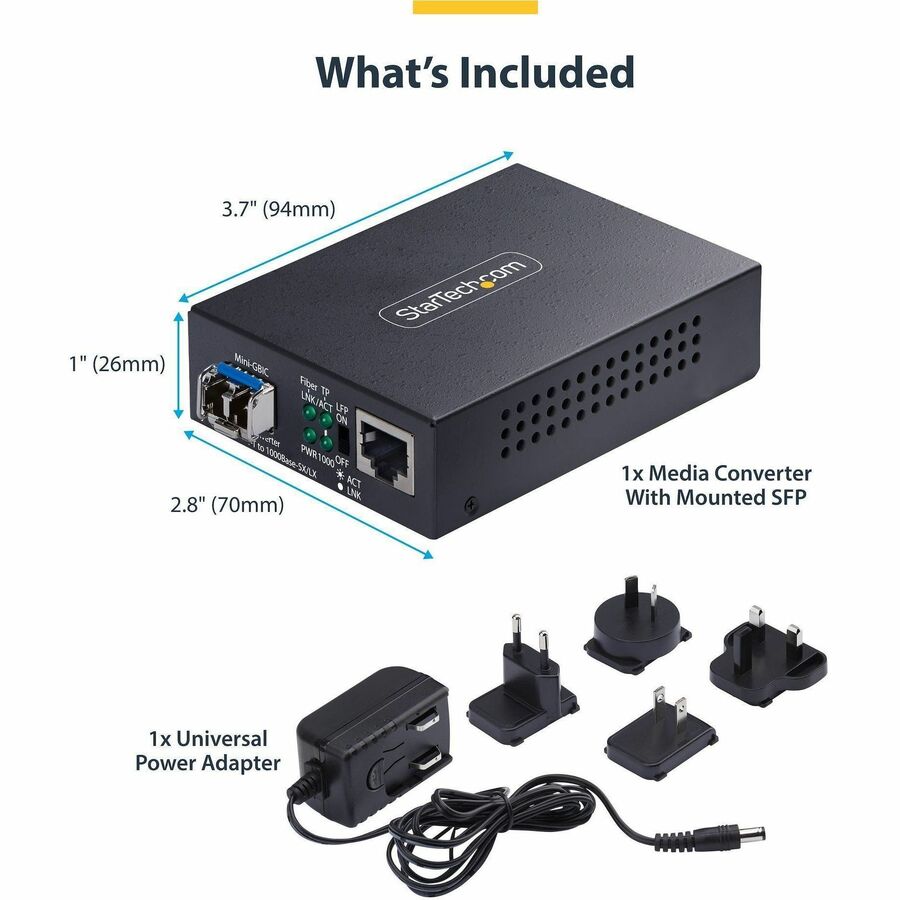

| Package Contents |
|
| Application/Usage |
|
| Certifications & Standards |
|
| Environmental Compliance |
|
| TAA Compliant | Yes |
| Condition | No |
| UPC | 0065030917087 |
| Limited Warranty | 2 Year |
