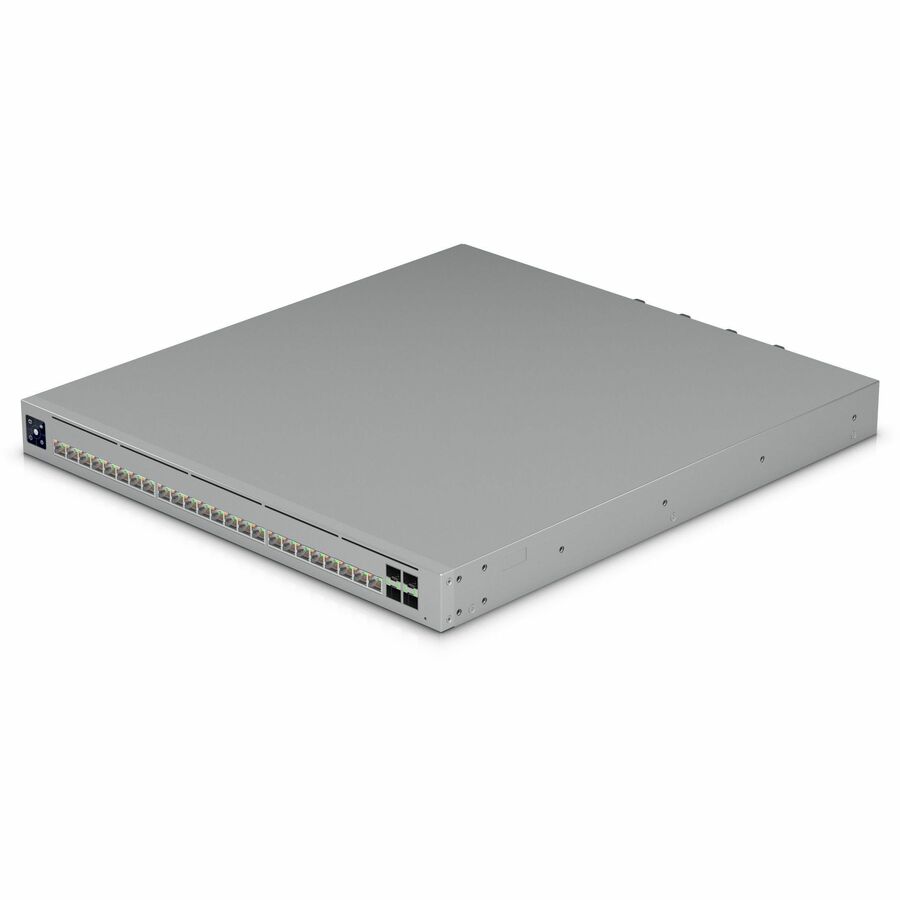

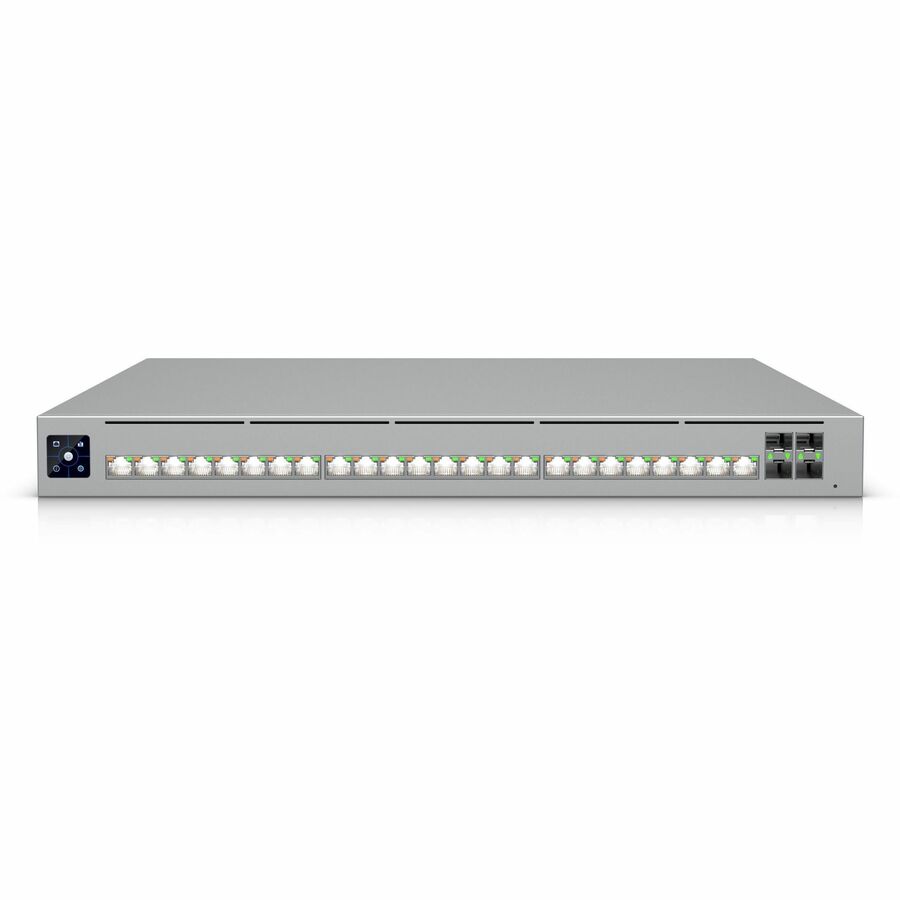

Ubiquiti Enterprise Campus 24S PoE

24 Ports - Manageable - Ethernet, Fast Ethernet, Gigabit Ethernet, 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, 10 Gigabit Ethernet, 25 Gigabit Ethernet, 100 Gigabit Ethernet - 3 Layer Supported - 2400 W Power Consumption - 2.25 kW PoE Budget - Twisted Pair, Optical Fiber - PoE Ports - 1U - Rack-mountable, Enclosure

Part No. ECS-24S-POE

by Ubiquiti Inc.

$3882.99

Specifications
Options & Accessories (1)

General Information

Manufacturer	Ubiquiti Inc.
Manufacturer Part Number	ECS-24S-POE
Brand Name	Ubiquiti
Product Line	Enterprise Campus
Product Model	ECS-24S-PoE
Product Name	Enterprise Campus 24S PoE
Marketing Information	Enterprise-grade 24-port, Layer 3 Etherlighting PoE+++ switch with Stacking support and high-capacity 10 GbE RJ45 and 25G SFP28 connections for high availability system design.
Product Type	Ethernet Switch

Technical Information

Features	Reset Button DHCP Relay Virtual LAN (VLAN) Quality of Service (QoS) IGMP Snooping DHCP Snooping Flow Control Port Mirroring Loop Protection ESD Protection Built-in Fan
High Availability Supported	Yes

Interfaces/Ports

Total Number of Network Ports	24
Stack Port	Yes
Network (RJ-45)	Yes

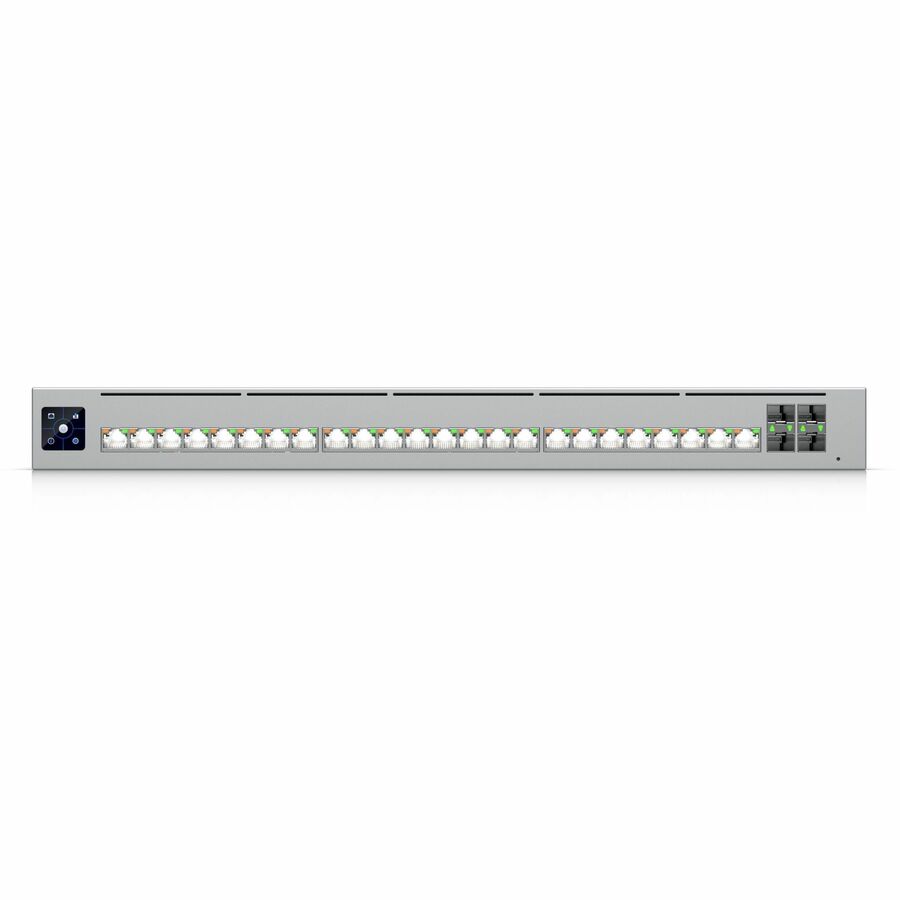

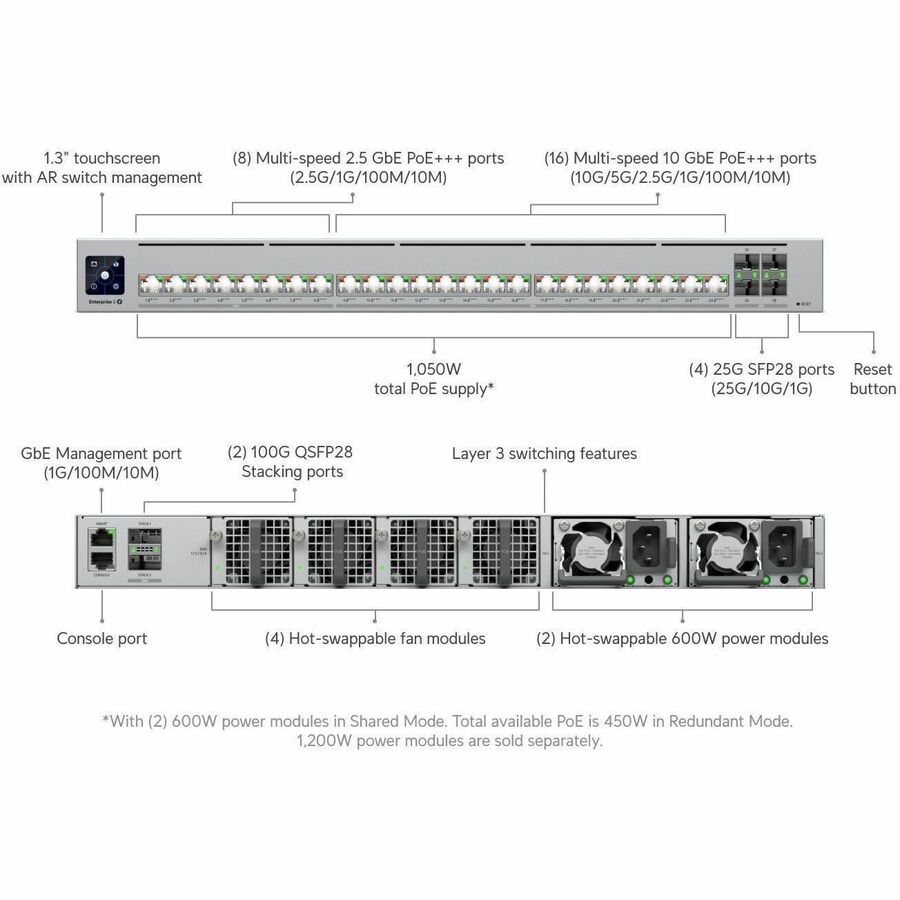

Port/Expansion Slot Details	8 x 2.5 Gigabit Ethernet PoE+++ Network Port 16 x 10 Gigabit Ethernet PoE+++ Network Port 4 x 25 Gigabit Ethernet Expansion Slot 1 x Gigabit Ethernet Management Port 1 x Console Port 2 x 100 Gigabit Ethernet Stacking Port

Media & Performance

Media Type Supported	Twisted Pair Optical Fiber
Ethernet Technology	Ethernet Fast Ethernet Gigabit Ethernet 2.5 Gigabit Ethernet 5 Gigabit Ethernet 10 Gigabit Ethernet 25 Gigabit Ethernet 100 Gigabit Ethernet
Maximum Data Transfer Rate	12.50 GB/s
Switching Capacity	57.50 GB/s

I/O Expansions

Total Number of Expansion Slots	6
Expansion Slot Type	SFP28 QSFP28

Network & Communication

Layer Supported	3
Networking Standards	IEEE 802.1x

Management & Protocols

Manageable	Yes

Power Description

PoE (RJ-45) Port	Yes
PoE Budget	2.25 kW
Input Voltage	120 V AC 230 V AC
Frequency	50 Hz 60 Hz
Power Source	Power Supply AC/DC

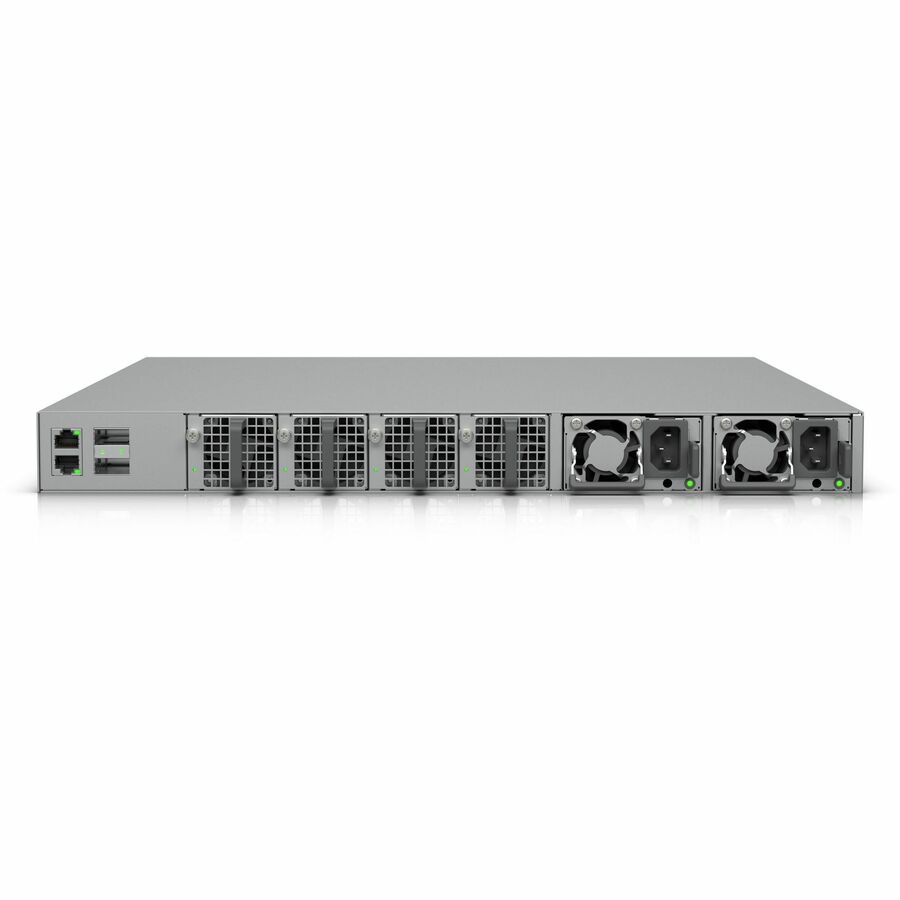

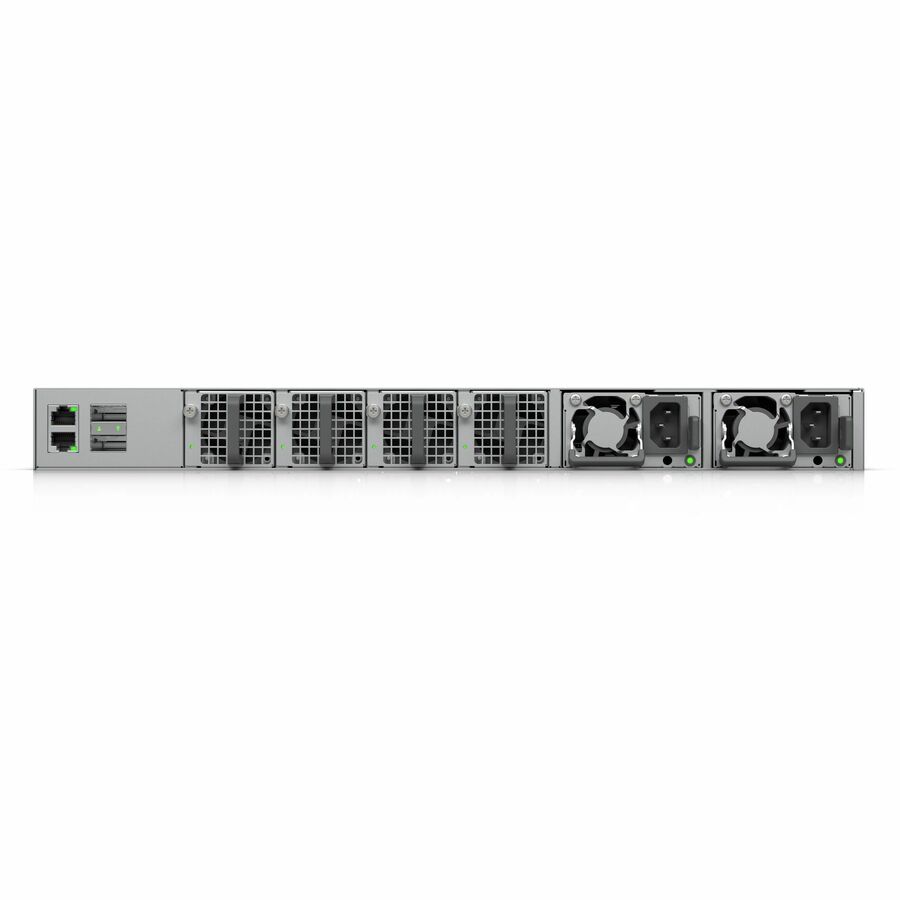

Redundant Power Supply Supported	Yes
Power Consumption	2400 W

Physical Characteristics

Product Material	SGCC Steel
Compatible Rack Unit	1U

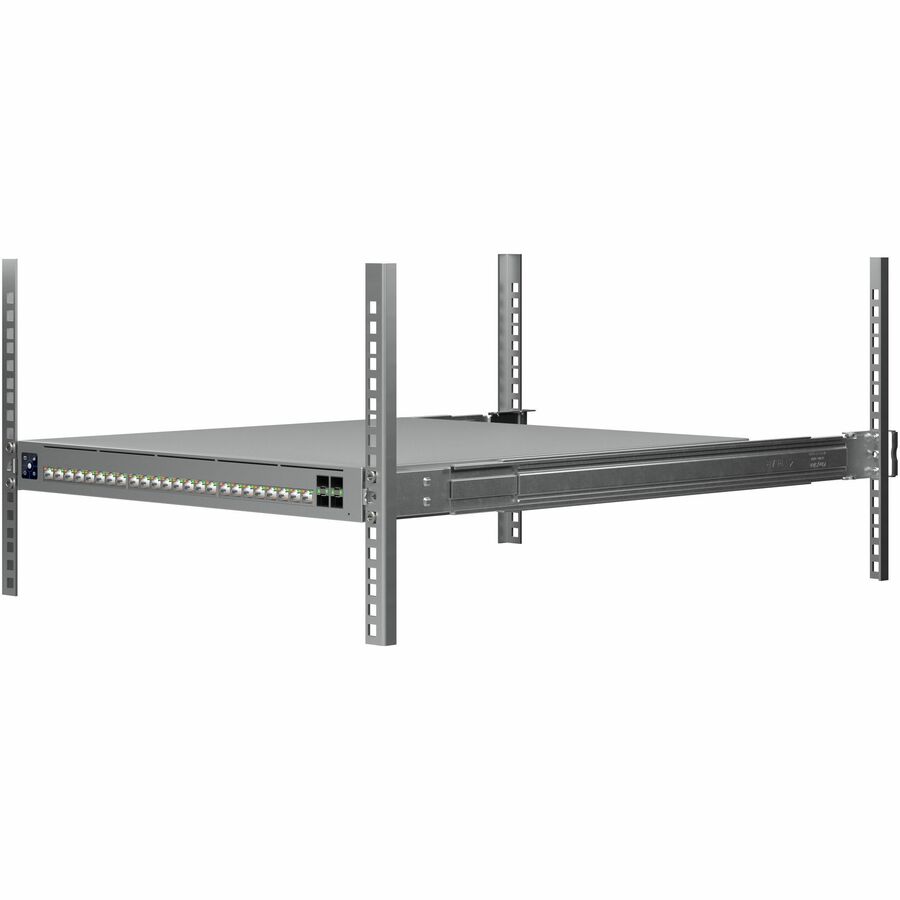

Form Factor	Rack-mountable Enclosure

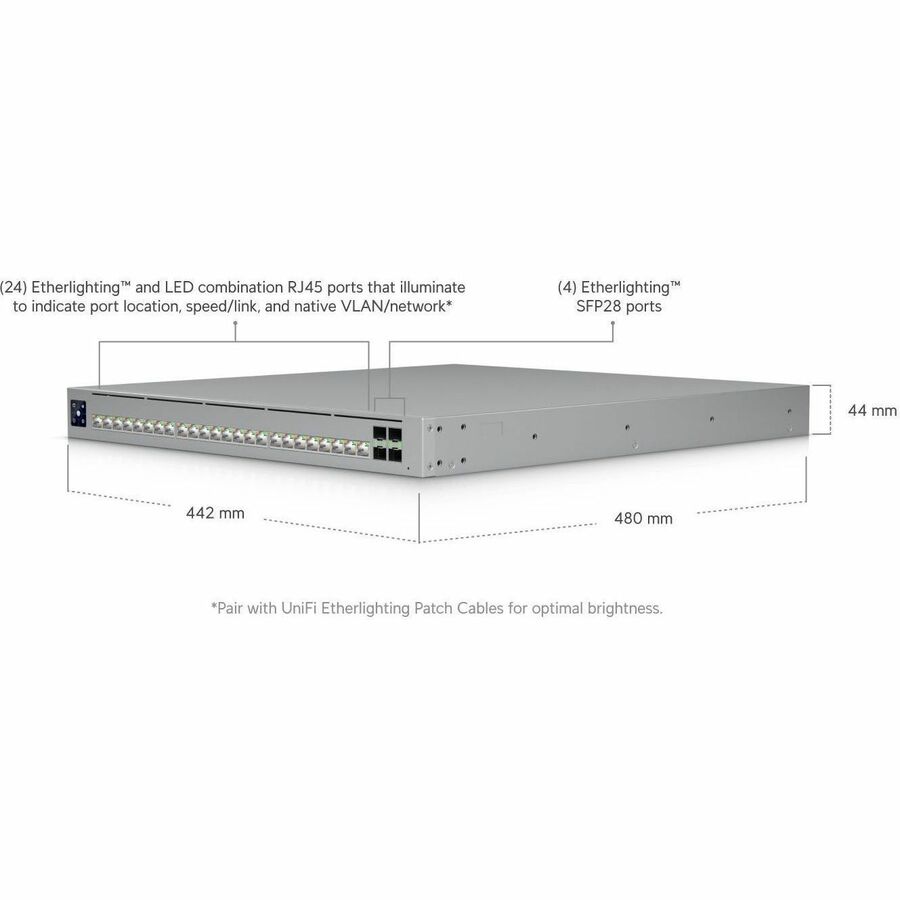

Height	1.70" (43.18 mm)
Width	19.50" (495.30 mm)
Depth	17.40" (441.96 mm)
Weight (Approximate)	20.28 lb (9200 g)

Miscellaneous

Application/Usage	Network Enterprise Campus Video Router
Condition	No
UPC	810177163183

modules (1)

Ubiquiti 25 Gbps Multi-mode Optical Module

Part No. UACC-OM-SFP28-SR

Ubiquiti 25 Gbps Multi-mode Optical Module - For Optical Network, Data Networking - 1 x LC Duplex 25GBase-SR Network - Optical Fiber - Multi-mode - 25 Gigabit Ethernet - 25GBase-SR

Shortrange, SFP28compatible optical transceiver module.

$75.99
