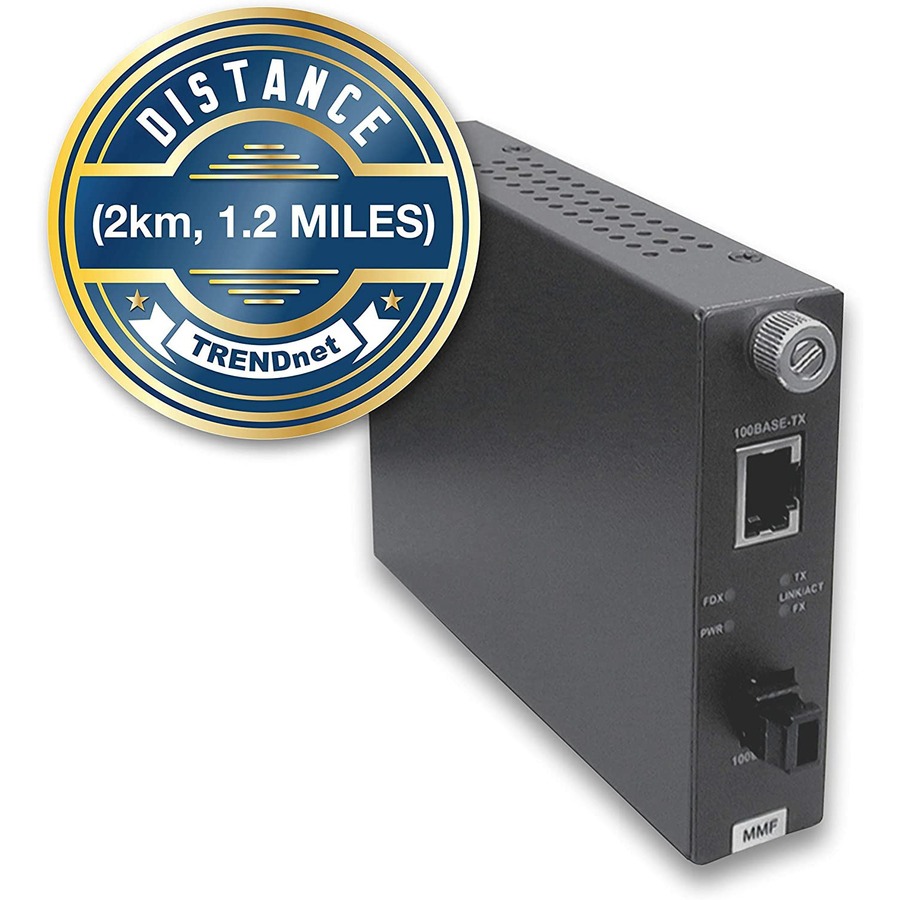

| Marketing Information | - MT-RJ type multi-mode fiber port connects over distances of up to 2km (1.2miles)
- 10/100Base-TX port supports Auto-Negotiation, Auto-MDIX and Full-Duplex mode

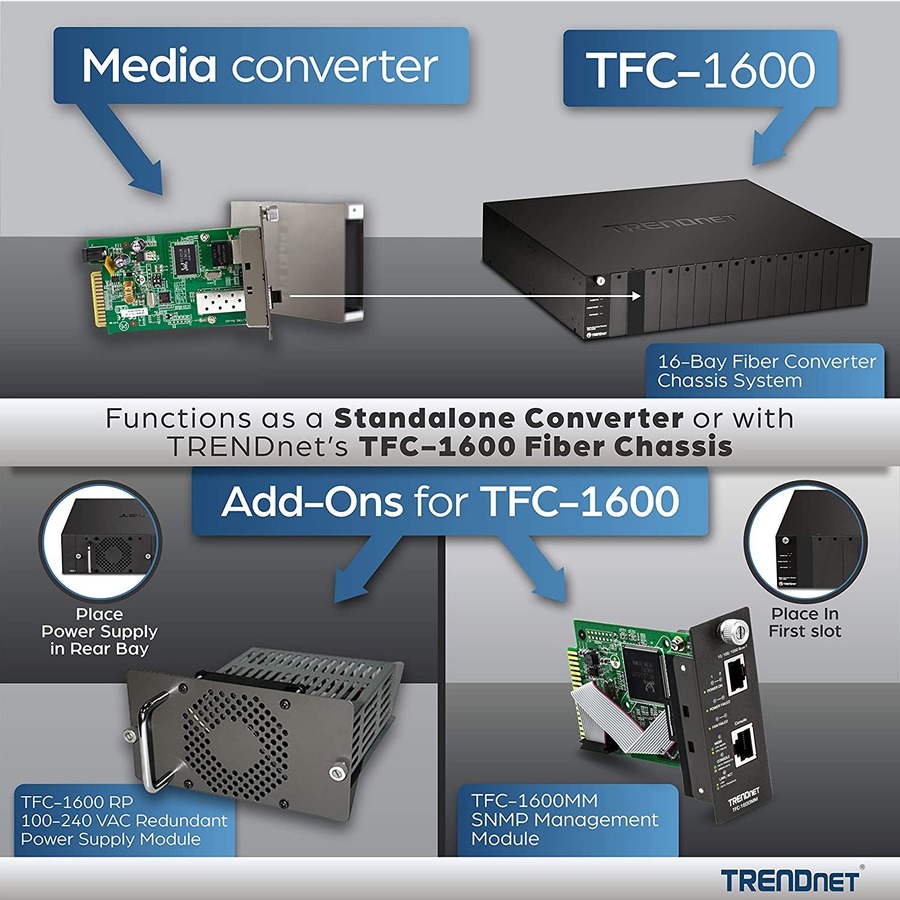

- Functions as a stand alone converter or with the TFC-1600 fiber chassis
- Compliant with IEEE 802.3 10Base-T and IEEE 802.3u 100Base-TX / 100Base-FX standards
- Lifetime TRENDnet Manufacturer's Warranty

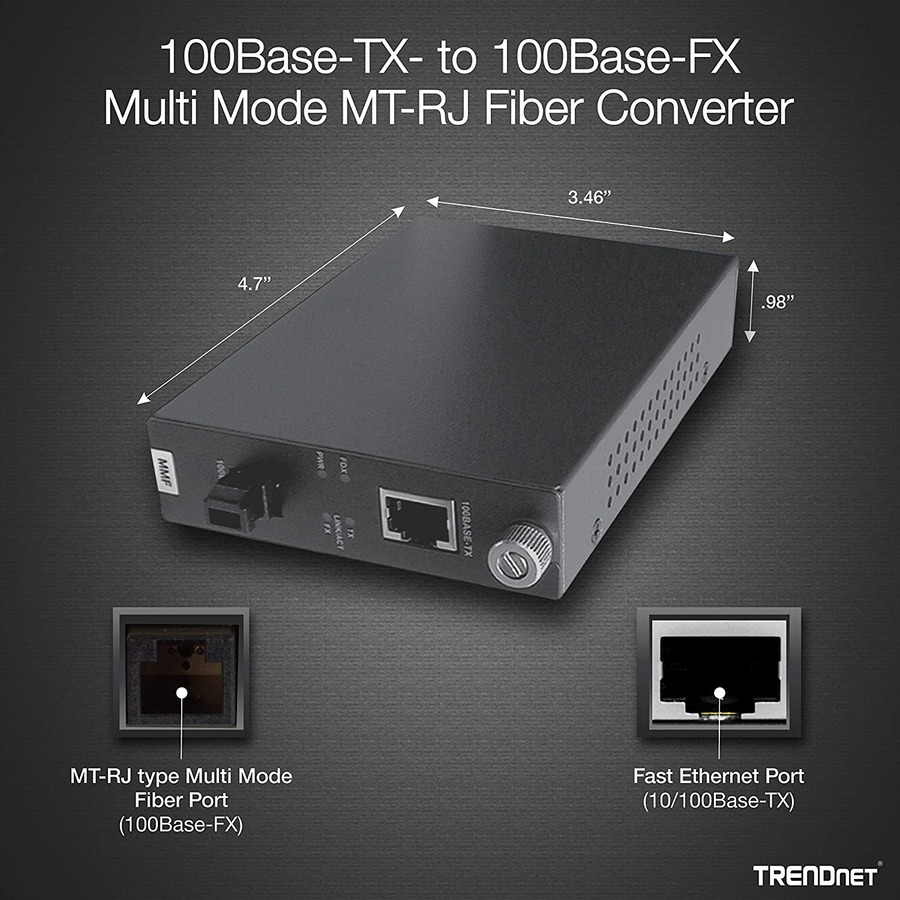

The TFC-110MM Fiber Converter works with the TFC-1600 chassis system or as a standalone unit. This converter is a Multi Mode MT-RJ Type fiber converter spanning distances up to 2km (1.2 miles). Ports include 1 x 10/100Base-TX (RJ-45) port and 1 x 100Base-FX fiber port (MT-RJ Type).
- Compliant with IEEE 802.3 10Base-T and IEEE 802.3u 100Base-TX / 100Base-FX standards
- 1 x 10/100Base-TX auto-negotiation RJ-45 port
- Auto-negotiation 10/100Mbps connection speed and half/full-duplex mode on TX port
- Auto MDIX for 10/100Base-TX port
- 1 x 100Mbps fiber port with multi-mode MT-RJ type connector
- Status LED indicators for Power, Link/Activity, Full-Duplex, and Speed
- Dip-switch for full and half duplex selection on fiber port
- Wall mountable
- Optional 19" system chassis with redundant power supply (TFC-1600), holds up to 16 TFC series Media Converters

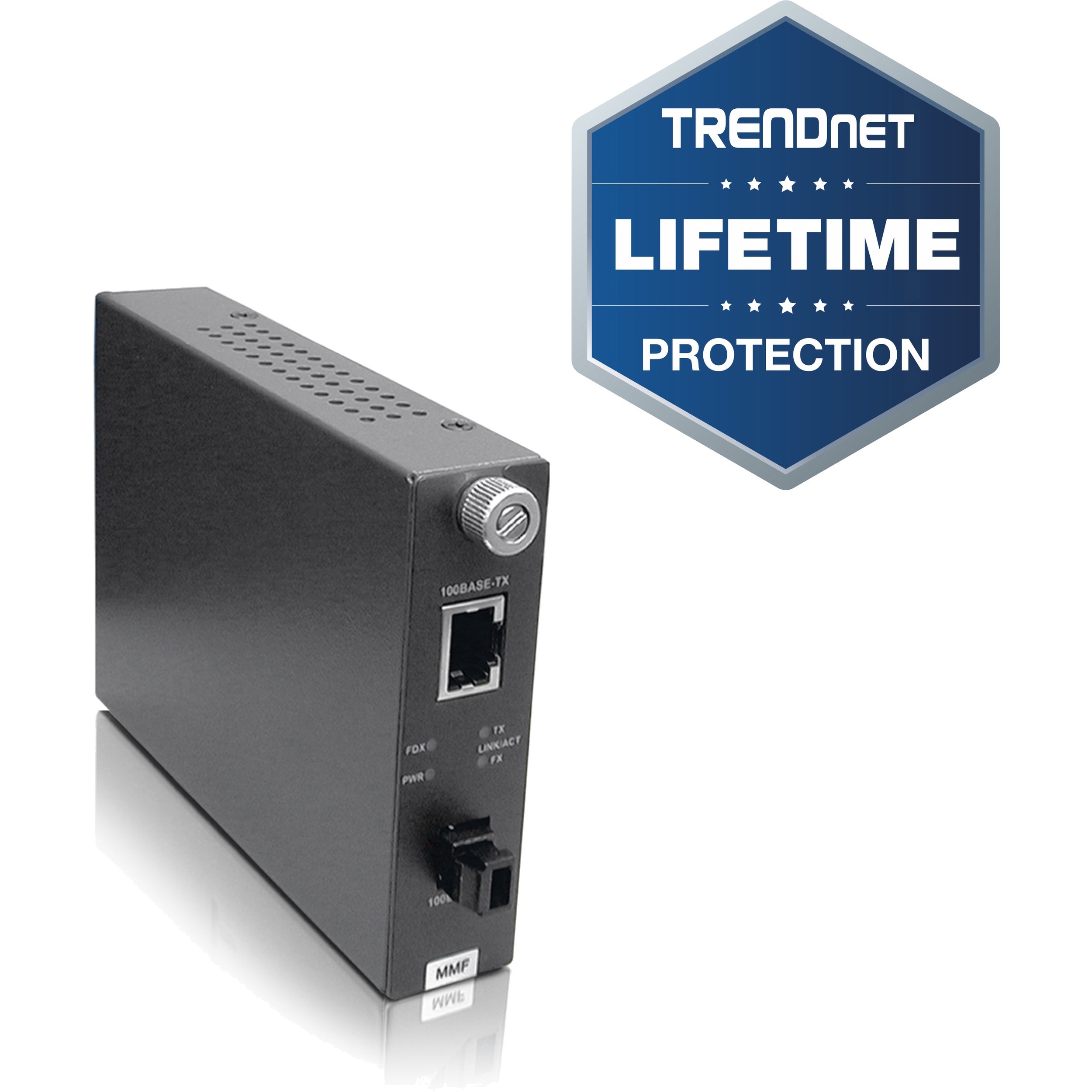

- Lifetime TRENDnet Manufacturer's Warranty
PACKAGE CONTENTS
TFC-110MM
Multi-Language Quick Installation Guide
Power Adapter (5V, 1A) More from the Manufacturer |
