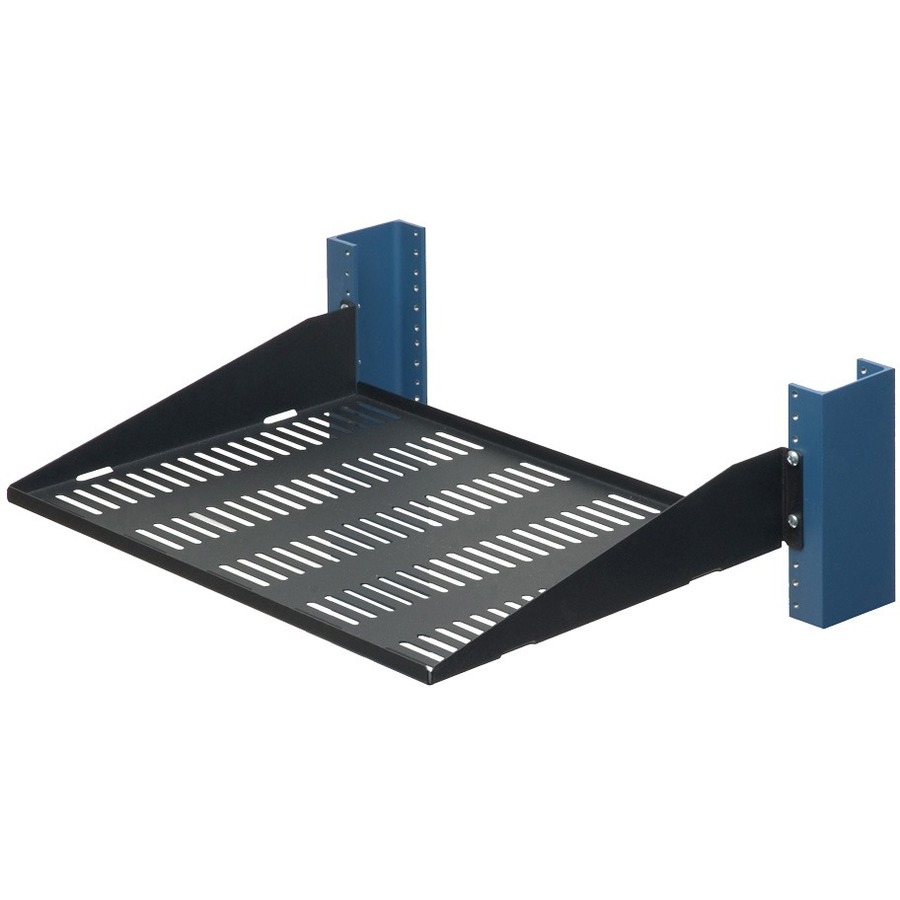

RackSolutions' fixed 2U Cantilever Rack Shelf has a depth of 13 inches, (330 mm) and a weight capacity of 60 lbs (27.2 kgs) making it perfect for rack mounting smaller networking, AV, and other equipment that might not ordinarily be rack-mountable. Our 2 Post rack shelves are compatible with most standard EIA 19" 2Post relay and telco racks and 4Post racks and cabinets. These fixed rack shelves are cantilever, meaning they mount to the rack at only one end of the shelf. Both vented and solid shelf options are available depending on your airflow needs. The shelf features flanges that can face either up or down meaning that the shelf can be mounted upside down to fit a wider variety of needs for different types of electronic equipment. Equipment strap slots found along the side of the shelf allow straps to be looped through the shelf to secure equipment to the shelf.

• 13in Relay Rack Shelf
• 12-24 and 10-32 screws

• Hole-to-Hole spacing is 18-5/16in
• Shelf depth is measured from front to rear including flanges
• Flanges Up
• The equipment can be deeper than the rack mount shelf as long as the equipment is installed on the opposite side of the flanges
• The flanges are used to increase the load bearing capacity of the rack mount shelf or used to prevent equipment movement
• Rack Shelves can mount up-side-down
• Durable Powder Coated Black finish

• 19" EIA-310 racks
