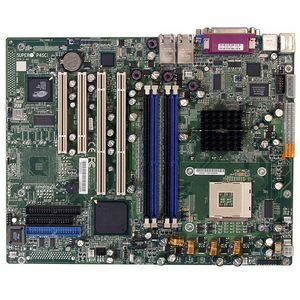

Supermicro P4SCi Workstation Motherboard - Intel E7210 Chipset - Socket PGA-478

Part No. MBD-P4SCi-O

by Supermicro Computer, Inc

This Product is currently not in offering

Supermicro P4SCi Workstation Motherboard - Intel E7210 Chipset - Socket PGA-478

Part No. MBD-P4SCi-O

by Supermicro Computer, Inc

This Product is currently not in offering

Specifications

General Information

Manufacturer	Supermicro Computer, Inc
Manufacturer Part Number	MBD-P4SCi-O
Brand Name	Supermicro
Product Model	P4SCi
Product Name	P4SCi Workstation Motherboard
Marketing Information	P4SCi Workstation Board supports single Intel Pentium 4 processors or Celeron processors up to 3.40 GHz (with Hyper Threading) at a system bus speed of 800/533/400 MHz. Pentium 4/Celeron processors are housed in a 478-pin micro PGA (Plastic Grid Array) package.
Packaged Quantity	1
Package Type	Retail
Product Type	Workstation Motherboard

Processor & Chipset

Chipset Manufacturer	Intel
Chipset Model	E7210
Total Processor Supported	1
Processor Socket	Socket PGA-478
Processor Supported	Pentium 4 (Extreme Edition) Pentium 4 Celeron

Memory

Number of Memory Slots	4
Maximum Memory Supported	4 GB
Memory Speed Supported	400 MHz 333 MHz 266 MHz
Memory Standard	DDR266/PC2100 DDR333/PC2700 DDR400/PC3200
Memory Technology	DDR SDRAM

I/O Controller

Controller Type	Floppy Controller Serial ATA Ultra ATA/100 (ATA-6)

Video

Onboard Video	On-board Video Chipset
Graphics Controller Model	Rage-XL

Network & Communication

Gigabit Ethernet	Yes

I/O Expansions

Total Number of Expansion Slots	4

Interfaces/Ports

Total Number of USB Ports	2
Number of USB 2.0 Ports	2
VGA	Yes

Onboard Interfaces

Number of SATA Interfaces	2
Total Number of Onboard USB Ports	1

Physical Characteristics

Width	12" (304.80 mm)
Depth	9.50" (241.30 mm)

Miscellaneous

Package Contents	1 x P4SCi Motherboard 1 x Manual for P4SCi 1 x 478 Pin CPU Retention Module 1 x 9-pin Serial Port Cable 1 x ATX Floppy Cable 1 x ATA 66/100 IDE LP Cable 2 x 2 Ft. Amphenol Serial ATA Cable 1 x Version 1.10 Chipset Driver CD 1 x I/O Shield For Dual LAN

Warranty

Limited Warranty	3 Year
