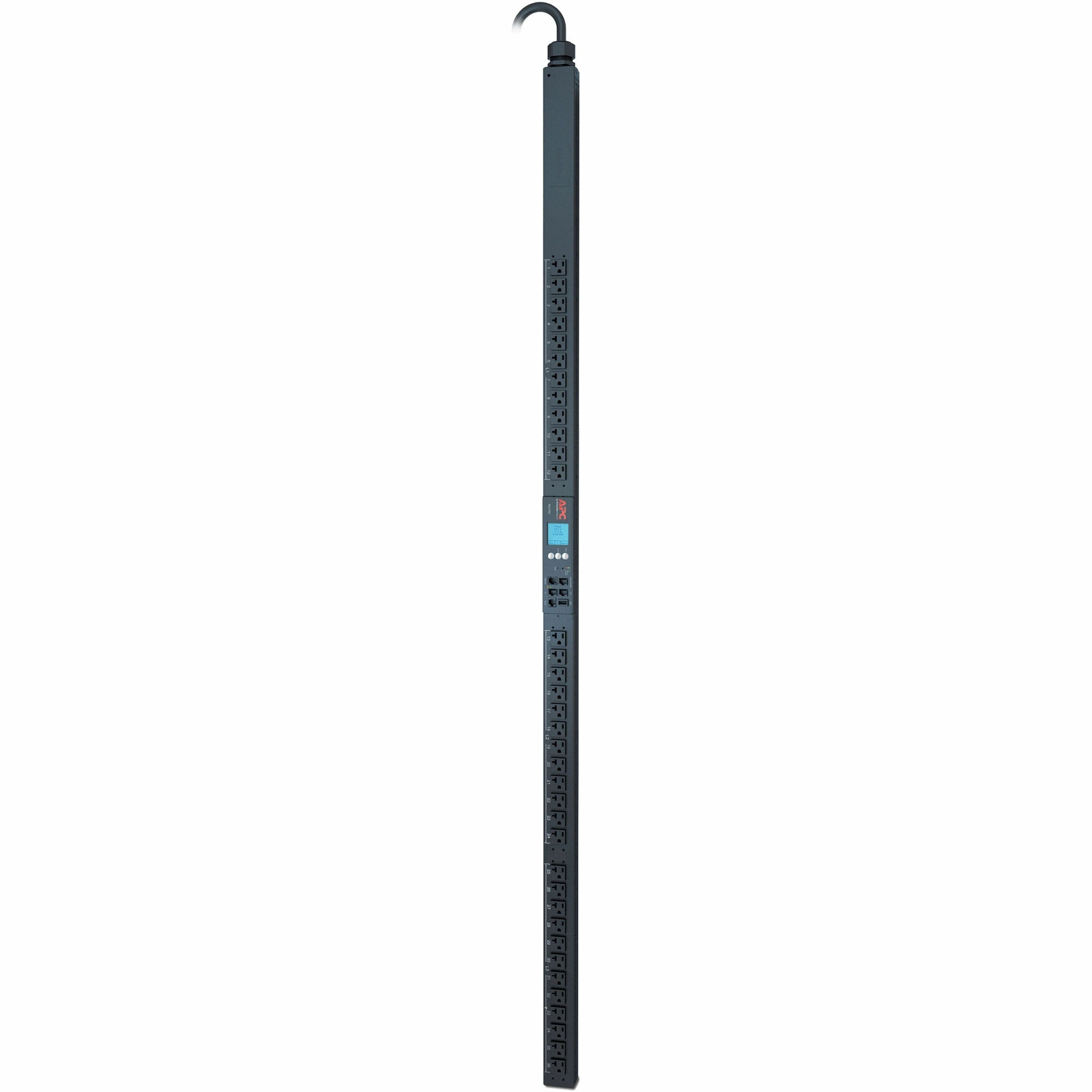

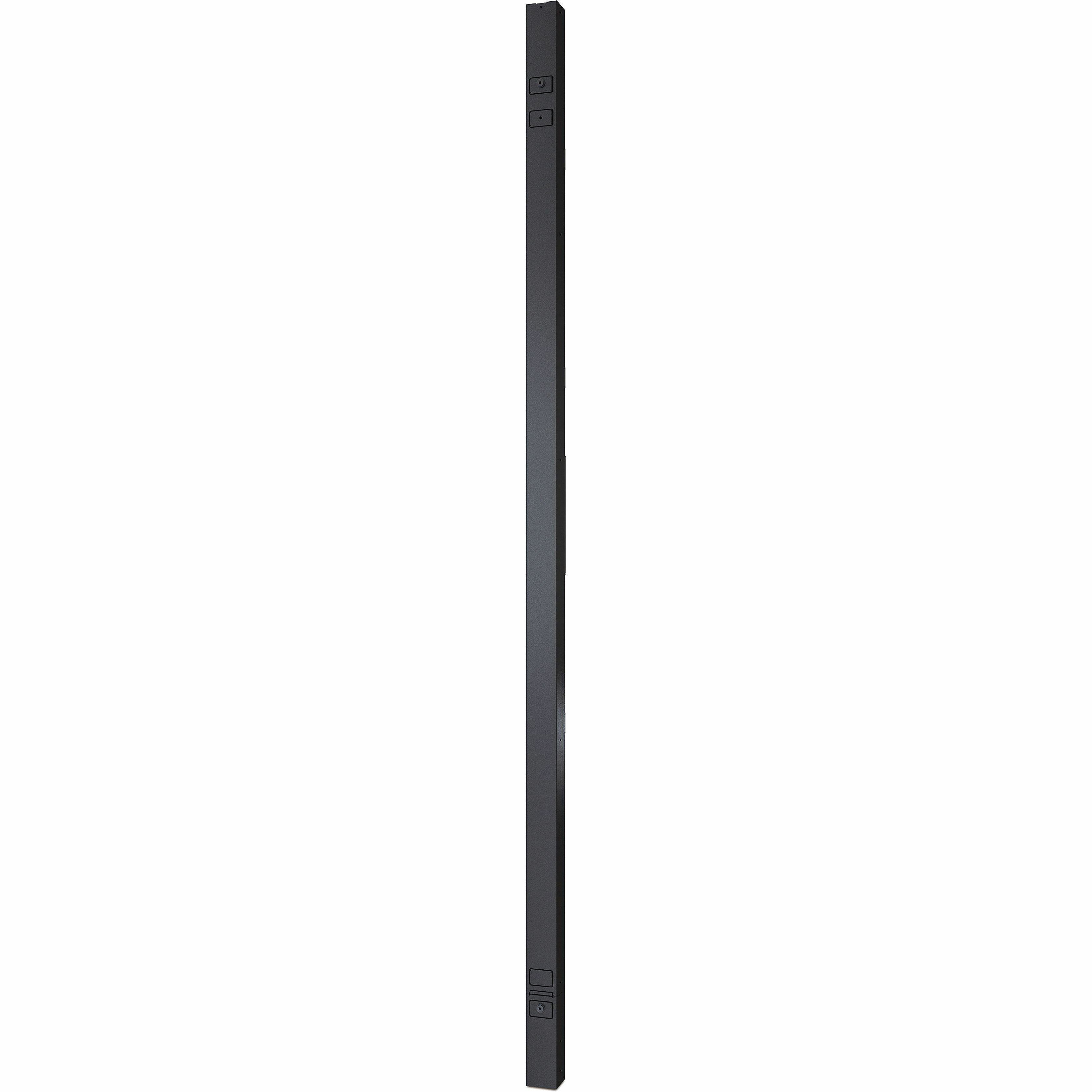

APC by Schneider Electric Metered Rack PDU
In Stock Availability
- All Locations: (4+)
- Toronto, ON (4+)
| Manufacturer | Schneider Electric SA |
| Manufacturer Part Number | AP8862 |
| Brand Name | APC by Schneider Electric |
| Product Name | Metered Rack PDU |
| Marketing Information | APC Metered Rack Power Distribution Units (PDUs) provide active metering to enable energy optimization and circuit protection User-defined alarm thresholds mitigate risk with real-time local and remote alerts to warn of potential circuit overloads Metered Rack PDUs provide power utilization data to allow Data Center Managers to make informed decisions on load balancing and right sizing IT environments to lower total cost of ownership Metered Rack PDUs include real power monitoring, a temperature/humidity sensor port, locking IEC receptacles, and ultra low profile circuit breakers Users can access and configure Metered Rack PDUs through secure Web, SNMP, or Telnet Interfaces which are complimented by APC Centralized Management platforms using InfraStruxure Central, Operations, Capacity, and Energy Efficiency |
| Packaged Quantity | 1 Each |
| Product Type | PDU |
| PDU Type | Metered |
| Plug/Connector Type | NEMA L21-20P |
| Receptacle Type | NEMA 5-20R |
| Receptacle Detail | 36 x NEMA 5-20R |
| Protection Type | Circuit Protection |
| Input Voltage | 208 V |
| Output Voltage | 120 V AC |
| Power Rating (VA) | 5.76 kVA |
| Input Current | 20 A |
| Circuit Breaker | Yes |
| Management |
|
| Color Family | Black |
| Product Color | Black |
| Mounting Orientation | Vertical |
| Mounting Preference | No Preference |
| Mount Type | Rack-mountable |
| Placement | Side |
| Rack Height | 0U |
| Number of Cord/Cable | 1 |
| Cord Length | 6 ft (1.82 m) |
| Height | 70.51" (1791 mm) |
| Width | 2.20" (55.88 mm) |
| Depth | 1.73" (44 mm) |
| Weight (Approximate) | 13.32 lb (6041.85 g) |
| For Country/Region | United States |
| Package Contents | |
| Certifications & Standards | cUL Listed|UL Listed |
| Optimized Energy Efficiency | Yes |
| Product Take Back Program | No |
| REACH free of SVHC | Yes |
| Mercury Free | Yes |
| Lead Free | Yes |
| RoHS Exemption Information | https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=AP8862_ROHS_DECLARATION&p_FileName=AP8862KIT_ROHS_DECLARATION_US.pdf |
| REACH Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=433134893&lang=en-us |
| EU RoHS Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=433134893&lang=en-us |
| Environmental Profile Availability | https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1712014_EN |
| End of Life Manual Availability | https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1712014_EN |
| Country of Origin | India |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Condition | No |
| UPC | 0731304307488 |
| Limited Warranty | 2 Year |
| Additional Warranty Information | 2 years repair or replace |
