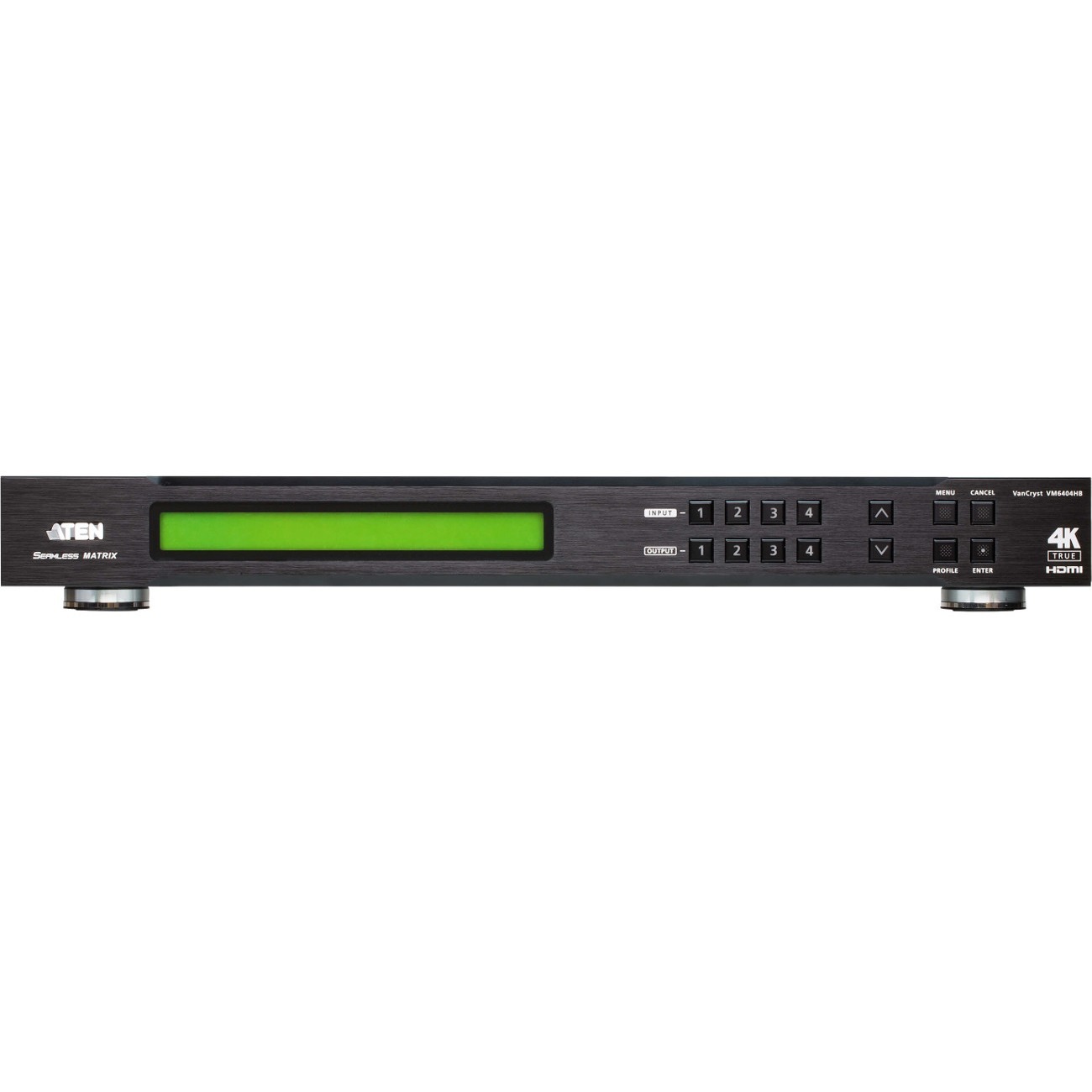

ATEN 4 x 4 True 4K HDMI Matrix Switch with Scaler
On back-order, will ship once in-stock
- All Locations: (0+)
| Manufacturer | ATEN Technology, Inc |
| Manufacturer Part Number | VM6404HB |
| Brand Name | ATEN |
| Product Line | VanCryst |
| Product Model | VM6404HB |
| Product Name | 4 x 4 True 4K HDMI Matrix Switch with Scaler |
| Marketing Information | True 4K Pro AV solutions with High Dynamic Range (HDR) technology is the trend of high-definition video that delivers the ultimate visual experience with exceptional sharp and vibrant video quality. ATEN's VM6404HB True 4K HDMI Matrix Switch with Scaler is compatible with the latest True 4K video resolutions of 4096 x 2160 / 3840 x 2160@60Hz (4:4:4) and HDR, guaranteeing crystal-clear images across four displays. The VM6404HB supports 4K@60Hz, HDMI 2.0, and HDCP 2.2 and features Seamless Switch™ that employs an FPGA matrix architecture that ensures continuous video streams, real-time control, and stable signal transmissions. With a built-in high-performance scaler, the VM6404HB easily converts various input resolutions into various output display resolutions, giving viewers the best video and picture quality across all displays. The switch integrates video wall functionality with an easy-to-use web GUI that lets you create 8 connection profiles that can be customized into different video wall layouts. The VM6404HB is an ideal solution for applications that require multiple HDMI displays with multiple HDMI sources to be conveniently set up - such as for stage presentations, digital classroom, video conference rooms, and any installation that requires real-time synchronization. |
| Packaged Quantity | 1 |
| Product Type | Audio/Video Switchbox |
| Connectivity Technology | Cable |
| Number of Input Devices Supported | 4 |
| Device Supported | Display |
| Number of Displays Supported | 4 |
| Graphics Modes | 4K |
| Maximum Video Resolution | 3840 × 2160 |
| HDMI In | Yes |
| HDMI Out | Yes |
| Connectivity (RJ-45) | Yes |
| Number of Connectivity (RJ-45) Ports | 1 |
| Number of HDMI Inputs | 4 |
| Number of HDMI Outputs | 4 |
| Media Type Supported | Twisted Pair |
| Maximum Operating Distance | 118.11" (3000 mm) |
| Form Factor | Desktop |
| Height | 1.73" (44 mm) |
| Width | 10.33" (262.30 mm) |
| Depth | 17.02" (432.40 mm) |
| Weight (Approximate) | 3.52 kg |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Environmental Compliance |
|
| Condition | No |
| UPC | 672792011351 |
| Limited Warranty | 3 Year |
