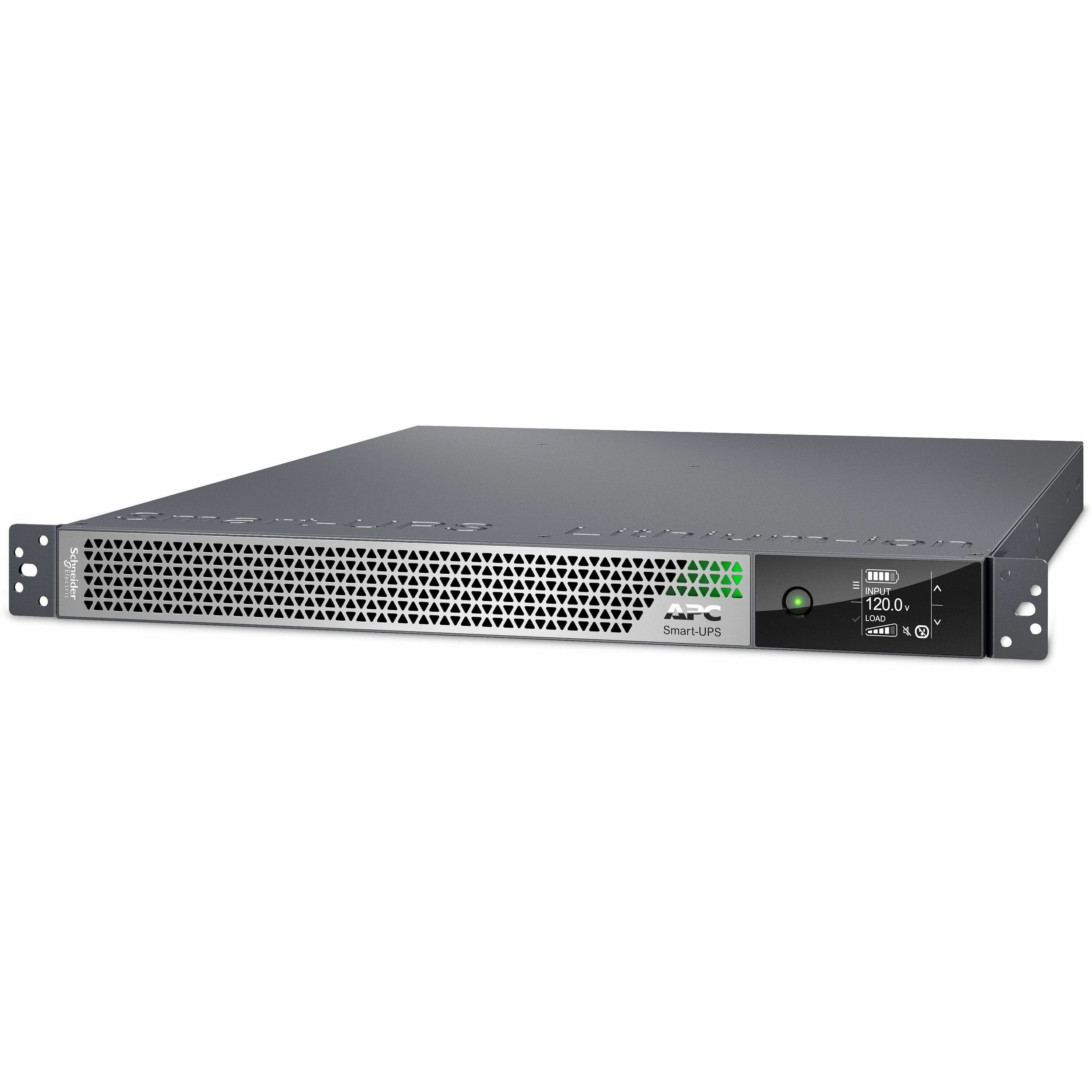

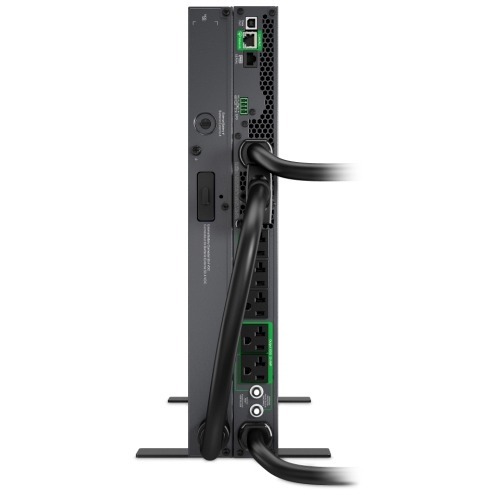

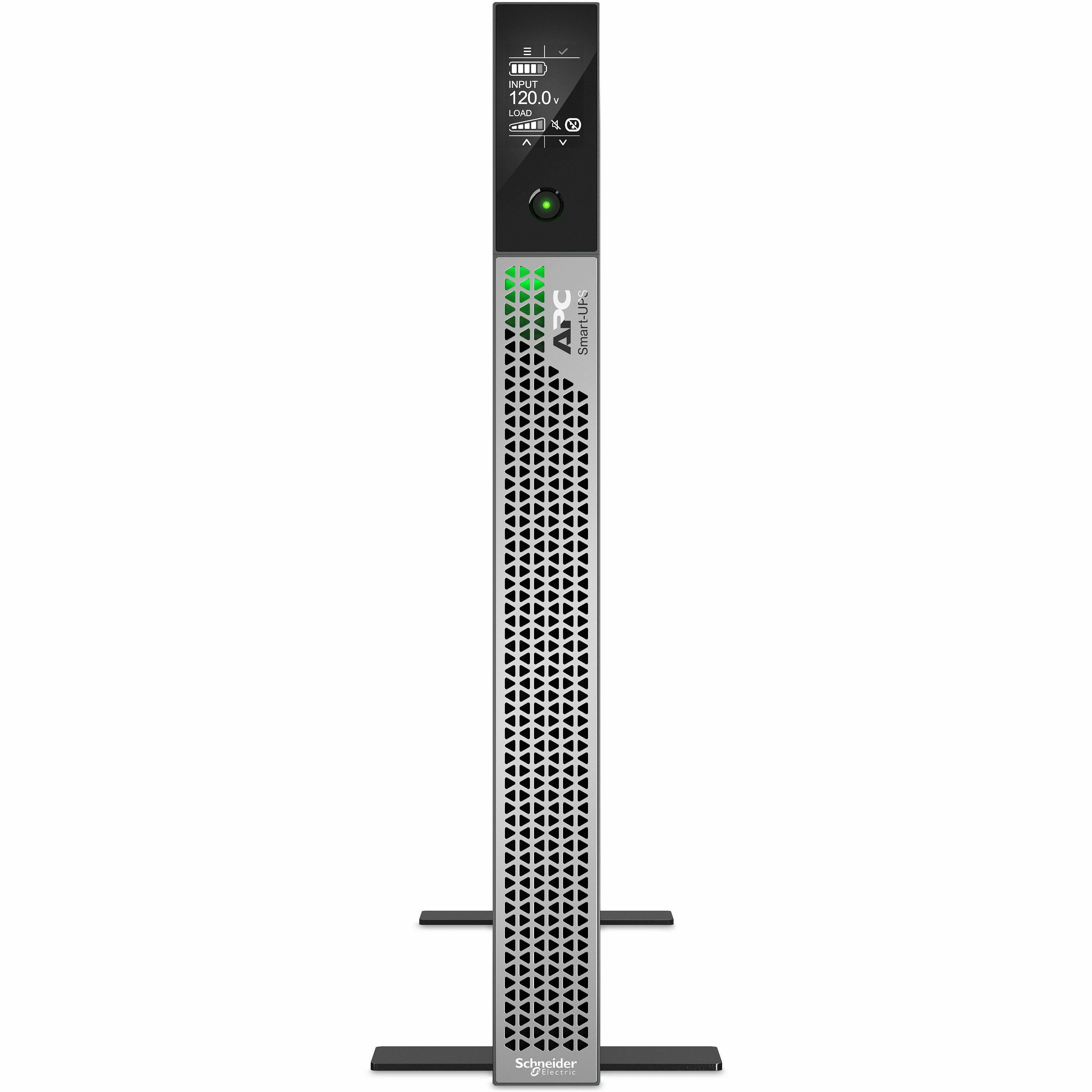

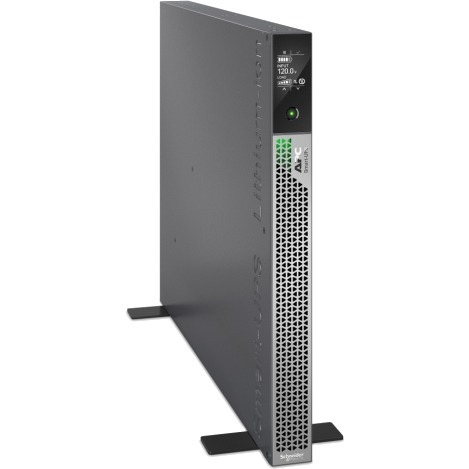

APC Smart-UPS Ultra On-Line, 3000VA, Lithium-ion, Rack/Tower 1U, 120V, 5x 5-20R, 1x L5-30R NEMA outlets, SmartConnect, Extended runtime, W/rail kit
On back-order, will ship once in-stock
- All Locations: (0+)
| Manufacturer | Schneider Electric SA |
| Manufacturer Part Number | SRTL3KRM1UC |
| Brand Name | APC by Schneider Electric |
| Product Line | Smart-UPS Ultra |
| Product Name | Smart-UPS Ultra 3000VA Tower/Rack Convertible UPS |
| Marketing Information | This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 3kVA on-line 1U rackmount UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. The SRTL comes with NEMA L5-30P input, 5x NEMA 5-20R and 1x NEMA L5-30R outlets. This Smart-UPS offers cloud-based remote power monitoring, UPS firmware upgrades, remote diagnostics and proactive email notifications with recommended actions. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 5-year warranty on the UPS and Lithium-ion battery. The SRTL delivers clean power with zero transfer time for critical or sensitive devices. Ideal for servers, storage, voice/data networks, medical labs, and light industrial applications. |
| Product Type | Dual Conversion Online UPS |
| AVR | Yes |
| Plug/Connector Type | NEMA L5-30P |
| Receptacle Type | NEMA L5-30P |
| Receptacle Detail |
|
| Number of Battery & Surge Outlets | 6 |
| Cord Length | 7.9 ft (2.40 m) |
| Phase | Single Phase |
| Application/Usage |
|
| Load Capacity (VA) | 2.88 kVA |
| Load Capacity (Watt) | 2.88 kW |
| Input Voltage |
|
| Output Voltage |
|
| Input Frequency | 60 Hz |
| Output Frequency | 60 Hz |
| Waveform Type | Sine Wave |
| Status Indicators | Multifunction LCD |
| Network (RJ-45) | Yes |
| EPO Port | Yes |
| USB (HID Compliant) Port | Yes |
| DC System Voltage | 50 V DC |
| Battery Chemistry | Lithium Ion (Li-Ion) |
| Typical Battery Recharge Time | 1.50 Hour |
| Maximum Operating Temperature | 104°F (40°C) |
| Storage Temperature | 5°F (-15°C) - -49°F (-45°C) |
| Storage Relative Humidity | 0% - 95% |
| Sound Emission (A-Weighted) | 55 dB(A) |
| Color Family | Silver |
| Product Color | Silver Gray |
| Height | 1.69" (43 mm) |
| Width | 17.01" (432 mm) |
| Depth | 22.05" (560 mm) |
| Rack Height | 1U |
| Form Factor | Tower/Rack Convertible |
| Mounting Preference | No Preference |
| Weight (Approximate) | 35.05 lb (15898.41 g) |
| For Country/Region | United States |
| Package Contents |
|
| Certifications & Standards | UL/cUL listed|FCC |
| Optimized Energy Efficiency | Yes |
| Product Take Back Program | Yes |
| Mercury Free | Yes |
| RoHS Exemption Information | https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SRTL3KRM1UC_ROHS_DECLARATION&p_FileName=SRTL3KRM1UCKIT_ROHS_DECLARATION_US.pdf |
| REACH Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=540735189&lang=en-us |
| EU RoHS Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=540735189&lang=en-us |
| Environmental Profile Availability | https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP2311011_V1 |
| End of Life Manual Availability | https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI2311011_V1 |
| REACH free of SVHC | No |
| Toxic Heavy Metal Free | Yes |
| WEEE Statement | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Condition | No |
| UPC | 0731304435532 |
| Limited Warranty | 5 Year |
| Additional Warranty Information | 5 years repair or replace |
