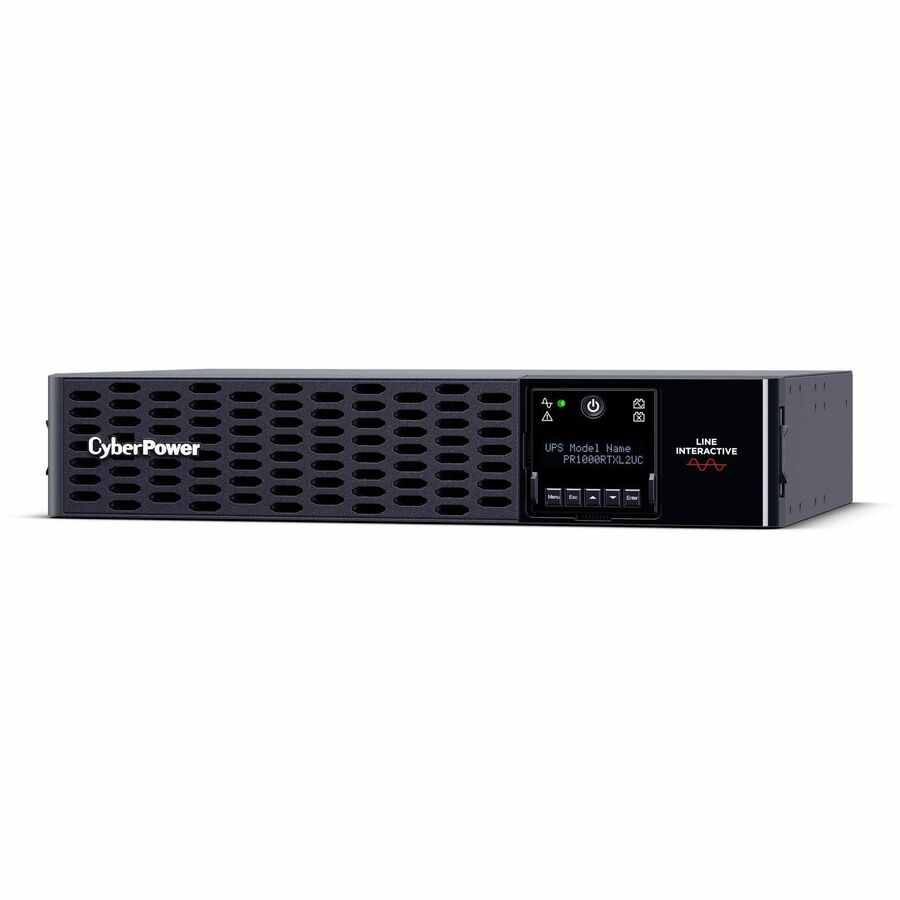

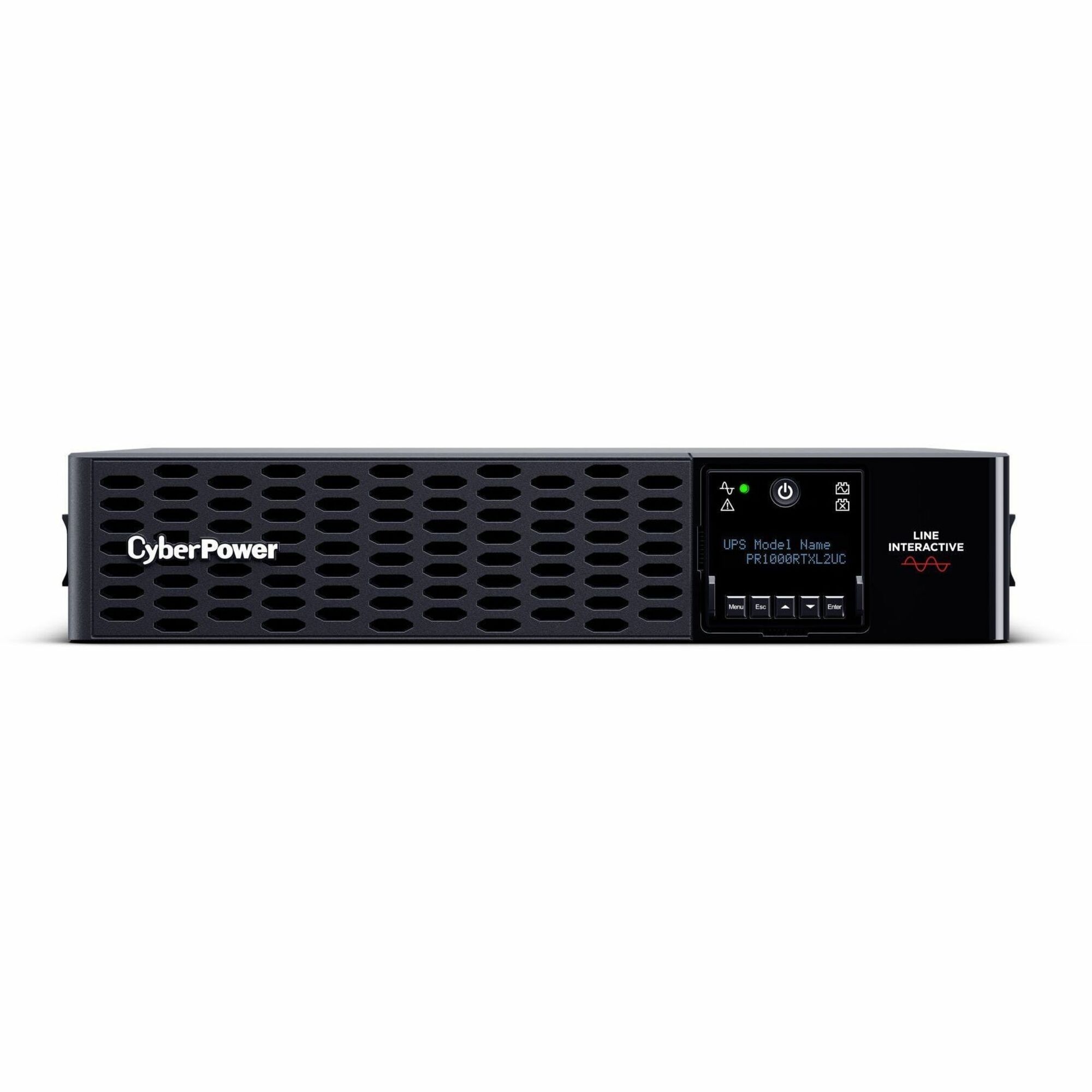

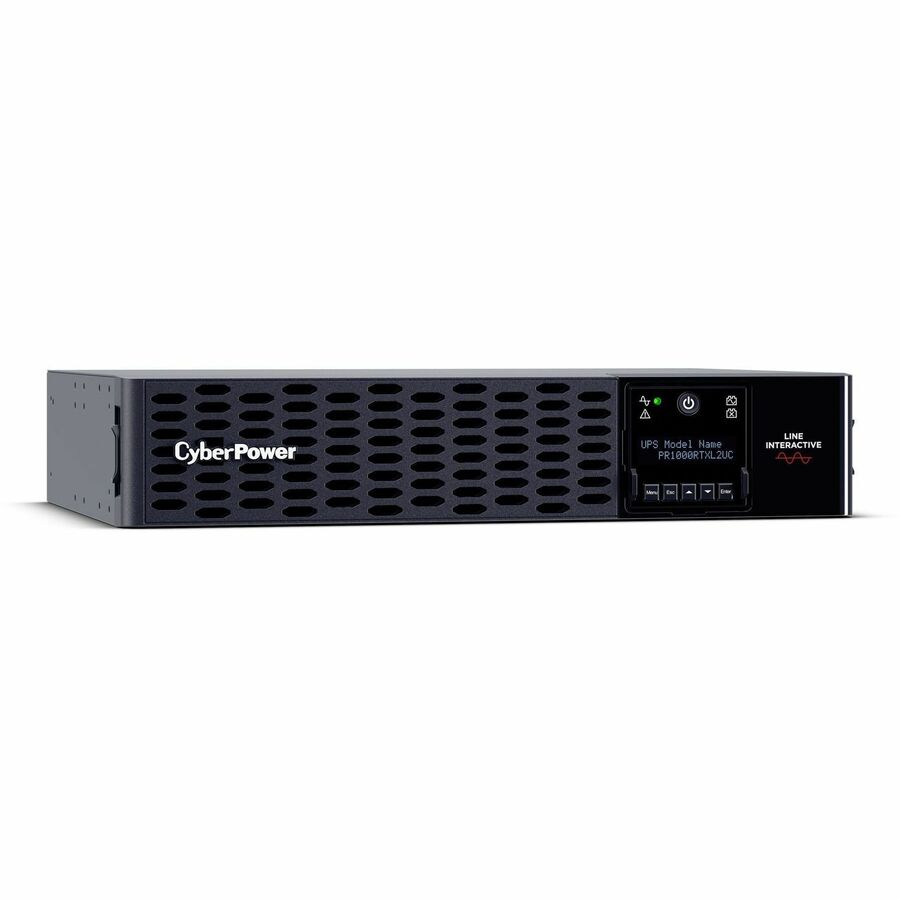

CyberPower PR1000RTXL2UC Smart App Sinewave UPS Systems
In Stock Availability
- All Locations: (3+)
- Toronto, ON (3+)
| Manufacturer | CyberPower Systems, Inc |
| Manufacturer Part Number | PR1000RTXL2UC |
| Brand Name | CyberPower |
| Product Series | Smart App Sinewave |
| Product Model | PR1000RTXL2UC |
| Product Name | PR1000RTXL2UC Smart App Sinewave UPS Systems |
| Marketing Information | The PR1000RTXL2UC is a Smart App Sinewave rack/tower convertible UPS with line-interactive topology, surge protection, and battery backup. CyberPower's Smart App Sinewave series has sine wave output to eliminate power gaps that can be detected by sensitive equipment and cause unexpected shutdowns. The Smart App Sinewave PR1000RTXL2UC improves battery life through battery equalization technology and Automatic Voltage Regulation (AVR), which corrects minor power fluctuations without switching to battery power. The enhanced chassis design with an easy-to-access toolless front panel, captive screws for battery panel access, and color-coded rear panel make battery changes and installations simple and fast. The PR1000RTXL2UC also has an innovative LCD panel that rotates 90°, tilts for a better viewing angle, and provides information on 47 different settings including UPS stats, UPS setup and control management, and testing options. This model accepts the BP48VP2U01 Extended Battery Module (EBM) for expanded runtime during power outages and the RMCARD205 network management card for remote management and control via a standard web browser or network management system. Includes built in cloud monitoring. With a $400,000 connected equipment guarantee and a three-year warranty, you can trust CyberPower's commitment to the quality of the PR100RTXL2UC. |
| Product Type | Line-interactive UPS |
| AVR | Yes |
| Plug/Connector Type | NEMA 5-15P |
| Receptacle Type | NEMA 5-15R |
| Receptacle Detail | 8 x NEMA 5-15R |
| Number of Battery & Surge Outlets | 8 |
| Number of Critical Load Outlets | 4 |
| Overload Protection | Yes |
| Cord Length | 10 ft (3.05 m) |
| Transfer Time | 11 ms |
| EMI/RFI Noise Filter | Yes |
| Energy Saving | GreenPower UPS™ Bypass Technology |
| Application/Usage |
|
| Surge Suppression | Yes |
| Load Capacity (VA) | 1 kVA |
| Load Capacity (Watt) | 1 kW |
| Input Voltage | 120 V AC |
| Input Voltage Range |
|
| Output Voltage |
|
| Input Frequency |
|
| Output Frequency |
|
| Waveform Type | Sine Wave |
| Surge Energy Rating | 2430 J |
| Circuit Breaker | Yes |
| Output Power Factor | 1 |
| Display | LCD |
| Network Management |
|
| Alarm |
|
| Status Indicators | LED Indicators:
|

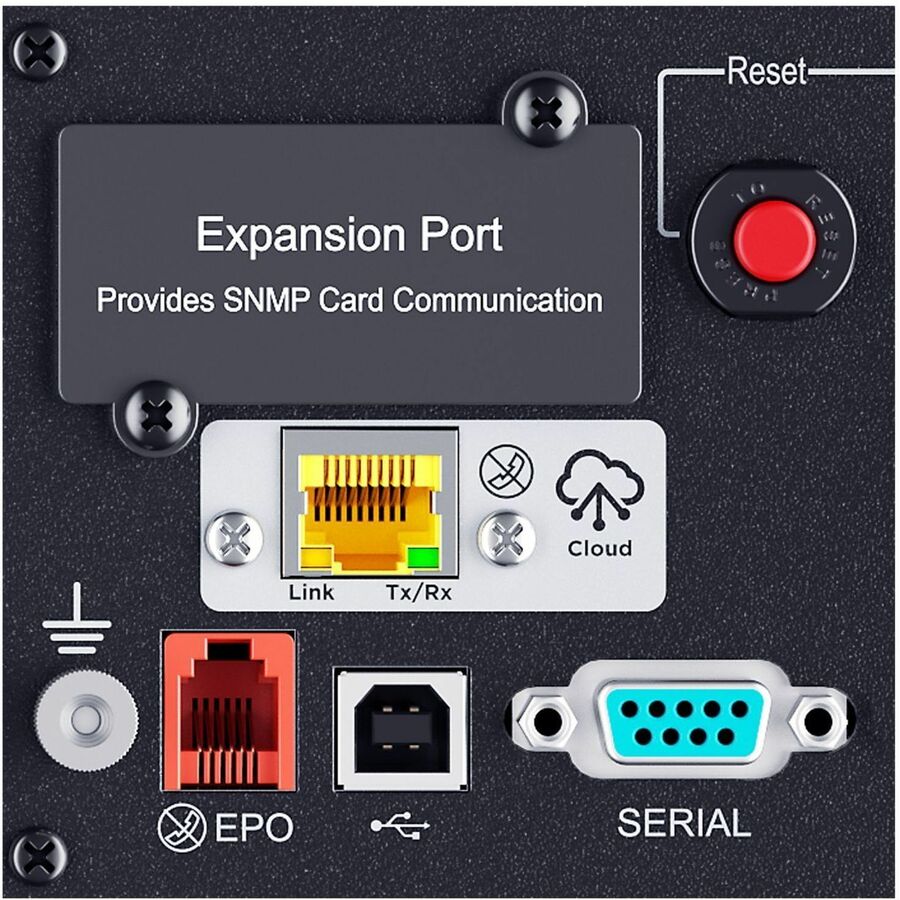

| Serial Port | Yes |
| USB | Yes |
| EPO Port | Yes |
| USB (HID Compliant) Port | Yes |
| Number of Batteries | 4 |
| Battery Characteristics | Sealed |
| Battery Chemistry | Lead Acid |
| Battery Size | 12V |
| Battery Capacity | 7000 mAh |
| Backup/Run Time (Full Load) | 8 Minute |
| Backup/Run Time (Half Load) | 20 Minute |
| Typical Battery Recharge Time | 3 Hour |
| Hot Swappable | Yes |
| Replaceable Battery | Yes |
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Operating Temperature | 104°F (40°C) |
| Storage Temperature | 5°F (-15°C) - 113°F (45°C) |
| Maximum Operating Elevation | 9842.52 ft (3000000 mm) |
| Maximum Storage Elevation | 49209.32 ft (14999000 mm) |
| Operating Humidity | 0% - 95% |
| Thermal Dissipation | 48.60 BTU/h |
| Color Family | Black |
| Product Color | Black |
| Height | 3.40" (86.36 mm) |
| Width | 17.10" (434.34 mm) |
| Depth | 19.70" (500.38 mm) |
| Rack Height | 2U |
| Form Factor | Rack/Tower |
| Weight (Approximate) | 55.30 lb (25083.66 g) |
| Additional Information | |
| Certifications & Standards | UL1778 |
| Energy Star | Yes |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Condition | No |
| UPC | 0649532935543 |
| Limited Warranty | 3 Year |
| Additional Warranty Information | Connected Equipment Guarantee: Lifetime |
| Directly Connected Equipment Guarantee | $400000 Lifetime |
