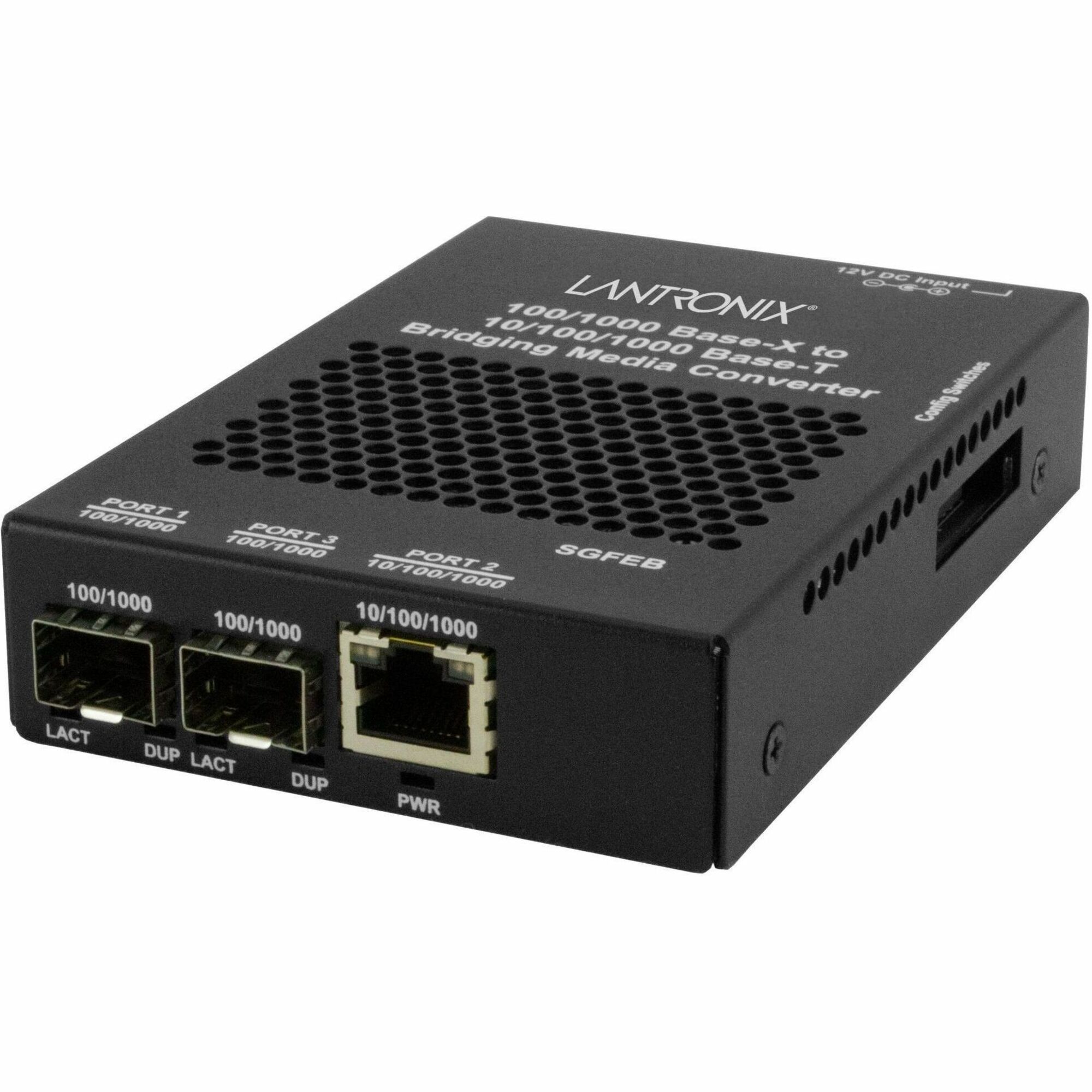

Lantronix SGFEB1040-230 Transceiver/Media Converter
1 x Network (RJ-45) - Gigabit Ethernet - 10/100/1000Base-T, 100/1000Base-X - 1000 Mbit/s - 0.10 km (0.06 Mile) - 2 x Expansion Slots - SFP - 2 x SFP Slots - AC Adapter - Wall Mountable, Rail-mountable, Rack-mountable, Standalone
$568.99
On back-order, will ship once in-stock
- All Locations: (0+)
General Information
| Manufacturer | Lantronix, Inc |
| Manufacturer Part Number | SGFEB1040230LA |
| Brand Name | Lantronix |
| Product Series | SGFEB |
| Product Model | SGFEB1040-230 |
| Product Name | SGFEB1040-230 Transceiver/Media Converter |
| Marketing Information | Stand-alone Gigabit Ethernet Media and Rate Converter 10/100/1000Base-T to 1000Base-SX/LX The SGFEB Series is a stand-alone media converter that provides an interface between 10/100/1000Base-T ports and 1000Base-SX/LX ports, allowing users to integrate fiber optic cabling into 10/100/1000 copper environments. Operating at Layer 2, the data link layer, this converter not only converts copper to fiber, it also provides rate conversion allowing legacy 10/100 copper devices to connect to 1000Base-SX/LX fiber. |
| Product Type | Transceiver/Media Converter |
Interfaces/Ports
| Total Number of Ports | 1 |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 1 |
Media & Performance
| Media Type Supported |
|
| Maximum Data Transfer Rate | 1000 Mbit/s |
| Maximum Distance Supported | 0.10 km (0.06 Mile) |
I/O Expansions
| Total Number of Expansion Slots | 2 |
| Expansion Slot Type | SFP |
| Number of SFP Slots | 2 |
Network & Communication
| Ethernet Technology | Gigabit Ethernet |
| Network Technology |
|
Power Description
| Power Source | AC Adapter |
| Input Voltage |
|
| Power Consumption | 2.20 W |
Physical Characteristics
| Form Factor |
|
| Height | 1" (25.40 mm) |
| Width | 3.25" (82.55 mm) |
| Depth | 4.80" (121.92 mm) |
| Weight (Approximate) | 2 lb (907.18 g) |
Miscellaneous
| Package Contents | |
| Application/Usage |
|
| Additional Information | (1) Port 10/100/1000Base-T (RJ-45) [100 m/328 ft.] to (2) Ports 100/1000Base-X SFP Slot (empty) |
| Certifications & Standards | EN55022 Class A, EN55024, FCC Class A, CE Mark Safety: Wall Mounted Power Supply: UL Listed, UL60950 and CSA Certified |
| Environmentally Friendly | Yes |
| Environmental Compliance |
|
| TAA Compliant | Yes |
| NDAA Compliant | Yes |
| Condition | No |
| UPC | 783384249165 |
Warranty
| Limited Warranty | Lifetime |
