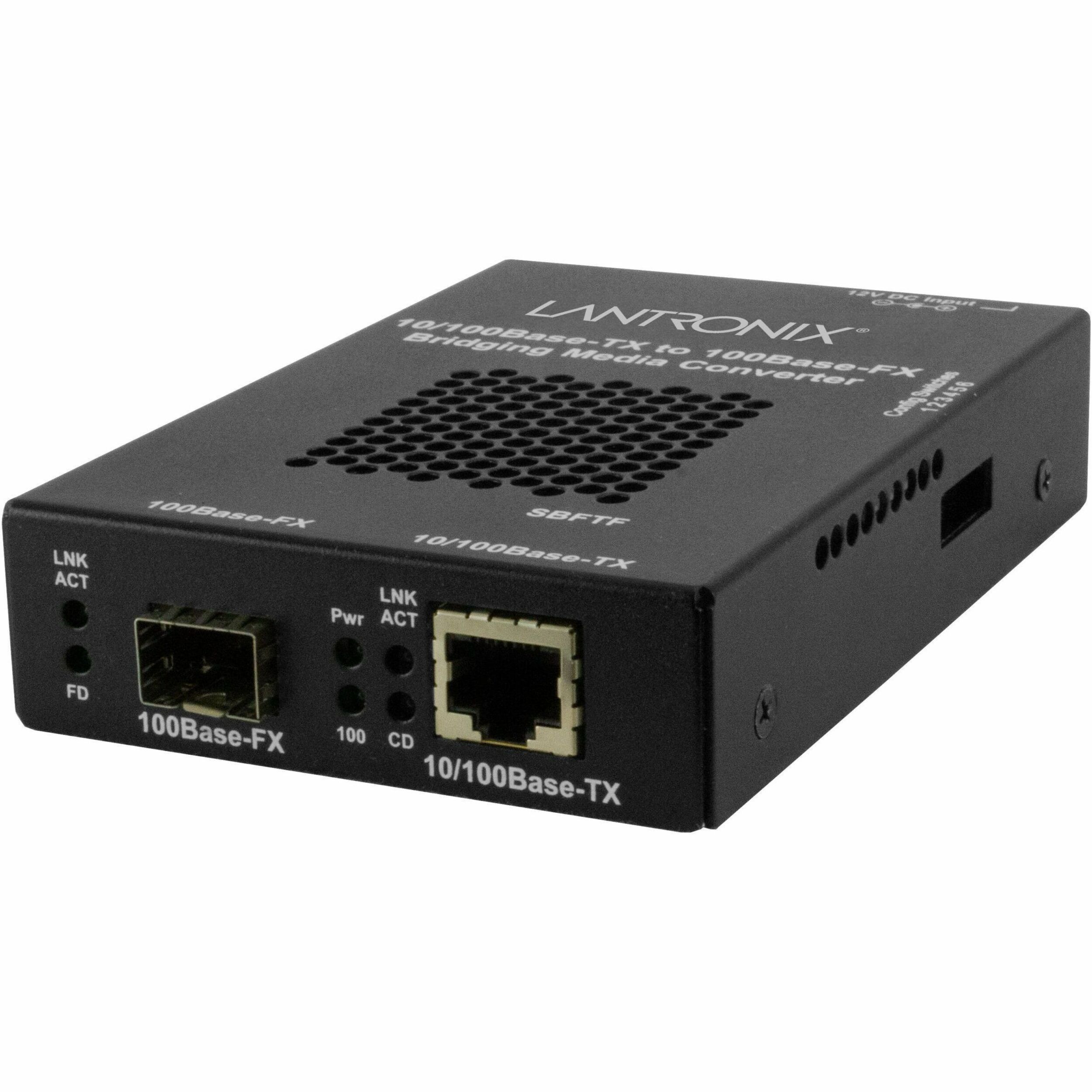

Lantronix SBFTF1040-105 Transceiver/Media Converter
1 x Network (RJ-45) - Fast Ethernet - 10/100Base-TX, 100Base-X - 100 Mbit/s - 0.10 km (0.06 Mile) - 1 x Expansion Slots - SFP - 1 x SFP Slots - AC/DC - Wall Mountable, DIN Rail Mountable, Rack-mountable, Standalone, Shelf Mount
$298.99
On back-order, will ship once in-stock
- All Locations: (0+)
General Information
| Manufacturer | Lantronix, Inc |
| Manufacturer Part Number | SBFTF1040-105-NA |
| Brand Name | Lantronix |
| Product Series | SBFTF |
| Product Model | SBFTF1040-105 |
| Product Name | SBFTF1040-105 Transceiver/Media Converter |
| Marketing Information | Stand-alone Fast Ethernet Media and Rate Converter 10/100Base-TX to 100Base-FX The SBFTF Series is a that provides an interface between 10/100Base-TX ports and 100Base-FX ports, allowing users to integrate fiber optic cabling into 10/100 copper environments. Operating at Layer 2, the data link layer, this converter not only converts copper to fiber, it also provides rate conversion allowing legacy 10Base-T copper devices to connect to 100Base-FX fiber. |
| Product Type | Transceiver/Media Converter |
Interfaces/Ports
| Total Number of Ports | 1 |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 1 |
Media & Performance
| Media Type Supported |
|
| Maximum Data Transfer Rate | 100 Mbit/s |
| Maximum Distance Supported | 0.10 km (0.06 Mile) |
I/O Expansions
| Total Number of Expansion Slots | 1 |
| Expansion Slot Type | SFP |
| Number of SFP Slots | 1 |
Network & Communication
| Ethernet Technology | Fast Ethernet |
| Network Technology |
|
Power Description
| Power Source | AC/DC |
| Input Voltage | 12 V DC |
Physical Characteristics
| Form Factor |
|
| Height | 1" (25.40 mm) |
| Width | 3.25" (82.55 mm) |
| Depth | 4.80" (121.92 mm) |
| Weight (Approximate) | 2 lb (907.18 g) |
Miscellaneous
| Package Contents | |
| Application/Usage |
|
| Additional Information | 10/100Base-TX (RJ-45) [100 m/328 ft.] to 100Base-X SFP Slot (empty) |
| Certifications & Standards | Safety: Wall Mount Power Supply: UL Listed; FCC Class A, VCCI Class 1, CISPR22/EN55022 Class A, EN55024, EN61000, CE Mark |
| Environmentally Friendly | Yes |
| Environmental Compliance |
|
| TAA Compliant | Yes |
| NDAA Compliant | Yes |
| Condition | No |
Warranty
| Limited Warranty | Lifetime |
