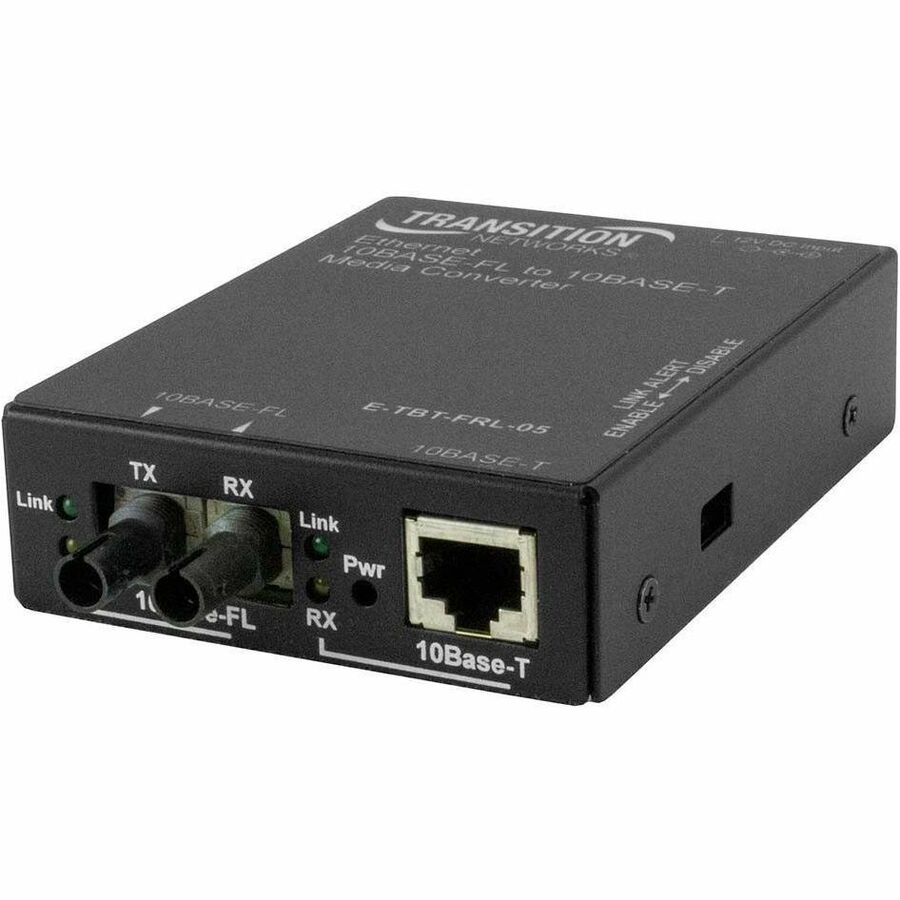

Lantronix E-TBT-FRL-05(L) Transceiver/Media Converter

1 x Network (RJ-45) - 1 x ST Ports - Multi-mode - 1300 nm Fiber - Ethernet - 10Base-T, 10Base-FL - 10 Mbit/s - 5 km (3.11 Mile) - AC/DC - Wall Mountable, DIN Rail Mountable, Rack-mountable, Standalone, Shelf Mount

Part No. E-TBT-FRL-05(L)-NA

by Lantronix, Inc

$732.99

Specifications
Options & Accessories (4)

General Information

Manufacturer	Lantronix, Inc
Manufacturer Part Number	ETBTFRL05LNA
Brand Name	Lantronix
Product Series	E-TBT-FRL-05
Product Model	E-TBT-FRL-05(L)
Product Name	E-TBT-FRL-05(L) Transceiver/Media Converter
Marketing Information	Stand-alone Ethernet Media Converter 10Base-T to 10Base-FL The E-TBT-FRL-05 is a stand-alone media converter that provides an interface between 10Base-T ports and 10Base-FL ports, allowing users to integrate fiber optic cabling into 10Base-T copper environments. Operating at Layer 1, the physical layer, data is passed through the converter at line speed, making it ideal for applications where low latency is essential.
Product Type	Transceiver/Media Converter

Interfaces/Ports

Total Number of Ports	2
Network (RJ-45)	Yes
Number of Network (RJ-45) Ports	1
Number of ST Ports	1

Media & Performance

Media Type Supported	Optical Fiber Twisted Pair
Fiber Mode Supported	Multi-mode
Fiber Optic Cable Wavelength	1300 nm
Maximum Data Transfer Rate	10 Mbit/s
Maximum Distance Supported	5 km (3.11 Mile)

Network & Communication

Ethernet Technology	Ethernet
Network Technology	10Base-T 10Base-FL

Power Description

Power Source	AC/DC
Input Voltage	12 V DC

Physical Characteristics

Form Factor	Wall Mountable DIN Rail Mountable Rack-mountable Standalone Shelf Mount
Height	1" (25.40 mm)
Width	3" (76.20 mm)
Depth	3.90" (99.06 mm)
Weight (Approximate)	2 lb (907.18 g)

Miscellaneous

Package Contents	E-TBT-FRL-05(L) Transceiver/Media Converter Power Supply - North America
Application/Usage	Data Network
Additional Information	10Base-T (RJ-45) [100 m/328 ft.] to 10Base-FL 1300nm multimode (ST) [5 km/3.1 mi.] Link Budget: 13.5 dB
Certifications & Standards	Safety: Wall Mount Power Supply: UL Listed, cUL Listed (Canada) Regulatory: FCC Class A, CISPR22/ EN55022 Class A, EN55024, EN61000, CE Mark
Environmentally Friendly	Yes
Environmental Compliance	Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) Restriction of Hazardous Substances (RoHS) Waste Electrical and Electronic Equipment Directive (WEEE)
NDAA Compliant	Yes
Condition	No
