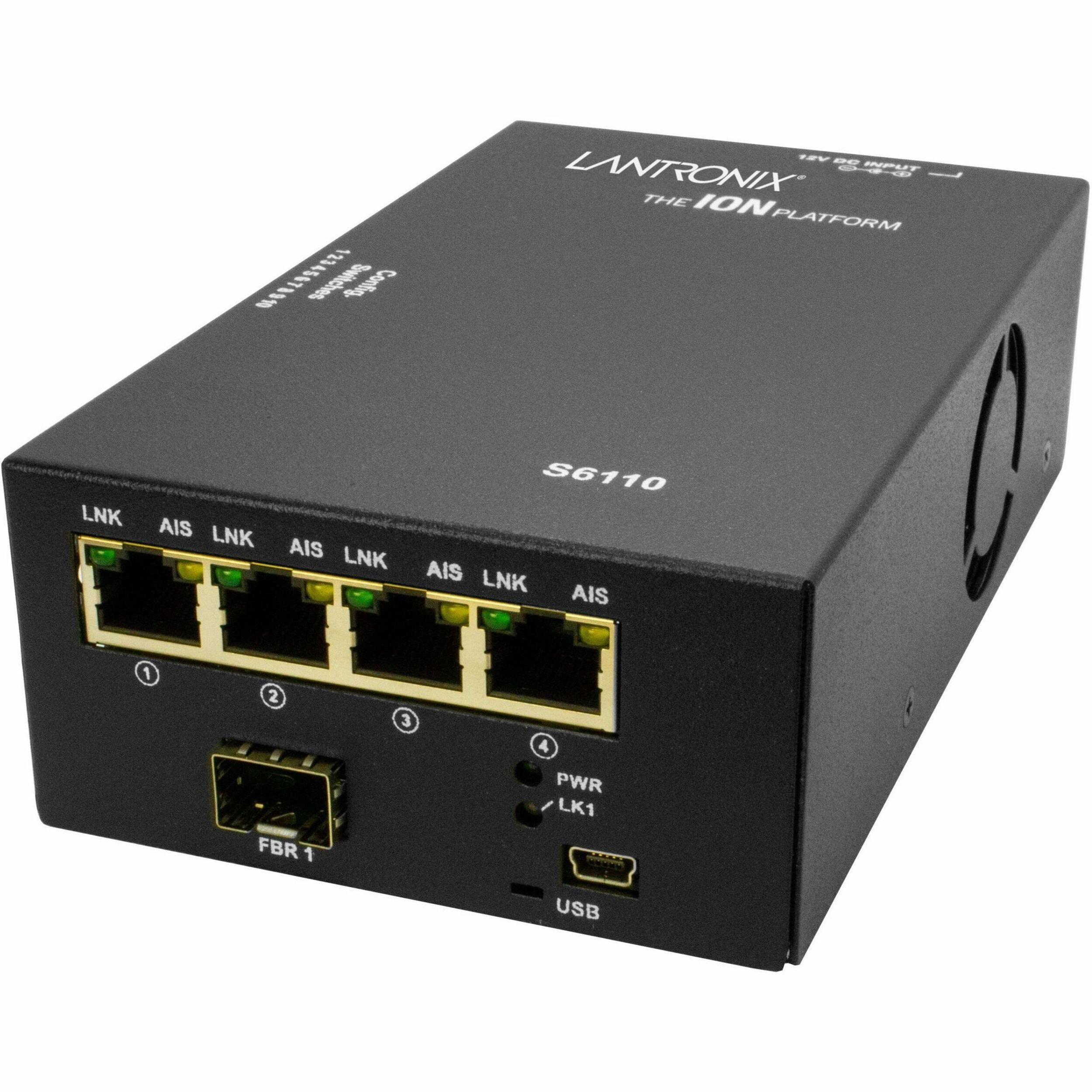

Transition Networks S6110-1040 Transceiver/Media Converter
On back-order, will ship once in-stock
- All Locations: (0+)
| Manufacturer | Lantronix, Inc |
| Manufacturer Part Number | S6110-1040-UK |
| Brand Name | Transition Networks |
| Product Line | ION |
| Product Model | S6110-1040 |
| Product Name | S6110-1040 Transceiver/Media Converter |
| Marketing Information | Stand-alone DS1 - T1/E1/J1 Network Interface Device 4 x DS1 - T1/E1/J1 over Fiber The ION S6110 is a managed stand-alone DS1 - T1/E1/J1 media converter mux that provides a solution for those users that need to extend multiple DS1 - T1/E1/J1 connections over fiber. The S6110 includes (4) RJ-48 ports and (1) fiber port. The device offers support for a variety of fiber types, distances, and wavelengths to provide maximum flexibility across a variety of network topologies. CWDM SFPs can also be utilized to further increase the bandwidth capacity of the fiber infrastructure. The S6110 converter must be used in pairs. Management of the stand-alone converter is supported, in-band, over the fiber, when the remote S6110 is linked to a C6110 card installed in a managed ION chassis. |
| Product Type | Transceiver/Media Converter |
| Total Number of Ports | 4 |
| Number of RJ-48 Ports | 4 |
| Media Type Supported |
|
| Maximum Distance Supported | 1.50 km (0.93 Mile) |
| Total Number of Expansion Slots | 1 |
| Expansion Slot Type | SFP |
| Number of SFP Slots | 1 |
| Carrier Supported | T-carrier/E-carrier/J-carrier |
| Network Technology |
|
| Power Source | Power Supply |
| Input Voltage | 12 V DC |
| Power Consumption | 6 W |
| Form Factor |
|
| Height | 1.80" (45.72 mm) |
| Width | 3.70" (93.98 mm) |
| Depth | 6.50" (165.10 mm) |
| Weight (Approximate) | 2 lb (907.18 g) |
| Package Contents | |
| Application/Usage |
|
| Additional Information | 1 *SFP port (Empty) to (4) RJ-48 [1.5 km/0.9 mi.] |
| Certifications & Standards | EN55022 Class A, EN55024, CE mark |
| Environmentally Friendly | Yes |
| Environmental Compliance |
|
| TAA Compliant | Yes |
| NDAA Compliant | Yes |
| Condition | No |
| UPC | 783384247321 |
| Limited Warranty | Lifetime |
