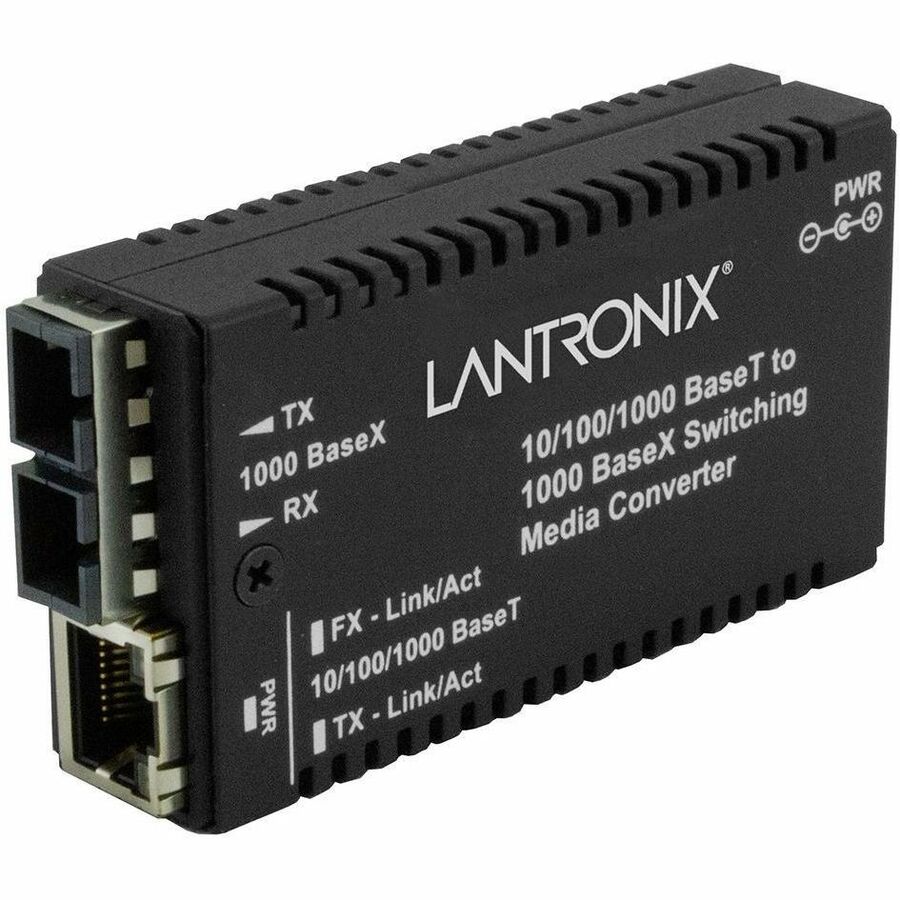

Lantronix M/GE-PSW-LX-01 Transceiver/Media Converter
1 x Network (RJ-45) - 1 x SC Ports - Single-mode - 1310 nm Fiber - Gigabit Ethernet - 1000Base-LX, 10/100/1000Base-T - 1000 Mbit/s - 10 km (6.21 Mile) - AC Adapter - Wall Mountable, DIN Rail Mountable, Rack-mountable, Standalone
$598.99
On back-order, will ship once in-stock
- All Locations: (0+)
General Information
| Manufacturer | Lantronix, Inc |
| Manufacturer Part Number | M/GE-PSW-LX-01-SA |
| Brand Name | Lantronix |
| Product Series | M/GE-PSW |
| Product Model | M/GE-PSW-LX-01 |
| Product Name | M/GE-PSW-LX-01 Transceiver/Media Converter |
| Marketing Information | Mini Gigabit Ethernet Media Converter 10/100/1000Base-T to 1000Base-SX/LX The M/GE-PSW Series is a Gigabit Ethernet stand-alone Mini media converter that provides cost effective media conversion between 10/100/1000Base-T ports and 1000Base-SX/LX ports. With its fixed configuration, deployments are just plug-and-play, and its small size makes it ideal for locations where space is limited. Operating at Layer 2, the data link layer, this converter not only converts copper to fiber, it also provides rate conversion allowing legacy 10/100 copper devices to connect to 1000Base-SX/LX fiber. |
| Product Type | Transceiver/Media Converter |
Interfaces/Ports
| Total Number of Ports | 2 |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Number of SC Ports | 1 |
Media & Performance
| Media Type Supported |
|
| Fiber Mode Supported | Single-mode |
| Fiber Optic Cable Wavelength | 1310 nm |
| Maximum Data Transfer Rate | 1000 Mbit/s |
| Maximum Distance Supported | 10 km (6.21 Mile) |
Network & Communication
| Ethernet Technology | Gigabit Ethernet |
| Network Technology |
|
Power Description
| Power Source | AC Adapter |
| Input Voltage | 12 V DC |
| Power Consumption | 3.15 W |
Physical Characteristics
| Form Factor |
|
| Height | 0.85" (21.59 mm) |
| Width | 1.80" (45.72 mm) |
| Depth | 3.30" (83.82 mm) |
| Weight (Approximate) | 2 lb (907.18 g) |
Miscellaneous
| Package Contents | |
| Application/Usage |
|
| Additional Information | 10/100/1000Base-T (RJ-45) [100 m/328 ft.] to 1000Base-LX 1310nm single mode (SC) [10 km/6.2 mi.] Link Budget: 10.5 dB |
| Certifications & Standards | Safety: Wall Mount Power Supply, UL Listed, cUL Listed (Canada) FCC Class A, CISPR22/EN55022 Class A, EN55024, CE Mark |
| Environmentally Friendly | Yes |
| Environmental Compliance |
|
| TAA Compliant | Yes |
| NDAA Compliant | Yes |
| Condition | No |
| UPC | 648177048427 |
Warranty
| Limited Warranty | Lifetime |
