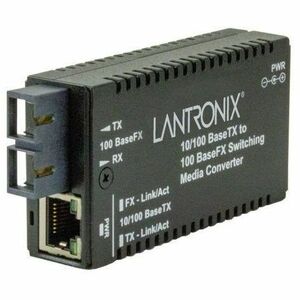

Lantronix M/E-PSW-FX-02(SM) Transceiver/Media Converter

1 x Network (RJ-45) - 1 x SC Ports - Single-mode - 1310 nm Fiber - Fast Ethernet - 10/100Base-TX, 100Base-FX - 100 Mbit/s - 20 km (12.43 Mile) - AC/DC - Standalone, Rack-mountable, Wall Mountable, DIN Rail Mountable

Part No. M/E-PSW-FX-02(SM)-OZ

by Lantronix, Inc

$311.99

Specifications
Options & Accessories (1)

General Information

Manufacturer	Lantronix, Inc
Manufacturer Part Number	M/E-PSW-FX-02(SM)-OZ
Brand Name	Lantronix
Product Series	M/E-PSW
Product Model	M/E-PSW-FX-02(SM)
Product Name	M/E-PSW-FX-02(SM) Transceiver/Media Converter
Marketing Information	Mini Fast Ethernet Media Converter 10/100Base-TX to 100Base-FX The M/E-PSW Series is a Fast Ethernet stand-alone Mini media converter that provides cost effective media conversion between 10/100Base-TX ports and 100Base-FX ports. With its fixed configuration, deployments are just plug-and-play, and its small size makes it ideal for locations where space is limited. Operating at Layer 2, the data link layer, this converter not only converts copper to fiber, it also provides rate conversion allowing legacy 10Base-T copper devices to connect to 100Base-FX fiber.
Product Type	Transceiver/Media Converter

Interfaces/Ports

Total Number of Ports	2
Network (RJ-45)	Yes
Number of Network (RJ-45) Ports	1
Number of SC Ports	1

Media & Performance

Media Type Supported	Optical Fiber Twisted Pair
Fiber Mode Supported	Single-mode
Fiber Optic Cable Wavelength	1310 nm
Maximum Data Transfer Rate	100 Mbit/s
Maximum Distance Supported	20 km (12.43 Mile)

Network & Communication

Ethernet Technology	Fast Ethernet
Network Technology	10/100Base-TX 100Base-FX

Power Description

Power Source	AC/DC
Input Voltage	7.5 V DC 13.9 V DC
Power Consumption	2.60 W

Physical Characteristics

Form Factor	Standalone Rack-mountable Wall Mountable DIN Rail Mountable
Height	0.85" (21.59 mm)
Width	1.80" (45.72 mm)
Depth	3.30" (83.82 mm)
Weight (Approximate)	2 lb (907.18 g)

Miscellaneous

Package Contents	M/E-PSW-FX-02(SM) Transceiver/Media Converter DIN Rail Clip and Velcro Power Supply - Australia
Application/Usage	Network Data
Additional Information	10/100Base-TX (RJ-45) [100 m/328 ft.] to 100Base-FX 1310nm single mode (SC)[20 km/12.4 mi.] Link Budget: 16.0 dB
Certifications & Standards	Safety: Wall Mount Power Supply: UL Listed, cUL Listed (Canada) FCC Class A, CISPR22/EN55022 Class A, EN55024, CE Mark
Environmentally Friendly	Yes
Environmental Compliance	Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) Restriction of Hazardous Substances (RoHS) Waste Electrical and Electronic Equipment Directive (WEEE)
TAA Compliant	Yes
NDAA Compliant	Yes
Condition	No
UPC	648177048007

Warranty

Limited Warranty	Lifetime
