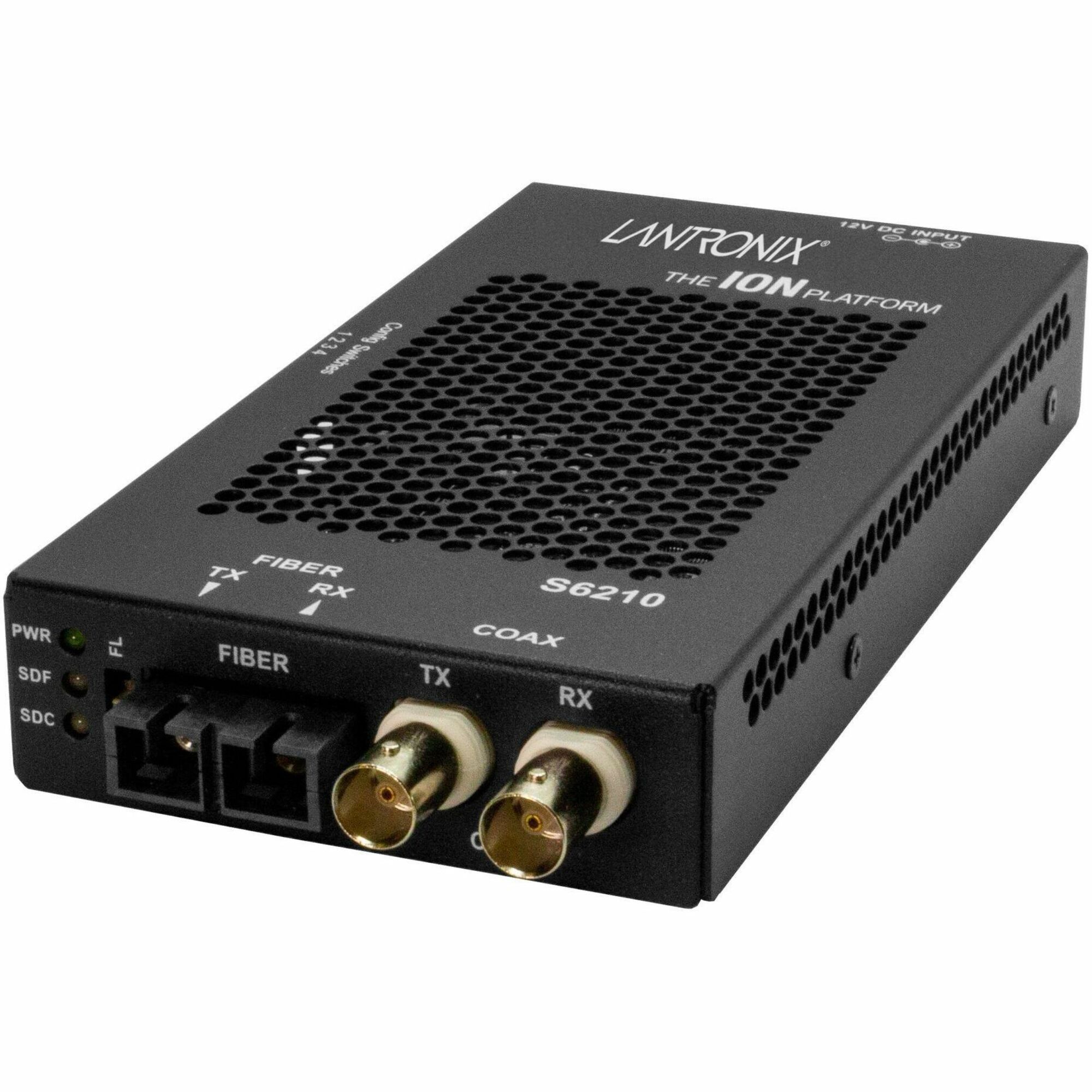

Transition Networks S6210-3014 Transceiver/Media Converter
On back-order, will ship once in-stock
- All Locations: (0+)
| Manufacturer | Lantronix, Inc |
| Manufacturer Part Number | S6210-3014-SA |
| Brand Name | Transition Networks |
| Product Line | ION |
| Product Series | S6210 |
| Product Model | S6210-3014 |
| Product Name | S6210-3014 Transceiver/Media Converter |
| Marketing Information | Stand-alone DS3-T3/E3 Network Interface Device DS3 - T3/E3 Coax over Fiber The ION S6210 is a managed stand-alone media converter that provides a solution for those users that need to extend DS3-T3/E3 connections over fiber. The S6210 is available in versions that support fixed fiber connectors as well as SFP fiber modules offering support for a variety of fiber types, distances, and wavelengths to provide maximum flexibility across a variety of network topologies. CWDM SFPs can also be utilized to further increase the bandwidth capacity of the fiber infrastructure. The S6210 DS3-T3/E3 converters must be used in pairs. Management of the stand-alone converter is supported, in-band, over the fiber, when the remote S6210 is linked to a C6210 card installed in a managed ION chassis. |
| Product Type | Transceiver/Media Converter |
| Total Number of Ports | 3 |
| Number of SC Ports | 1 |
| Number of BNC Ports | 2 |
| Media Type Supported |
|
| Fiber Mode Supported | Single-mode |
| Fiber Optic Cable Wavelength | 1310 nm |
| Maximum Data Transfer Rate | 44.70 Mbit/s |
| Maximum Distance Supported | 20 km (12.43 Mile) |
| Power Source | Power Supply |
| Input Voltage |
|
| Power Consumption | 2.40 W |
| Form Factor |
|
| Height | 1" (25.40 mm) |
| Width | 3.50" (88.90 mm) |
| Depth | 6.50" (165.10 mm) |
| Weight (Approximate) | 2 lb (907.18 g) |
| Package Contents | |
| Application/Usage |
|
| Additional Information | (2) Coax (BNC) to 1310nm single mode (SC)[20 km/12.4 mi.] Link Budget: 16.0 dB |
| Certifications & Standards | CISPR/EN55022 Class A, FCC Class A, CE Mark, UL60950 |
| Environmentally Friendly | Yes |
| Environmental Compliance |
|
| TAA Compliant | Yes |
| NDAA Compliant | Yes |
| Condition | No |
| UPC | 783384247673 |
| Limited Warranty | Lifetime |
