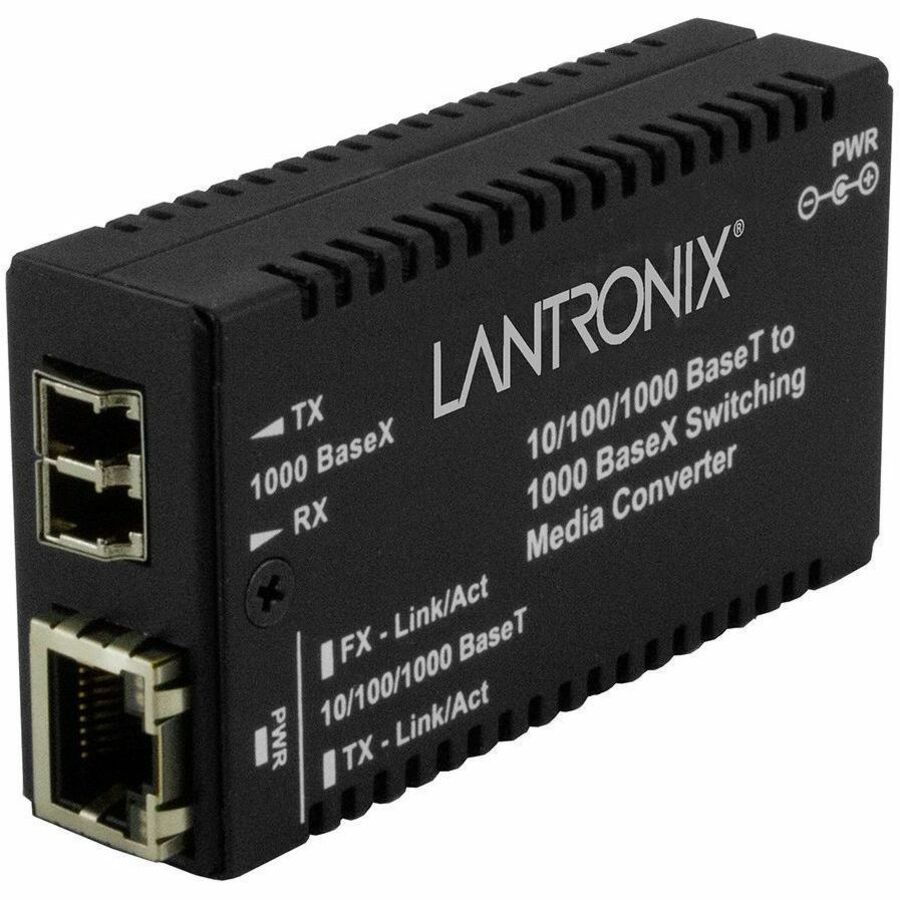

Lantronix M/GE-PSW-SX-01(LC) Transceiver/Media Converter

1 x Network (RJ-45) - 1 x LC Ports - Multi-mode - 850 nm Fiber - Gigabit Ethernet - 10/100/1000Base-T, 1000Base-SX - 1000 Mbit/s - 0.55 km (0.34 Mile) - AC Adapter - Wall Mountable, DIN Rail Mountable, Rack-mountable, Standalone

Part No. M/GE-PSW-SX-01(LC)-JP

by Lantronix, Inc

$488.99

Specifications
Options & Accessories (2)

General Information

Manufacturer	Lantronix, Inc
Manufacturer Part Number	M/GE-PSW-SX-01(LC)-JP
Brand Name	Lantronix
Product Series	M/GE-PSW
Product Model	M/GE-PSW-SX-01(LC)
Product Name	M/GE-PSW-SX-01(LC) Transceiver/Media Converter
Marketing Information	Mini Gigabit Ethernet Media Converter 10/100/1000Base-T to 1000Base-SX/LX The M/GE-PSW Series is a Gigabit Ethernet stand-alone Mini media converter that provides cost effective media conversion between 10/100/1000Base-T ports and 1000Base-SX/LX ports. With its fixed configuration, deployments are just plug-and-play, and its small size makes it ideal for locations where space is limited. Operating at Layer 2, the data link layer, this converter not only converts copper to fiber, it also provides rate conversion allowing legacy 10/100 copper devices to connect to 1000Base-SX/LX fiber.
Product Type	Transceiver/Media Converter

Interfaces/Ports

Total Number of Ports	2
Network (RJ-45)	Yes
Number of LC Ports	1
Number of Network (RJ-45) Ports	1

Media & Performance

Media Type Supported	Optical Fiber Twisted Pair
Fiber Mode Supported	Multi-mode
Fiber Optic Cable Wavelength	850 nm
Maximum Data Transfer Rate	1000 Mbit/s
Maximum Distance Supported	0.55 km (0.34 Mile)
Fiber Optic Cable Core/Cladding Specification	62.5/125 µm 50/125 µm

Network & Communication

Ethernet Technology	Gigabit Ethernet
Network Technology	10/100/1000Base-T 1000Base-SX

Power Description

Power Source	AC Adapter
Input Voltage	12 V DC
Power Consumption	3.15 W

Physical Characteristics

Form Factor	Wall Mountable DIN Rail Mountable Rack-mountable Standalone
Height	0.85" (21.59 mm)
Width	1.80" (45.72 mm)
Depth	3.30" (83.82 mm)
Weight (Approximate)	2 lb (907.18 g)

Miscellaneous

Package Contents	M/GE-PSW-SX-01(LC) Transceiver/Media Converter Power Supply - Japan
Application/Usage	Data Network
Additional Information	10/100/1000Base-T (RJ-45) [100 m/328 ft.] to 1000Base-SX 850nm multimode (LC) [62.5/125 µm fiber: 220 m/722 ft.] Link Budget: 7.0 dB [50/125 µm fiber: 550m/1804 ft.] Link Budget: 7.0 dB
Certifications & Standards	Safety: Wall Mount Power Supply, UL Listed, cUL Listed (Canada) FCC Class A, CISPR22/EN55022 Class A, EN55024, CE Mark
Environmentally Friendly	Yes
Environmental Compliance	Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) Restriction of Hazardous Substances (RoHS) Waste Electrical and Electronic Equipment Directive (WEEE)
TAA Compliant	Yes
NDAA Compliant	Yes
Condition	No
UPC	648177048847

Warranty

Limited Warranty	Lifetime
