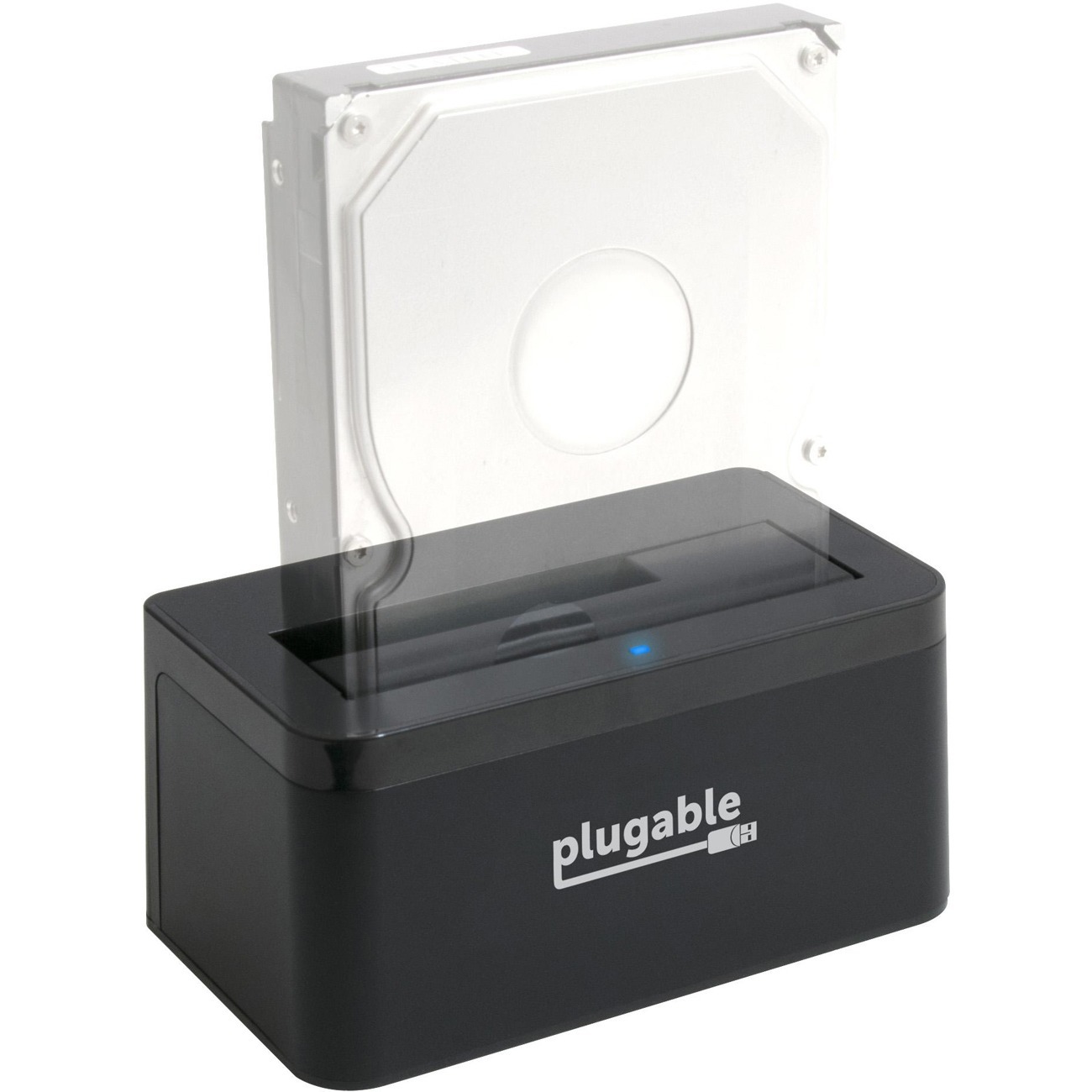

Plugable USB 3.1 Gen 2 10Gbps SATA Upright Hard Drive Dock and SSD Dock (includes both USB-C and USB 3.0 cables, supports 10TB+ drives).
1 x HDD Supported - 8 TB Total HDD Capacity Supported - 1 x SSD Supported - 8 TB Total SSD Capacity Supported - 1 x Total Bay - 1 x 2.5"/3.5" Bay
$109.99
In Stock Availability
- All Locations: (7+)
- Toronto, ON (7+)
General Information
| Manufacturer | Plugable Technologies |
| Manufacturer Part Number | USBC-SATA-V |
| Brand Name | Plugable |
| Product Model | USBC-SATA-V |
| Product Name | USB 3.1 Gen 2 10Gbps SATA Upright Hard Drive Dock and SSD Dock |
| Marketing Information | Performance Features future-proof USB 3.1 Gen 2, USB 3.0 and USB 2.0 connectivity with support for USB Type A and Type C host systems. Uses the ASMedia 1351E chipset and firmware with UASP and BOT support for maximum performance and features. Drive sleeps automatically on OS power events or 10 minutes of idle to conserve power and reduce heat. Form Factor Vertical design provides maximum cooling while taking up minimal space. Robust on/off toggle switch powers off dock when not in use. Blue LED reports drive activity. 12V3A power adapter provides power for even the largest enterprise SATA drives so you can attain top performance speeds during the entire file transfer. Compatibility Uses standard drivers in modern operating systems, so no additional drivers required. Compatible with Windows XP through 10, macOS, and Linux / Unix. Supports 12TB+ drives on 64-bit operating systems (32-bit Windows supports drives up to 2TB max). Connects to USB-C and Thunderbolt 3 ports with the provided USB-C cable, as well as legacy USB 2.0 and USB 3.0 hosts with the provided USB 3.0 cable. Supports all 2.5" and 3.5" SATA hard drives, solid state drives, and hybrid drives up to any volume size available on the market today (currently 12TB+). IDE/EIDE/PATA, SCSI, SAS, mSATA, and M.2 drives are not compatible. In the box USB-C to SATA Dock, 1m/3ft USB-C to USB-C Cable, 1m/3ft USB-A to USB-C Cable, AC 12V3A Power Adapter 100-240V 50/60Hz, Quick Start Guide |
| Packaged Quantity | 1 |
| Product Type | Drive Dock |
Technical Information
| Number of Hard Drives Supported | 1 |
| Number of Hard Drives Installed | 0 |
| Total Hard Drive Capacity Supported | 8 TB |
| Number of Solid State Drive Supported | 1 |
| Number of Solid State Drive Installed | 0 |
| Total Solid State Drive Capacity Supported | 8 TB |
I/O Expansions
| Number of Total Expansion Bays | 1 |
| Number of 2.5"/3.5" Bays | 1 |
Interfaces/Ports
| Drive Interface | SATA |
| Host Interface | USB 3.1 (Gen 2) Type C |
Power Description
| Input Voltage |
|
| Power Source | AC Adapter |
| Maximum Power Supply Wattage | 36 W |
Physical Characteristics
| Form Factor | External |
Miscellaneous
| Package Contents |
|
| Platform Supported |
|
| Country of Origin | China |
| Condition | No |
| UPC | 0819927010975 |
Warranty
| Limited Warranty | 1 Year |
