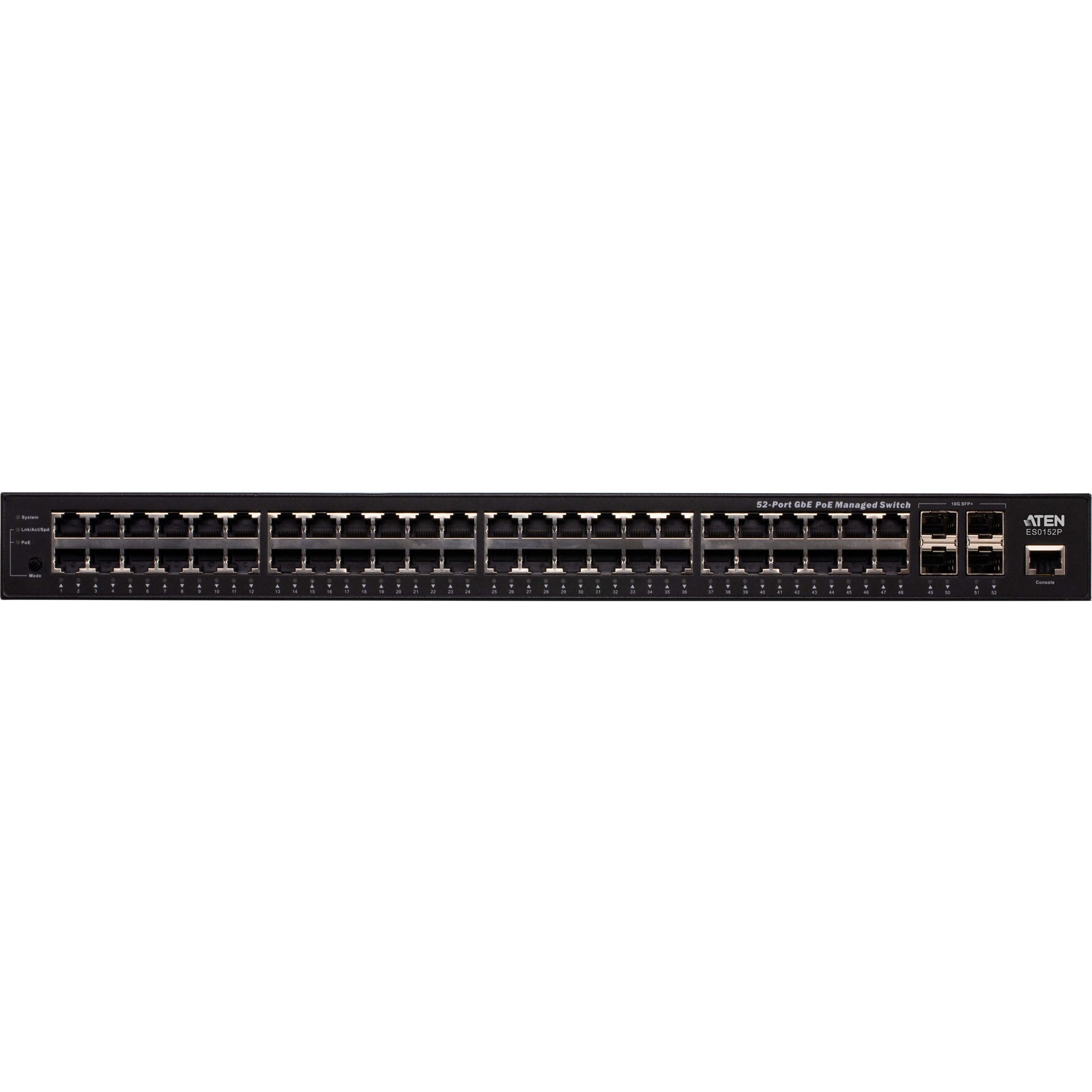

ATEN 52-Port GbE PoE Managed Switch

48 Ports - Manageable - Gigabit Ethernet, 10 Gigabit Ethernet - 10/100/1000Base-T, 10GBase-X - 3 Layer Supported - Modular - 885.36 W Power Consumption - 740 W PoE Budget - Optical Fiber, Twisted Pair - PoE Ports - Rack-mountable

Part No. ES0152P

by ATEN Technology, Inc

$3296.99

Specifications
Options & Accessories (4)

General Information

Manufacturer	ATEN Technology, Inc
Manufacturer Part Number	ES0152P
Brand Name	ATEN
Product Model	ES0152P
Product Name	52-Port GbE PoE Managed Switch
Marketing Information	The ES0152 / ES0152P is a feature-rich managed switch for ATEN KE series KVM over IP extenders and VE89 series Video over IP extenders. Ideal for installation in combination with the KE / VE89 series products, the ES0152 / ES0152P helps users build their OT infrastructure with the KE series by eliminating the hassles of complicated setup. Deploying the ES0152 / ES0152P is fast and easy. With everything plug and play, there is no need to install software or configure devices. Simply connect the KE / VE89 transmitters and receivers to the ES0152 / ES0152P using Cat 5e/6 cables and all KE / VE89 series devices on the same LAN will automatically be detected. The ES0152 / ES0152P network switch provides a 52-port, high-performance configuration, a complete array of L2 features and advanced functionalities including Layer 3 static route, DHCP server, IPv6 support and LLDP, delivering a versatile solution for improving network performance. Both the ES0152 and the ES0152P offer a combination of SFP+ (fiber) and RJ45 (copper) ports for servicing a range of network needs. The ES0152 delivers 4 (1G/10G) SFP+ and 48 (10M/100M/1G) RJ45 ports while the ES0152P supports 4 (1G/10G) SFP+ and 48 (10M/100M/1G) RJ45 with PoE+ (Support 802.3at/af) ports. Featuring Power over Ethernet (PoE) function, the ES0152P can provide up to 740 Watts power budget across 48 RJ45 ports thus eliminating the need for a power adapter and effectively reducing the power configuration cost. The ES0152 / ES0152P comes with embedded DMS functions to facilitate device management anytime and anywhere. Its intuitive, user-friendly interface enables IT administrators to set up and manage their networks and all the connected KE / VE89 devices effortlessly. It also has comprehensive security features such as IP source guard and ACL to guard your network from unauthorized access. With a full range of functions to help with optimizing network efficiency, manageability and reliability for their network environment, the ES0152 / ES0152P is an ideal network switch solution for SMBs and enterprises, and even more so for those that have chosen to adopt ATEN KE series KVM over IP extenders or VE89 series Video over IP extenders into their OT infrastructure.
Packaged Quantity	1
Product Type	Ethernet Switch

Interfaces/Ports

Total Number of Network Ports	48
Uplink Port	Yes
Modular	Yes
Network (RJ-45)	Yes
Port/Expansion Slot Details	48 x Gigabit PoE+ 4 x 10 Gigabit Ethernet Uplink

Media & Performance

Media Type Supported	Optical Fiber Twisted Pair
Ethernet Technology	Gigabit Ethernet 10 Gigabit Ethernet
Network Technology	10/100/1000Base-T 10GBase-X

I/O Expansions

Total Number of Expansion Slots	4.0
Expansion Slot Type	SFP+
Number of SFP+ Slots	4

Network & Communication

Layer Supported	3

Management & Protocols

Manageable	Yes

Power Description

PoE (RJ-45) Port	Yes
PoE Budget	740 W
Frequency	50 Hz 60 Hz
Power Source	Power Supply
Power Consumption	885.36 W

Physical Characteristics

Product Material	Metal
Form Factor	Rack-mountable
Height	1.73" (43.94 mm)
Width	17.40" (441.96 mm)
Depth	14.76" (374.90 mm)
Weight (Approximate)	12.35 lb (5600 g)

Miscellaneous

Package Contents	52-Port GbE PoE Managed Switch 1 x AC Power Cord 1 x RJ45 to DB9 Serial Console Cable 1 x Foot Pad Set (4 pcs.) 1 x Mounting Kit 1 x User Instructions
Condition	No
