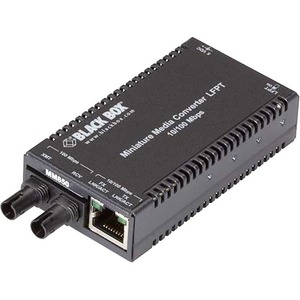

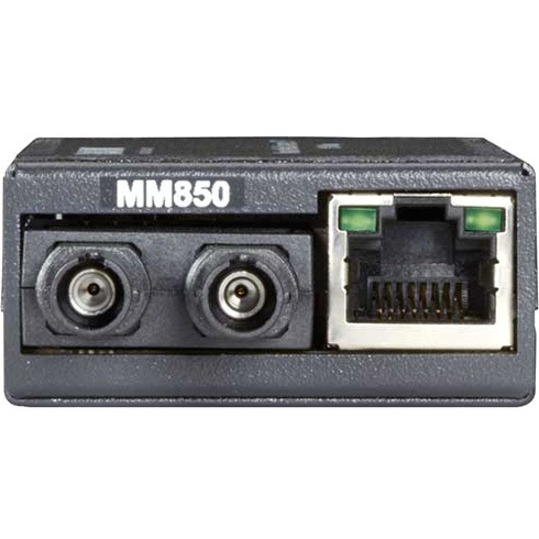

Black Box Multipower Miniature LHC040A-R3 Transceiver/Media Converter

1 x Network (RJ-45) - 1 x ST Ports - DuplexST Port - Multi-mode - 850 nm Fiber - Fast Ethernet - 10/100Base-T, 100Base-SX - 0.30 km (0.19 Mile) - Power Supply - Rail-mountable, Desktop

Part No. LHC040A-R3

by Black Box Corporation

$216.99

Specifications
Options & Accessories (3)

General Information

Manufacturer	Black Box Corporation
Manufacturer Part Number	LHC040A-R3
Brand Name	Black Box
Product Line	Multipower Miniature
Product Model	LHC040A-R3
Product Name	Multipower Miniature LHC040A-R3 Transceiver/Media Converter
Marketing Information	Autonegotiates for speed and duplex. A DIP switch enables Link Fault Pass-Through to be turned on and off for better troubleshooting. Powered by the included universal AC power supply, a PC's USB port (with optional USB Power Adapter Cable), or the optional rackmountable PowerTray. Auto MDI/MDI-X means you never need to worry about what kind of cable to use. BR> Bring fiber to the desktop more conveniently and at a lower cost than installing fiber NICs. Black Box Multipower Miniature Media Converters make it easy to bring fiber to the desktop. Just connect a Miniature Media Converter to your PC's copper port with a CAT5x cable, then connect a fiber cable to the converter's other side. That's all there is to it! Best of all, you can tuck these tiny converters unobtrusively behind your PC. The converter not only links 10- and 100-Mbps segments to fiber cabling, it also works as a data rate converter, performing 10/100 autonegotiation on the twisted-pair port. For extra versatility, you can power the Miniature Media Converter one of three ways: through the external AC power supply included with each converter, through the optional USB Power Adapter Cable (LHC021A), or through the optional rackmount PowerTray (LHC018A-AC-R2).
Product Type	Transceiver/Media Converter

Interfaces/Ports

Total Number of Ports	2
Network (RJ-45)	Yes
DVI	No
USB	No
Management Port	No
Number of Network (RJ-45) Ports	1
Number of ST Ports	1
ST Port Type	Duplex

Media & Performance

Media Type Supported	Optical Fiber Twisted Pair
Fiber Mode Supported	Multi-mode
Fiber Optic Cable Wavelength	850 nm
Maximum Distance Supported	0.30 km (0.19 Mile)
Fiber Optic Cable Core/Cladding Specification	50/125 µm 62.5/125 µm

Network & Communication

Ethernet Technology	Fast Ethernet
Network Technology	10/100Base-T 100Base-SX

Power Description

Power Source	Power Supply

Physical Characteristics

Form Factor	Rail-mountable Desktop
Height	0.80" (20.32 mm)
Width	1.80" (45.72 mm)
Depth	3.40" (86.36 mm)

Miscellaneous

Package Contents	Multipower Miniature LHC040A-R3 Transceiver/Media Converter Power Supply
Additional Information	The power supply included with this converter is not compatible with the earlier version of this product.Product works with: USB Power Adapter Cable (LHC021A) PowerTray (LHC018A-AC-R2) GigaBase® 350 CAT5e Patch Cable, 4-Pair, Straight-Pinned, PVC (EVNSL85, etc.) SFP, 155-Mbps Fiber with Extended Diagnostics, 850-nm Multimode, LC, 2 km (LFP401) SFP, 155-Mbps Fiber with Extended Diagnostics, 1310-nm Multimode, 2 km, LC (LFP402) SFP, 155-Mbps Fiber with Extended Diagnostics, 1310-nm Single-Mode, Plus, 30 km, LC (LFP403) SFP, 155-Mbps Fiber with Extended Diagnostics, 1310-nm Single-Mode, Plus, 60 km, LC (LFP404) The included power supply doesn't work with previous versions of this model (LHC301A). Questions? Contact our FREE Tech Support.
Environmentally Friendly	Yes
Country of Origin	United States
TAA Compliant	Yes
Condition	No
UPC	822088125631

Warranty

Limited Warranty	6 Year
